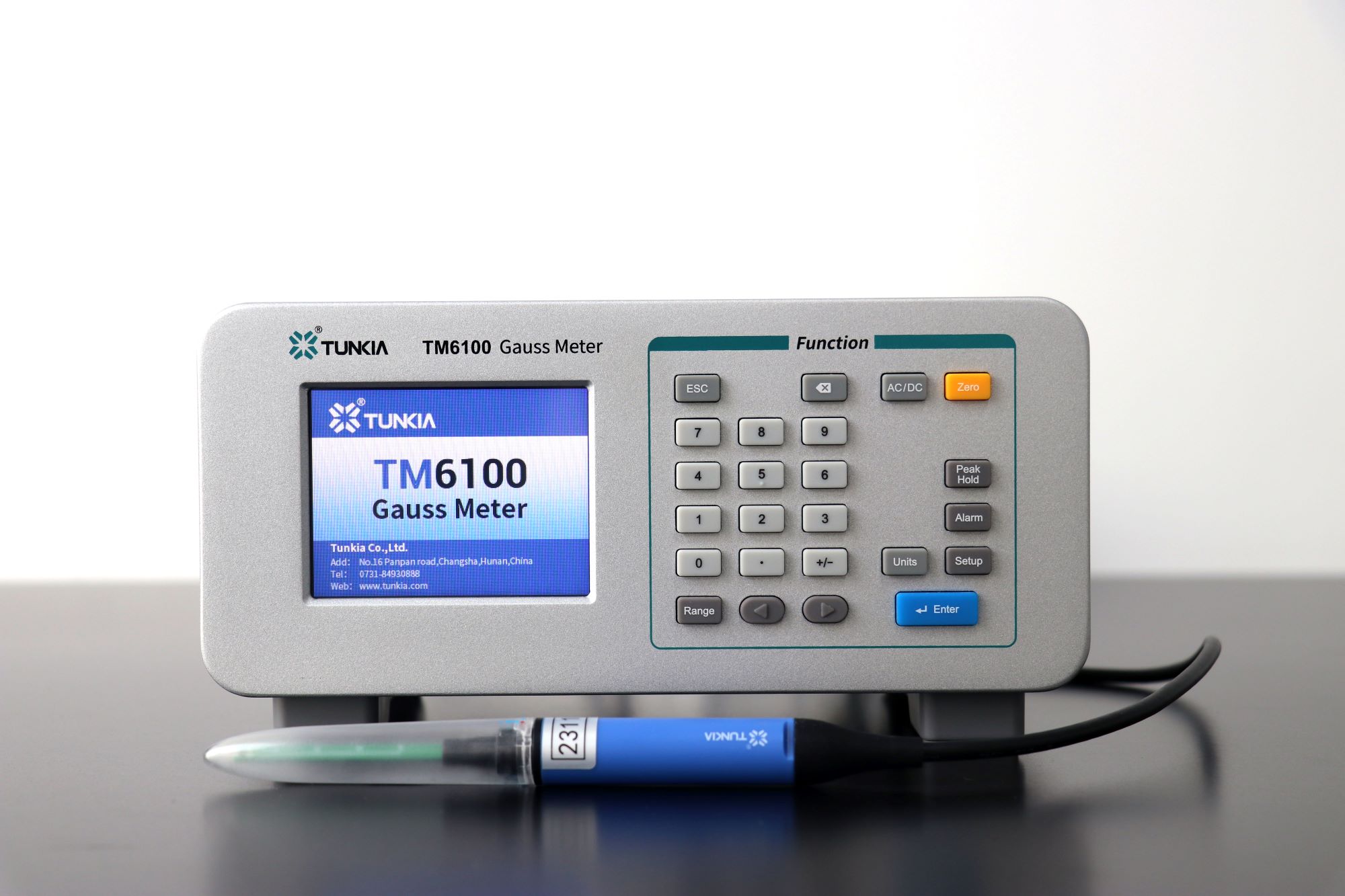

TM6100 Gauss Meter

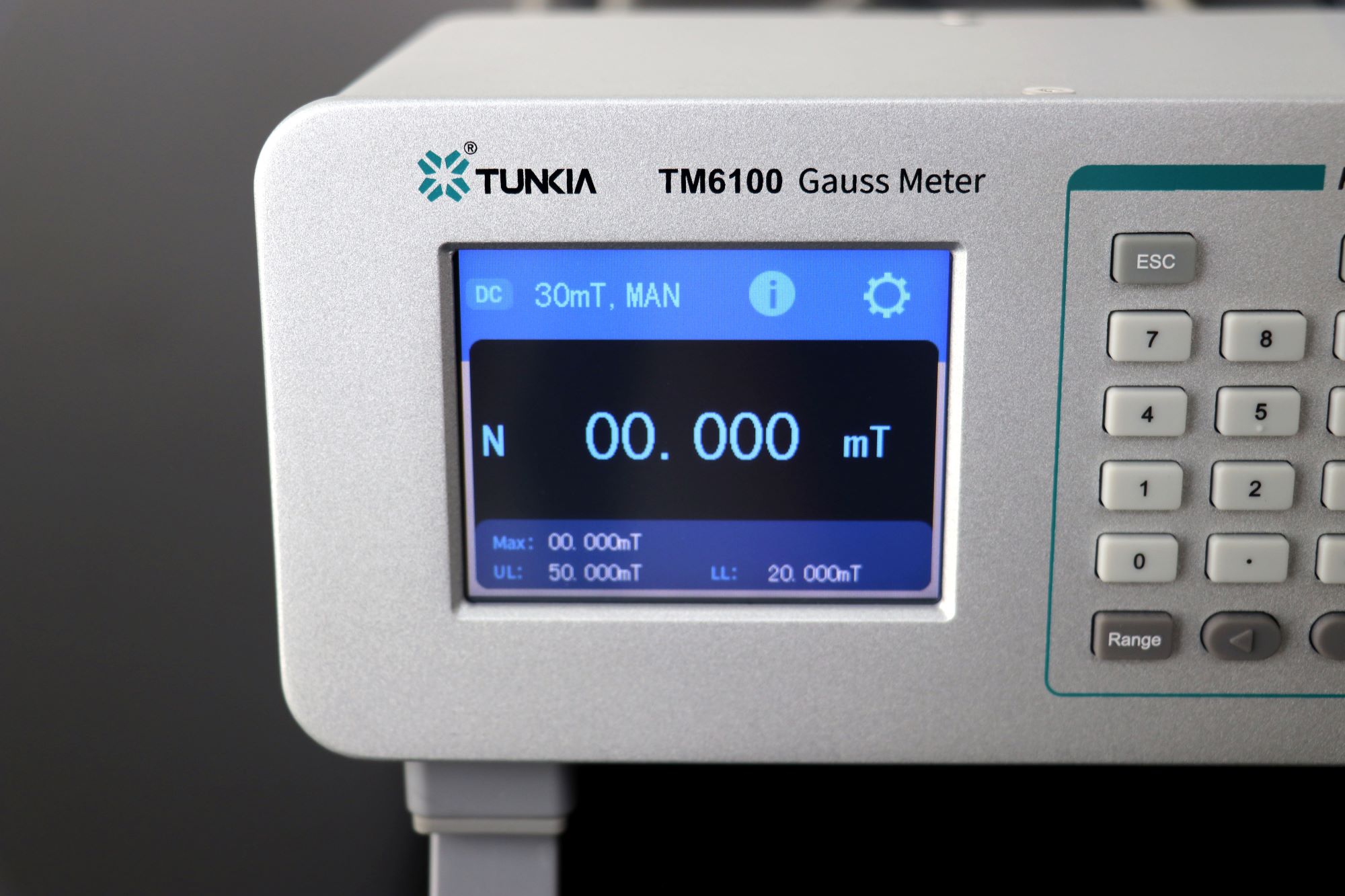

The TM6100 is a high-precision, multi-functional magnetic field measuring instrument equipped with a high-sensitivity, low-drift Hall sensor. It is applied for measuring the magnetic flux density value of a DC (constant) magnetic field or an alternating magnetic field (optional).

Features:	Accuracy: 0.2% or 0.5% Range: 2 mT ~ 3000 m T Unit switch: G, mT, A /m, Oe N/S and +/- polarity display
Availability:

Quantity:



Inquire Add to Basket

Model:
TM6100
Brand:
TUNKIA

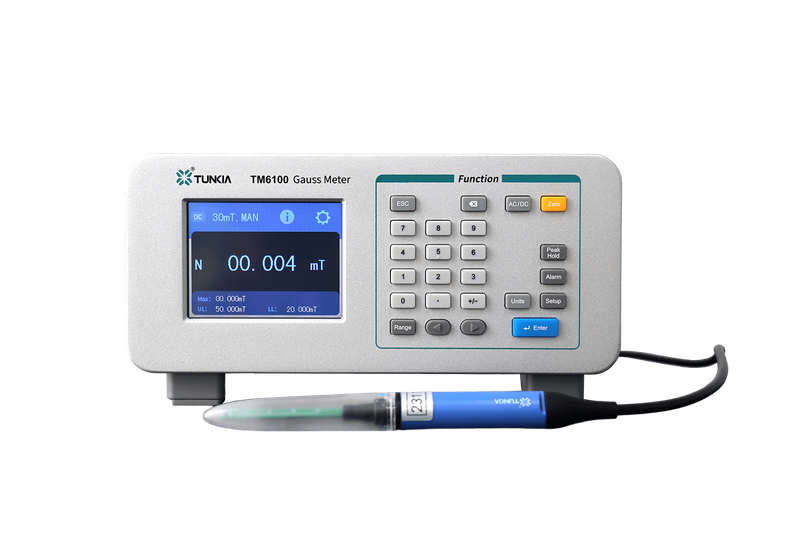

TM6100 Gauss-Meter

1 Summary

The TM6100 is a high-precision, multi-functional magnetic field measuring instrument equipped with a high-sensitivity, low-drift Hall sensor. It is applied for measuring the magnetic flux density value of a DC (constant) magnetic field or an alternating magnetic field (optional).

2. Features

• Range: 2 mT ~ 3000 m T.

• Accuracy: 0.2% or 0.5%.

• Optional AC measurement mode.

• Unit switch: G, mT, A /m, Oe.

• N/S and +/- polarity display.

• Alarm of exceeding the upper / lower limit.

• Max. hold function.

• One-key clear function.

• Measuring parameter correction.

• Radial and axial Hall probes are optional.

• Digital and analog signal output.

• Optional magnetic shielded cavity.

• Small size, light weight.

3. Application

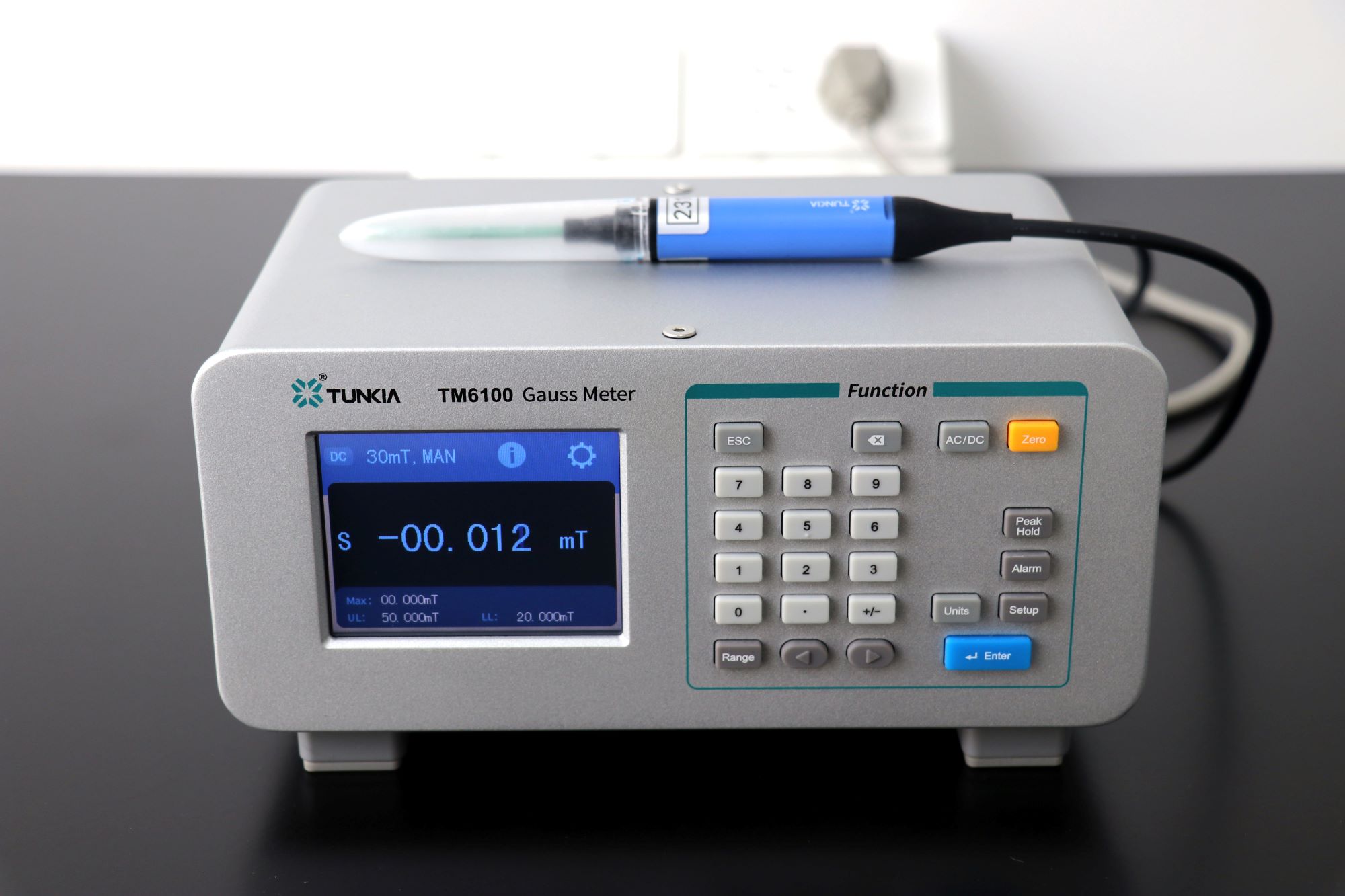

TM6100 Gauss-Meter

4. Features

☆ Optional Radial or Axial Hall Probe
Radial Hall Probe
Axial Hall Probe
• Standard configuration is Radial Hall probe, also can choose Axial Hall probe.

☆ Digital and Analog Signal Output

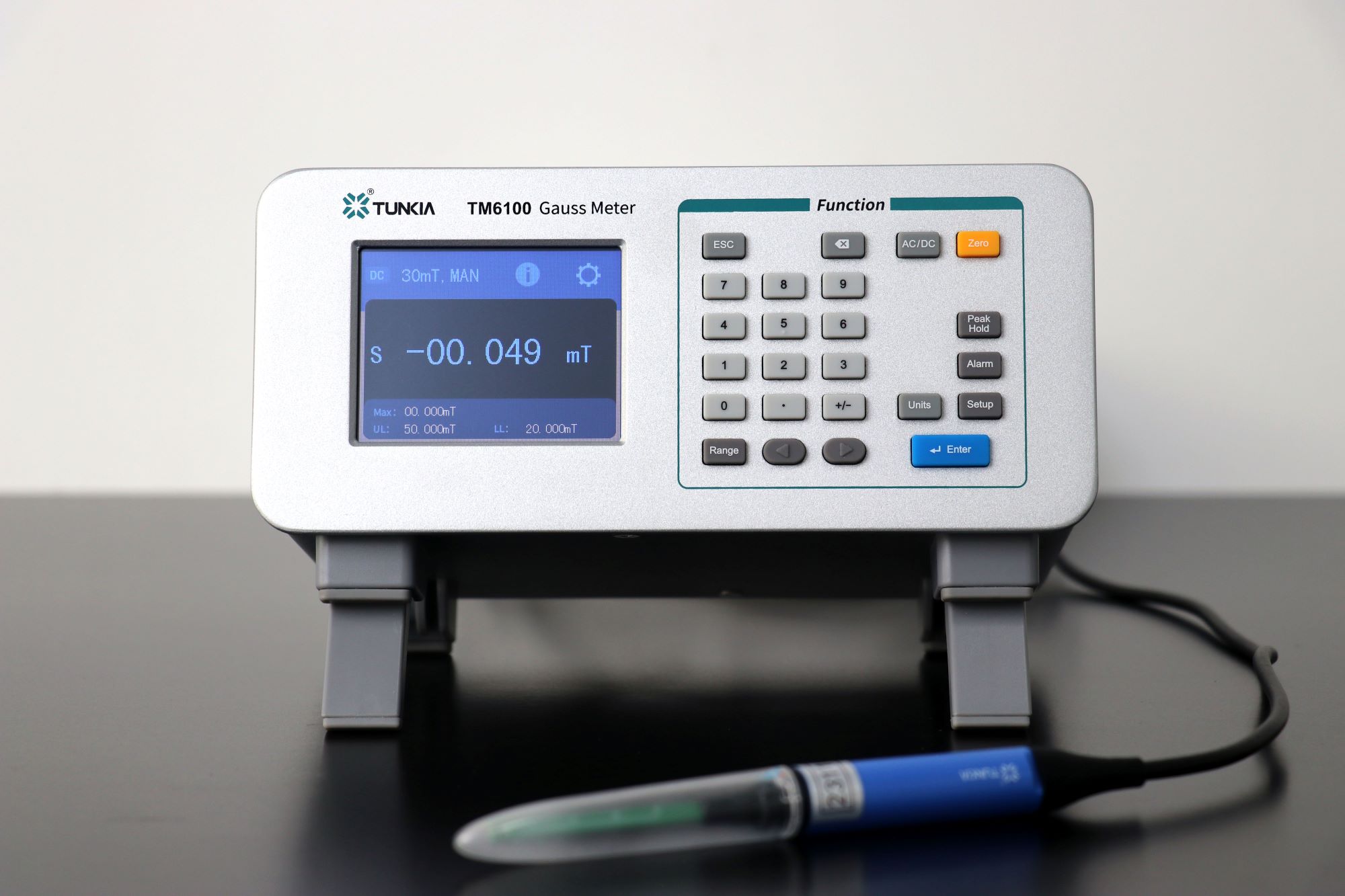

TM6100 Gauss-Meter

• Two output modes of digital signal and analog signal.

• Directly output the secondary analog signal, and adjust the maximum output voltage.

☆ One-key Clear Function/ Zero Drift Calibration
Zero drift calibration operation
Serial Number	Function Description
	One-key clear function: eliminate the influence of zero drift on the measurement before measuring.
	Magnetic shielding cavity (optional): • Realize the calibration of the zero drift. • Can completely remove the influence of the earth's magnetic field with the shielding material of high magnetic permeability. • Internal magnetic field <10 -6 T. • Small size, light weight (about 1 kg).

Range		30 mT	300 mT	3000 mT ①
Resolution		1 μT	10 μT	0.1 mT
Measuring Range		2 mT ～ 3000 mT
Accuracy	0.5 %	DC: ±(0.5% + 200 μT), AC: ±5%( RMS) ①
	0.2 %	DC: ±(0.2% + 200 μT) , AC:±5% (RMS)
Frequency Range		DC, 40Hz ~ 500Hz
Temperature Coefficient		± 0.1% / K
Zero Drift		± 0.1 mT /h
Display Digits		5
Remark		① AC mode is a feature selected for the TM6100-B

Power Supply	AC ( 220 ± 22 ) V, ( 50 ± 2 ) Hz
Temperature Performance	Operating temperature: 0°C～50°C Storage temperature: -20°C ~ 70°C
Humidity Performance	Operating humidity: 40% ~ 80 % R·H, non-condensing Storage humidity: < 80% RH, non-condensing
Altitude	< 3000 m
Weight	About 3 kg

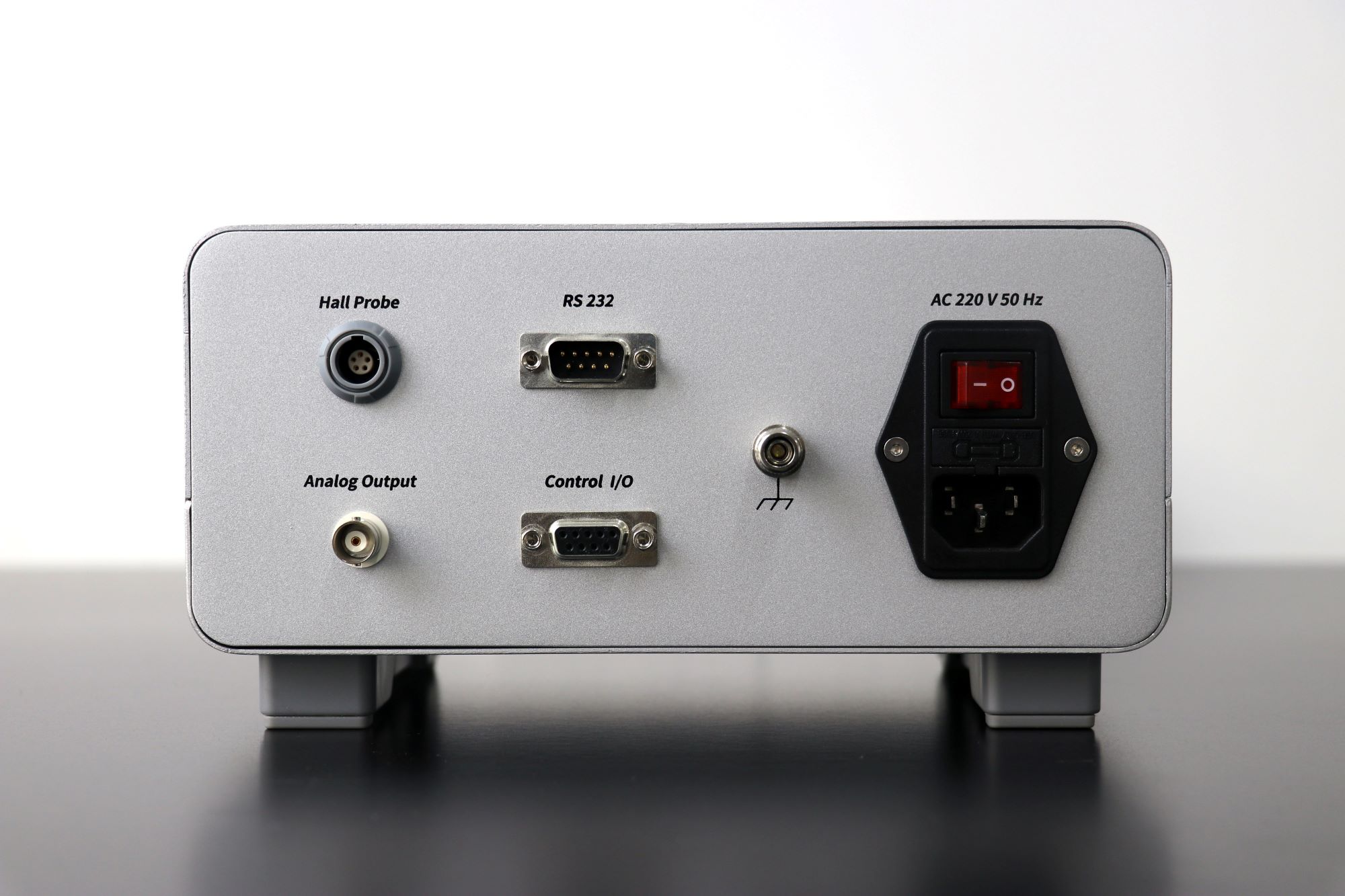

Interface	Hall probe input, RS232 interface
Dimensions	225 mm (W) × 170 mm (D) × 115 mm (H)

Serial number	Picture	Name	Specification	Quantity	Remark
1		TM1100 Hall Probe	radial	1	Standard Accessory
2		TM1110 Hall Probe	axial	1	Optional
Note：The users should indicate the probe in the order contract.

Range		30 mT	300 mT	3000 mT ①
Resolution		1 μT	10 μT	0.1 mT
Measuring Range		2 mT ～ 3000 mT
Accuracy	0.5 %	DC: ±(0.5% + 200 μT), AC: ±5%( RMS) ①
	0.2 %	DC: ±(0.2% + 200 μT) , AC:±5% (RMS)
Frequency Range		DC, 40Hz ~ 500Hz
Temperature Coefficient		± 0.1% / K
Zero Drift		± 0.1 mT /h
Display Digits		5
Remark		① AC mode is a feature selected for the TM6100-B

Power Supply	AC ( 220 ± 22 ) V, ( 50 ± 2 ) Hz
Temperature Performance	Operating temperature: 0°C～50°C Storage temperature: -20°C ~ 70°C
Humidity Performance	Operating humidity: 40% ~ 80 % R·H, non-condensing Storage humidity: < 80% RH, non-condensing
Altitude	< 3000 m
Weight	About 3 kg
Interface	Hall probe input, RS232 interface
Dimensions	225 mm (W) × 170 mm (D) × 115 mm (H)

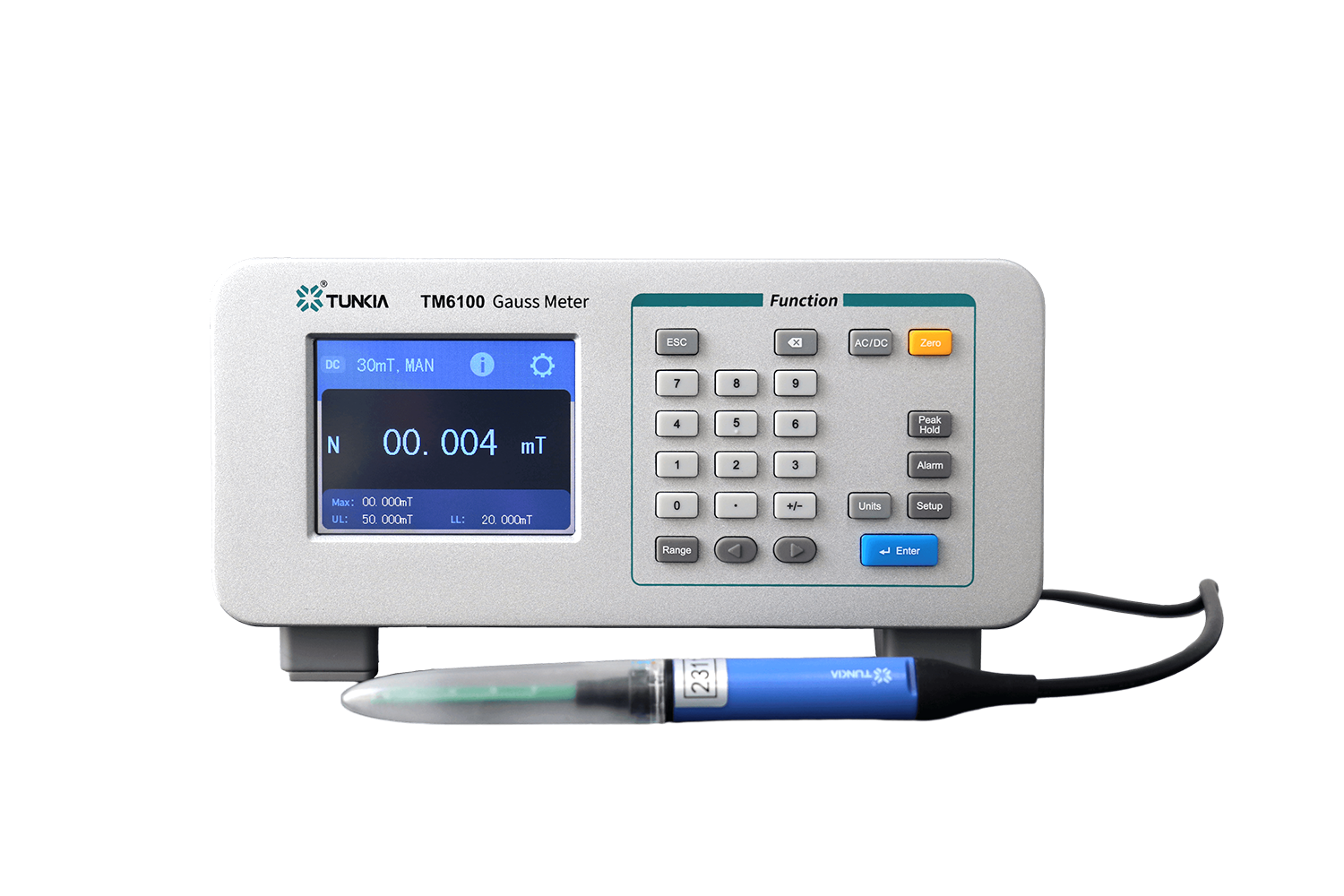

TM6100 Gauss Meter
