TUNKIA TM5340B Handheld Triaxial Tesla Meter

Share to:

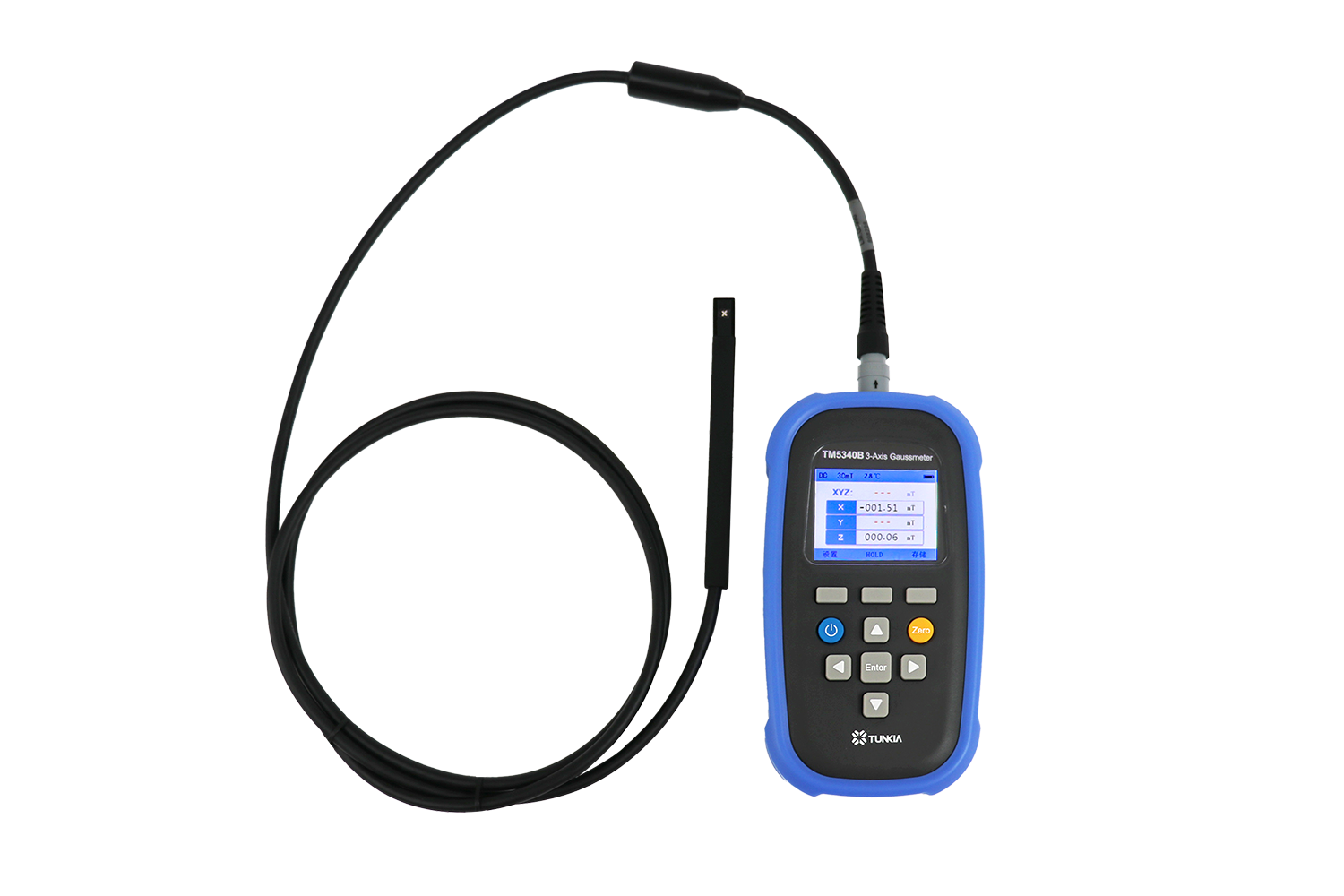

TM5340B Handheld Triaxial Tesla Meter

The TM5340B is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Features:	Range: 2 mT～3000 mT Accuracy: 5% Measuring XYZ component, vector synthetic value AC or DC mode +/- polarity display Unit switch: mT, G, A/m
Availability:

Quantity:



Inquire Add to Basket

Model:
TM5340B
Brand:
TUNKIA

TM5340B Hand-held Triaxial Tesla-Meter

1. Summary

The TM5340B is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

2. Features

• Range: 2 mT～3000 mT.

• Accuracy: 5%.

• Measuring XYZ component, vector synthetic value.

• Switching AC or DC mode.

• +/- polarity display.

• Unit switch: mT, G, A/m.

• Relative measurement mode.

• Max. hold function.

• Alarm of exceeding the upper / lower limit.

• Probe temperature compensation.

• Magnetic measurement data storage.

• Lithium battery, remaining power display.

• USB interface.

• Optional magnetic shielded cavity.

3. Application

TM5340B Hand-held Triaxial Tesla-Meter

XYZ Range	30 mT	300 mT	3000 mT ①
R Range	52 mT	520 mT	5200 mT
Resolution	1 μT	10 μT	0.1 mT
Measuring Range	2 mT～3000 mT
Accuracy	DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)
Frequency Range	DC,40 Hz～500 Hz
Temperature Coefficient	± 0.06% / K
Zero Drift	± 0.1 mT / h
Display Digits	5
Remark	1 : Calibration only covers 2.5T

Power Supply	4000 mAh lithium battery, USB charging
Temperature Performance	Operating temperature:0°C～45°C Storage temperature:-20°C～70°C
Humidity Performance	Working humidity:20%～80% R·H, non-condensing Storage humidity:< 85% R·H, non-condensing
Weight	About 500 g
Interface	Hall probe input interface, USB interface
Dimensions	90 mm(W) × 40 mm(D) × 165 mm(H)

XYZ Range	30 mT	300 mT	3000 mT ①
R Range	52 mT	520 mT	5200 mT
Resolution	1 μT	10 μT	0.1 mT
Measuring Range	2 mT～3000 mT
Accuracy	DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)
Frequency Range	DC,40 Hz～500 Hz
Temperature Coefficient	± 0.06% / K
Zero Drift	± 0.1 mT / h
Display Digits	5
Remark	1 : Calibration only covers 2.5T

Power Supply	4000 mAh lithium battery, USB charging
Temperature Performance	Operating temperature:0°C～45°C Storage temperature:-20°C～70°C
Humidity Performance	Working humidity:20%～80% R·H, non-condensing Storage humidity:< 85% R·H, non-condensing
Weight	About 500 g
Interface	Hall probe input interface, USB interface
Dimensions	90 mm(W) × 40 mm(D) × 165 mm(H)

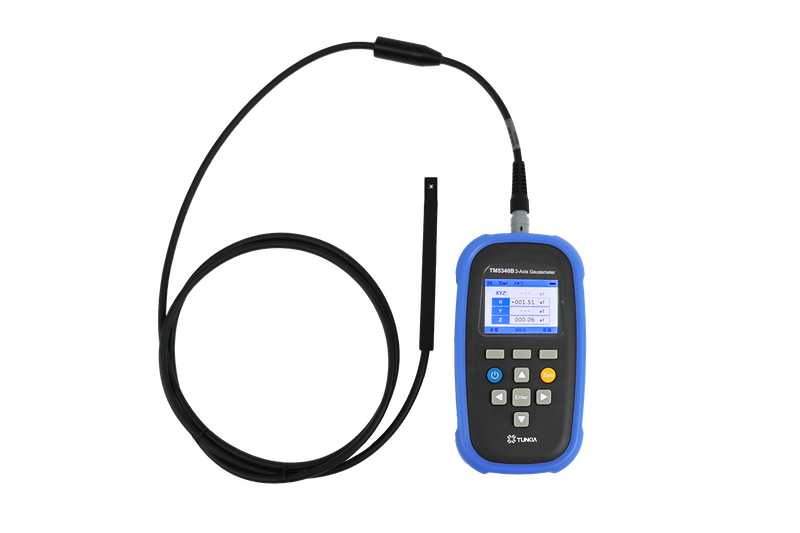

TM5340B Handheld Triaxial Tesla Meter

TM5340B Hand-held Triaxial Tesla-Meter

TM5340B Hand-held Triaxial Tesla-Meter
