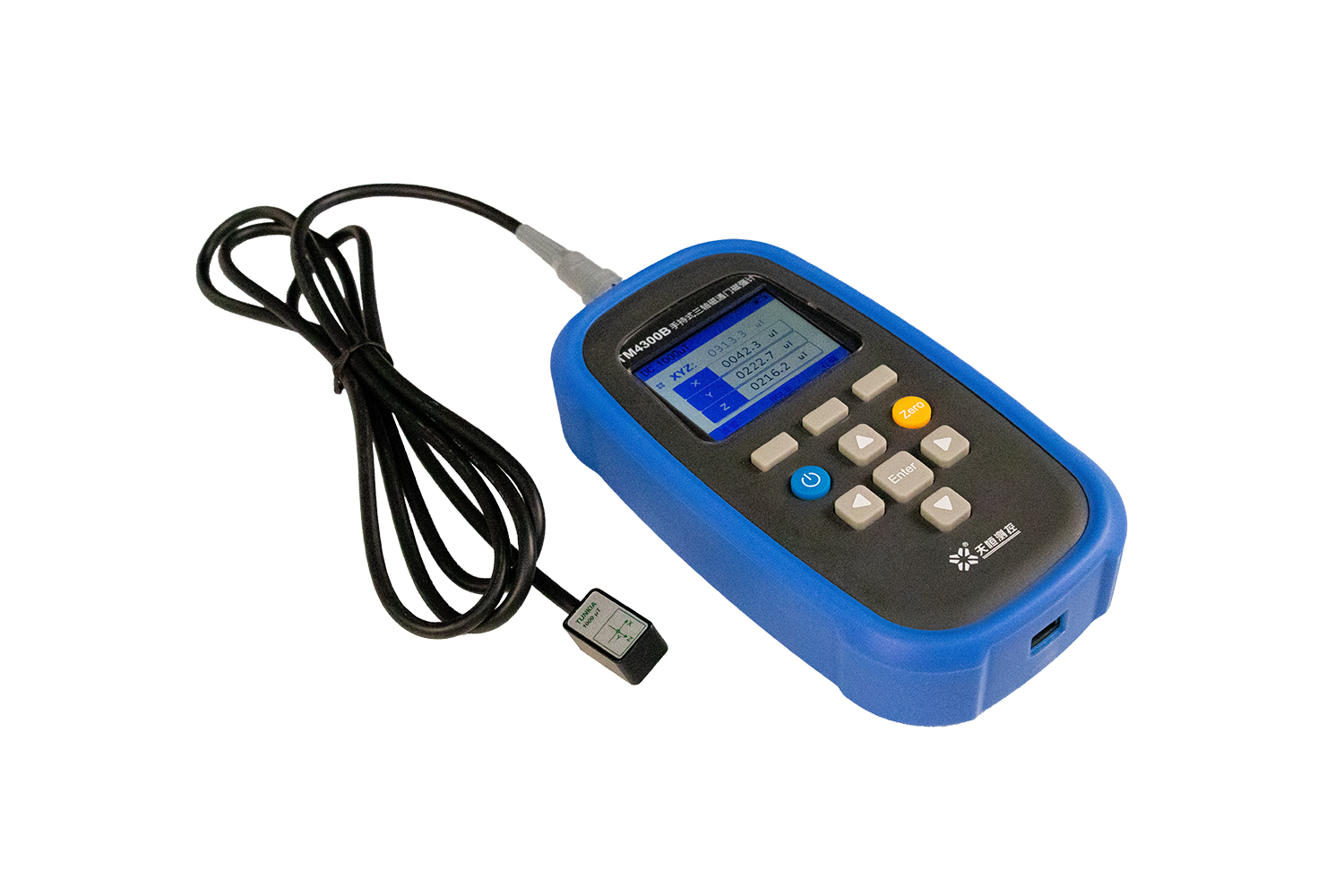

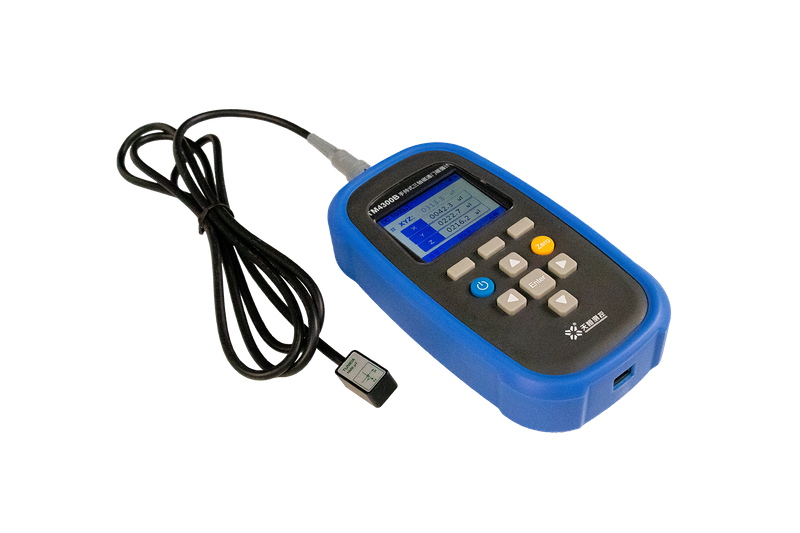

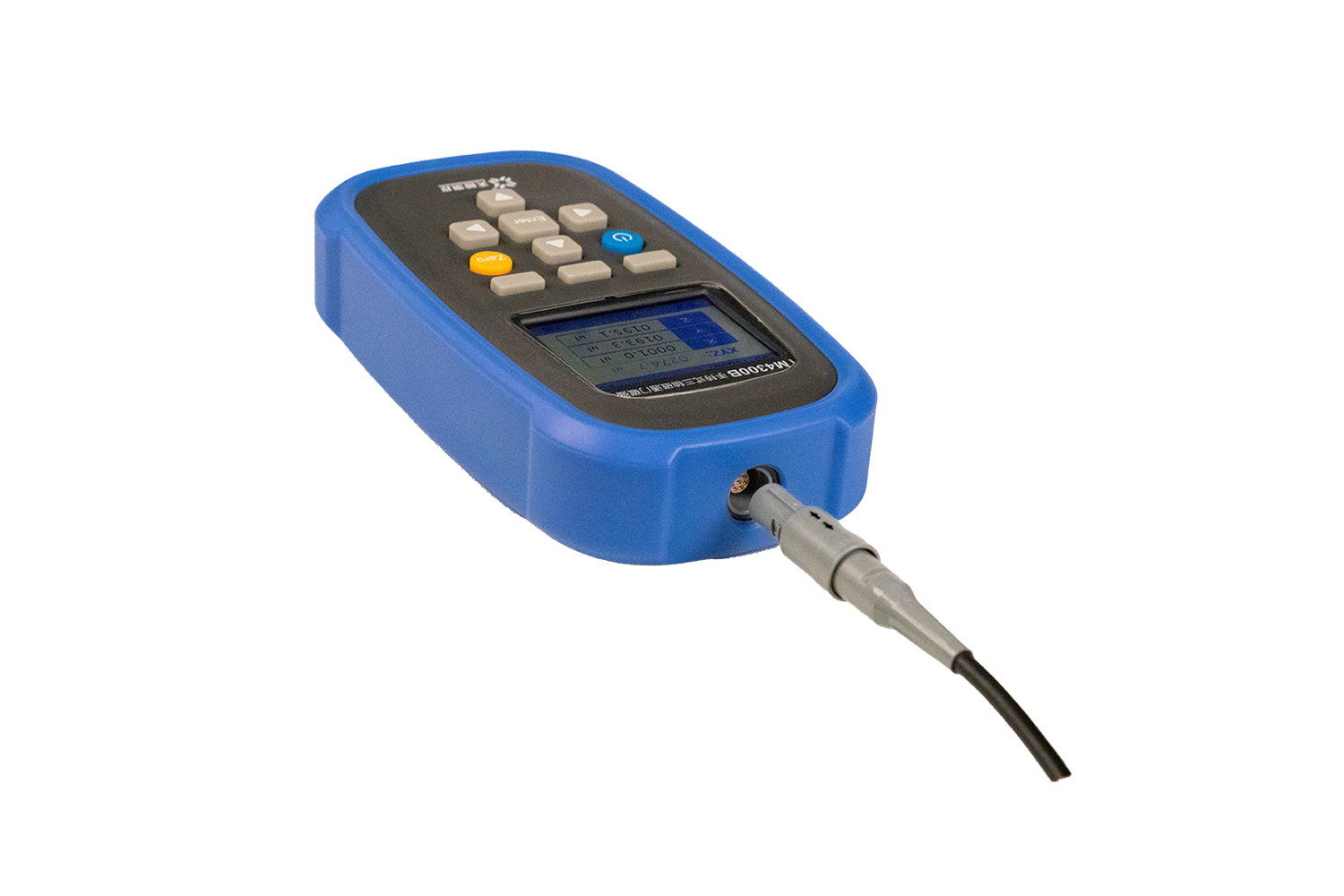

TM4300B Handheld Triaxial Fluxgate Magnetometer

The TM4300B is a portable, multi-function meter that measures low magnetic field, equipped with high sensitivity, high linearity, low drift triaxial fluxgate sensor, which can measure low magnetic field accurately.
  • TM4300B

  • TUNKIA

Features:
Availability:

TM4300B Hand-held Triaxial Fluxgate Magnetometer

TM4300B Hand-held Triaxial Fluxgate Magnetometer

1. Summary

The TM4300B is a portable, multi-function meter that measures low magnetic field, equipped with high sensitivity, high linearity, low drift triaxial fluxgate sensor, which can measure low magnetic field accurately.


2. Features

• Range: 0~2000 μT.

• Various of probes are optional.

• Accuracy: 1% or 2%.

• Unit switch: μT, mG.

• +/- polarity display.

• Relative measurement mode.

• Max. hold function.

• USB interface.

• Measuring XYZ component, vector synthetic value.

• Alarm function of exceeding the upper / lower limit.

• Display support backlight and battery power.

• Magnetic measurement data storage.

• Lithium battery, remaining power display.


3. Application

• Measuring low magnetic field.

• Geological prospecting.

• Fragmentation processing, security check.

• Fault location, research experiment.

• Magnetic shielding evaluation.

• Calibrating low magnetic field sources.

• Detecting magnetic resonance meter.

• Detecting electron microscope.

• Detecting Magnetic field drift.

4. Specifications

Probe①

( μT )

Resolution ( nT )

Accuracy

Noise

@1Hz

Temperature

Coefficient

( %/°C )

Class 2

Class 1

100

10

±2%

±1%

< 20 nTrms

± 0.1

500

10

±2%

±1%

< 20 nTrms

± 0.1

1000

100

±2%

±1%

< 20 nTrms

± 0.1

2000

100

±2%

±1%

< 20 nTrms

± 0.1

Note [1]: The corresponding probe is selected according to the measurement of range.

• XYZ Range:0~± 2000 μT

• R Range:0~± 3464 μT

• Display Digits: 5-digits display.

• Frequency Range: DC~400 Hz

• Linearity: ± 0.5%


5. General Specifications

Power Supply

4000 mAh lithium battery, USB charging

Temperature Performance

Operating temperature:0°C~45°C

Storage temperature:-20°C~70°C

Humidity Performance

Working humidity:20%~80% R·H, Non-condensing

Storage humidity:< 85% R·H, Non-condensing

Weight

About 500 g

Interface

Fluxgate probe input interface, USB interface

Dimensions

90 mm(W) × 40 mm(D) × 165 mm(H)

Probe Dimensions

20 mm(L) × 14 mm(W) ×12 mm(H)


6. Ordering Information

TM4100B Hand-held Fluxgate Magnetometer


7. Probe Selection

Serial Number


Name

Specification

Quantity

Remark

1


TM1230-100μT

Miniature Fluxgate Probe

100μT range / triaxial / 1.5m / Lemo plug

1

Optional Accessories

2

TM1230-500μT

Miniature Fluxgate Probe

500μT range / triaxial / 1.5m / Lemo plug

1

Optional Accessories

3

TM1230-1000μT

Miniature Fluxgate Probe

1000μT range / triaxial / 1.5m / Lemo plug

1

Optional Accessories

4

TM1230-2000μT

Miniature Fluxgate Probe

2000μT range / triaxial / 1.5m / Lemo plug

1

Optional Accessories

Note: User indicates the range in the order contract, and the probe is provided by range.
