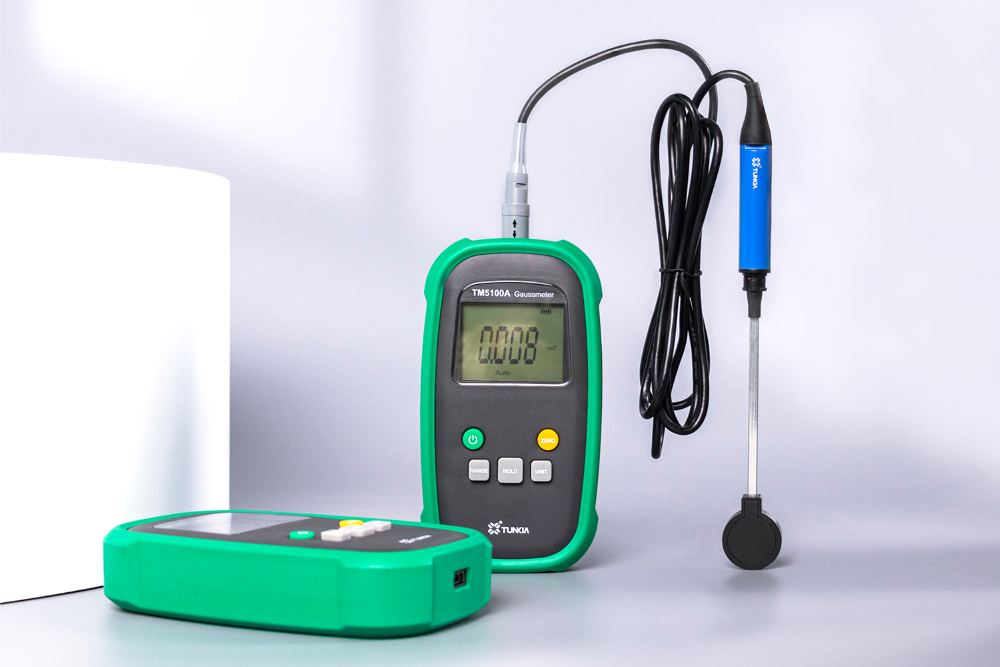

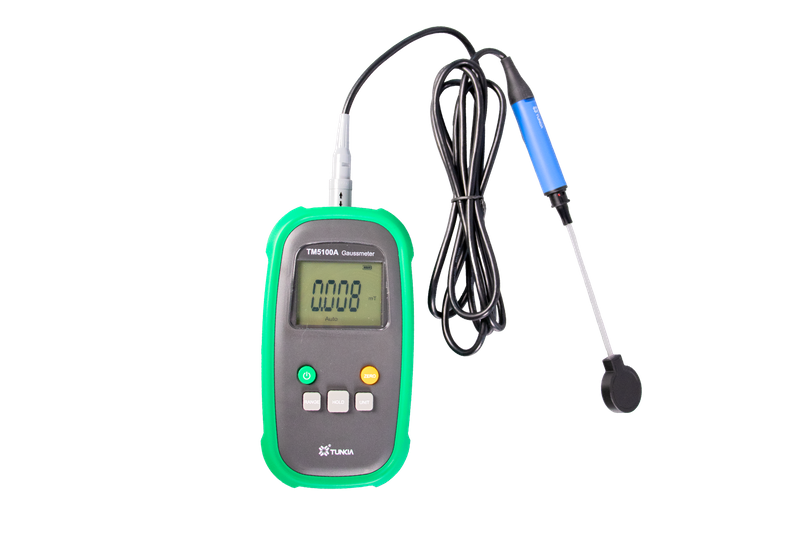

TM5100A Handheld AC Magnetometer

TM5100A is a portable alternating magnetic field measuring instrument,equipped coil probe, which is suitable for measuring the flux density of AC constant magnetic field, used to calibrate AC magnetic field source, space magnetic field scanning, scientific research. etc.
Features:
Availability:
Quantity:
  • TM5100A

  • TUNKIA

TM5100A Hand-held AC Magnetometer

TM5100A Hand-held AC Magnetometer

1. Summary

TM5100A is a portable alternating magnetic field measuring instrument,equipped coil probe, which is suitable for measuring the flux density of AC constant magnetic field, used to calibrate AC magnetic field source, space magnetic field scanning, scientific research. etc.


2. Features

• Measure range:2mT ~ 240 mT.

• Accuracy: 1% / 2%.

• One-click unit switch: G, mT, A/m.

• One-key reset function.

• Max. hold function.

• Supporting backlight function.

• Battery remaining power display.

• USB interface.

• Small size, light weight.

3. Specifications

Measuring Range

20 mT

200 mT

Resolution

10μT

100μT

Range

2 mT~240mT

Frequency Range

45 Hz~100 Hz

Accuracy

Class 1

1%

Class 2

2%

Temperature Coefficient

± 0.1% / K

Zero Drift

± 0.1mT/h

Display Digit

4


4. General Specification

Power Supply

3 AA batteries or USB charging

Temperature Performance

Operating temperature: 0~50℃;

Storage temperature: -20°C~70°C

Humidity Performance

Operating humidity: 40%~80% R·H, non-condensing

Storage humidity: <95% R·H, non-condensing

Quality

About 350 g

Communication Interface

Hall probe input interface, USB interface

Overall Dimensions

90mm(W) ×40 mm(D) × 165 mm(H)


5. Ordering Information

TM5100A Hand-held AC Magnetometer


6. Accessories List

Serial Number


Name

Specification

Quantity

Remark

1

TM5100A Hand-held AC MagnetometerTM5100A Hand-held AC MagnetometerTM5100A Hand-held AC Magnetometer

Nanfu batteries

5

3

Standard Accessories

2

TM5100A Hand-held AC Magnetometer

Small Phillips screwdriver

Diameter 2mm, length of rob 30mm,full length 88mm

1

Standard Accessories

3

TM5100A Hand-held AC Magnetometer

TM5100 packaging box

Paper packing box

1

Standard Accessories

4

TM5100A Hand-held AC Magnetometer

TM5100 cotton

——

1

Standard Accessories

5

TM5100A Hand-held AC Magnetometer

TM5100 rubber sleeve

Green

1

Standard Accessories

6

TM5100A Hand-held AC Magnetometer

TM5100A coil probe

——

1

Standard Accessories
