TI2100 High Stability DC High Current Standard Source

TI2100 is a series of high-stability precison DC high current standard sources for industrial detection, which adopts a modular design and supports the combined output of multiple sources to adapt application scenarios with different current specifications. It can calibrate DC Shunt and Current Sensor.

Features:
Availability:
Quantity:
  • TI2100

  • TUNKIA

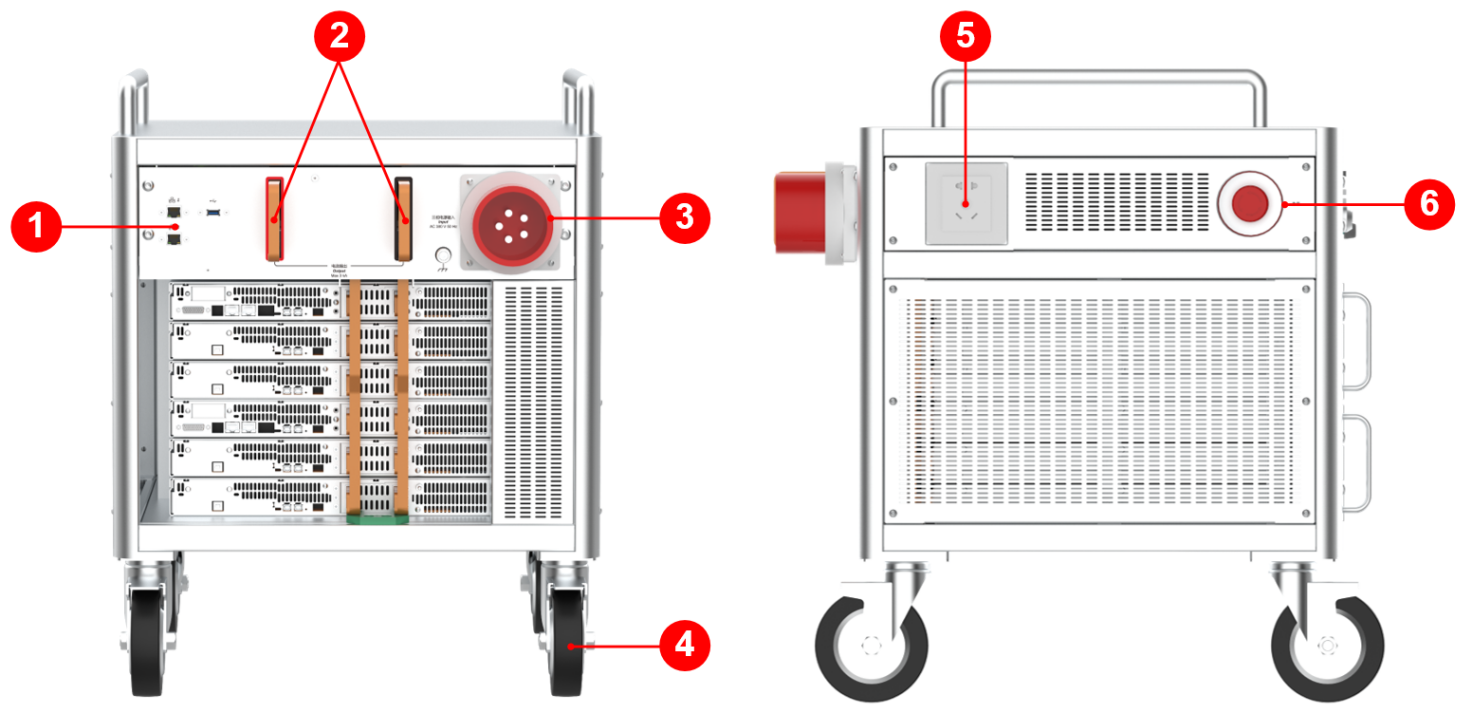

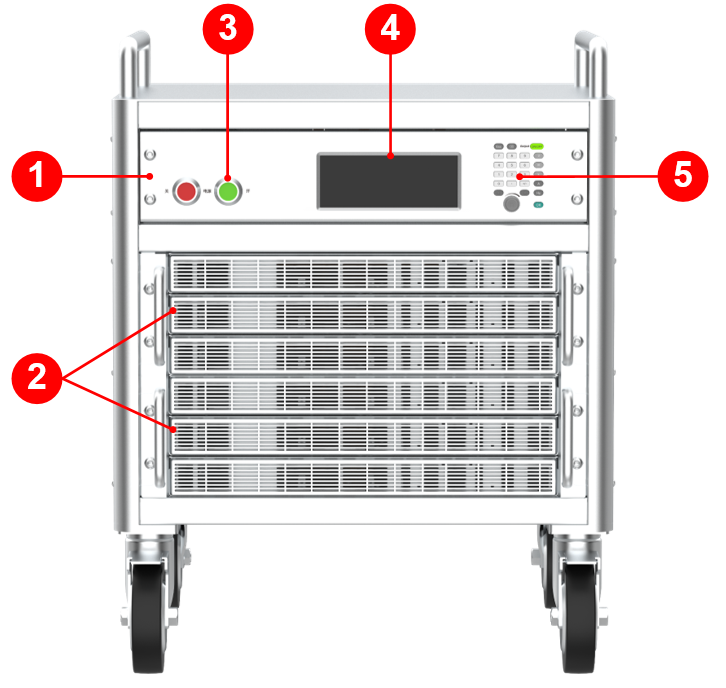

TI2100 High-Stable DC High Current Standard Source

TUNKIA TI2100 High-Stable DC High Current Source

*Reference only

1. Summary

TI2100 is a series of high-stability DC high-current standard sources for industrial detection, which adopts a modular design and supports the combined output of multiple sources to adapt application scenarios with different current specifications.


2. Features

Accuracy: class 0.01.

Single current range, no relay shifting.

Short-term stability is typically better than 0.003% * FS.

The maximum load voltage of the constant current output is 10 V.

The unipolar source can be connected to an external commutator (accessory) to realize current commutation.

A bipolar source (option) generates forward and reverse currents directly through the circuit.

The constant current output output ripple coefficient is less than 0.1%.

LAN, RS232 interfaces.


3. Applications

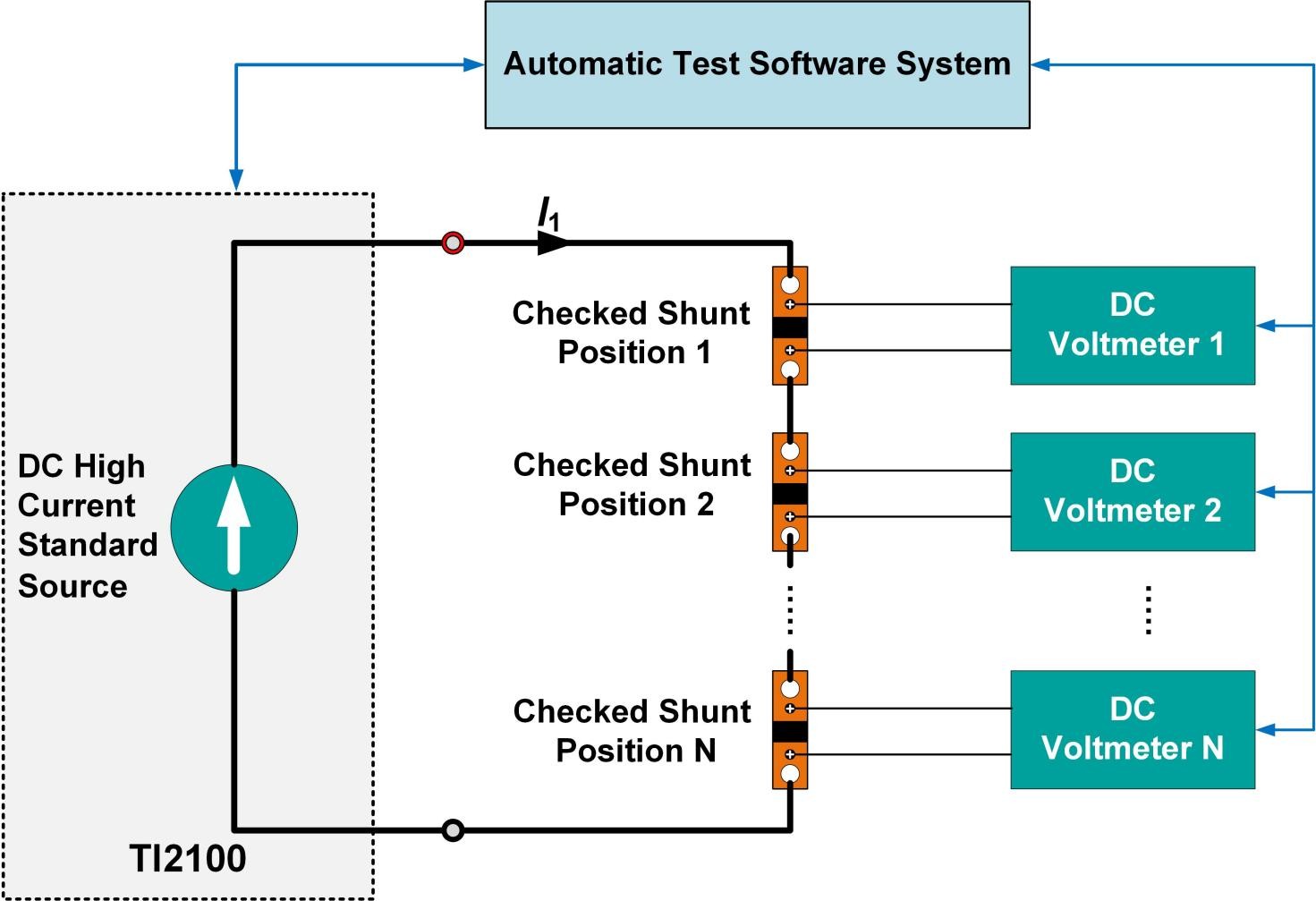

Calibration of DC shunt

TUNKIA TI2100 High-Stable DC High Current Source

Supports standard source method calibration and testing of DC shunts (optional voltage measurement module required).

The load voltage of up to 10 V is suitable for the simultaneous detection of multiple shunts in the production line.

(Note: The number of simultaneous access is related to the load size of the shunt under test).

Support docking with the user's automated test system (or customized software) to achieve automatic testing.

Supported test items include: basic error test, error consistency test, error stability test, measurement repeatability test, shunt thermal balance test, overload test, etc.

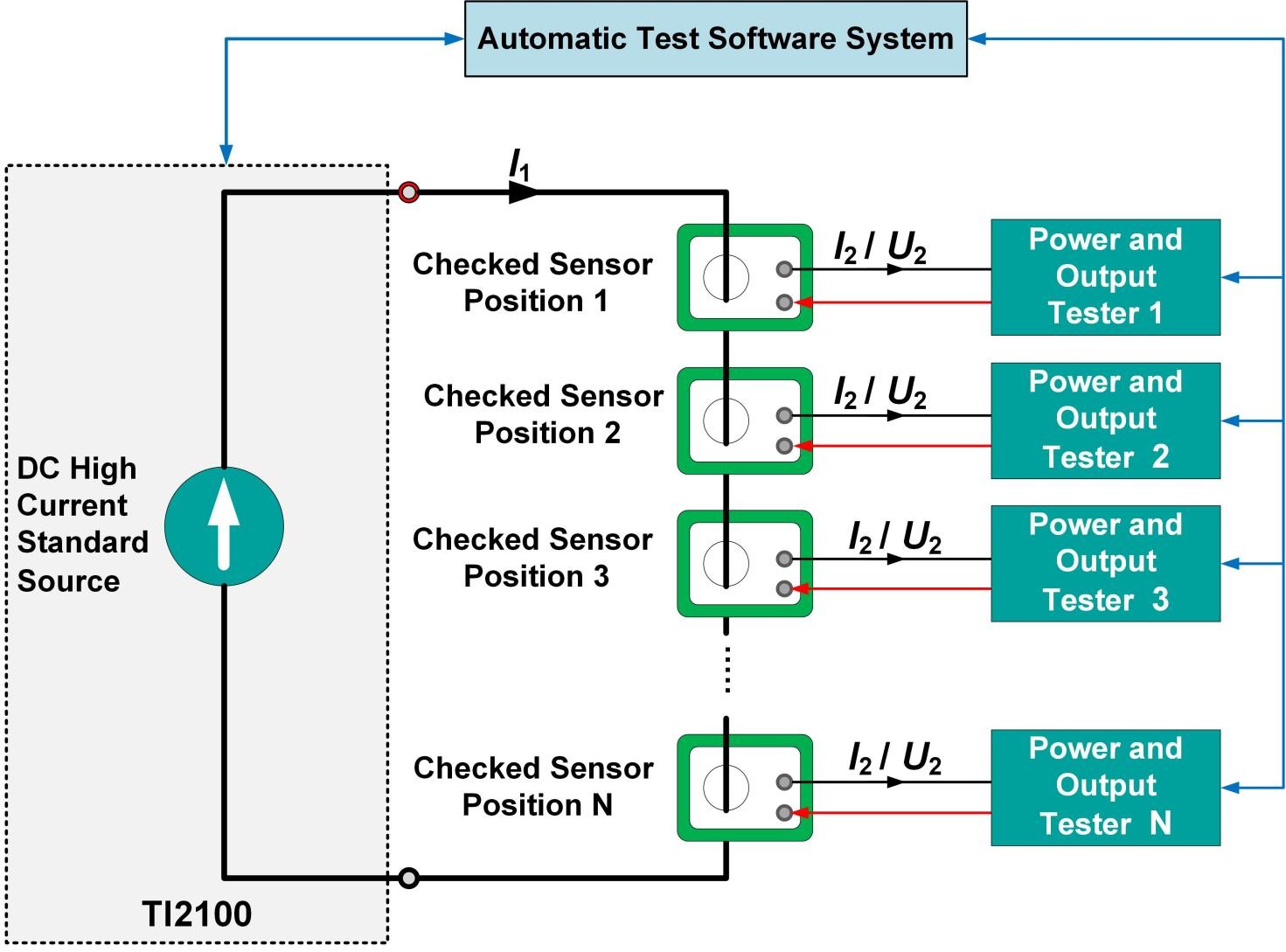

Calibration of Current Sensor

TUNKIA TI2100 High-Stable DC High Current Source

The standard source method is used to calibrate and measure the current sensor.

It is also suitable for the simultaneous detection of multiple current sensors in production lines.

(Note: The number of simultaneous access is related to the load size of the sensor being inspected).

Support docking with the user's automated test system (or customized software) to achieve automatic testing.

Supported detection items include: basic accuracy error, zero output error, full-scale output error, linearity error, return difference, repeatability error, etc Zero point drift, thermal zero drift (with temperature control box), thermal sensitivity drift (with temperature control box), overload capacity, power influence, The rate of change of load (with load box), etc.





4. Characteristics

☆ High Stability

TUNKIA TI2100 High-Stable DC High Current Source


Short-term stability typical: 0.003 %/h.


☆ Low Ripple Content

TUNKIA TI2100 High-Stable DC High Current Source

TI2100 current ripple content is better than 0 1 %, which can reduce the noise interference caused by DC ripple and ensure the accuracy of test results; At the same time, it avoids surge voltage or current caused by strong ripple to ensure the safety of equipment operation.

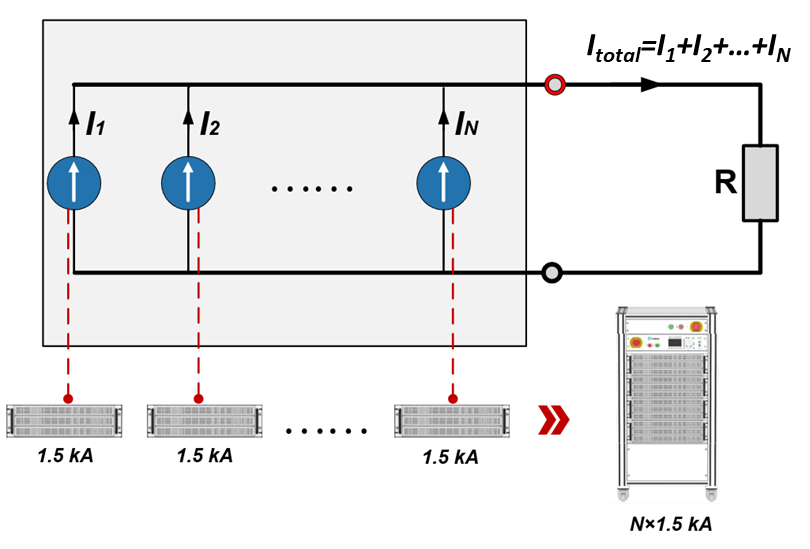

☆ Module Source Combination Output

TUNKIA TI2100 High-Stable DC High Current Source

TI2100 supports DC high-current output in combination of multiple module sources, up to 10 kA or more;

It is equipped with a control module to adjust multiple source outputs, improve the current sharing coefficient, and ensure the stability and accuracy under high-current output.


☆ Multi-type Digital Communication Interface

TUNKIA TI2100 High-Stable DC High Current Source

USB, LAN, RS232 interfaces.

Note: Customized software are available.



5. Specifications

Device Rating

Class 0.01

Range

N*1.5k A Specification

N * 1.5 kA

Output Range

(1% ~ 100%)*RG

Current Commutation

Supports external commutator (option)

                                Supports bipolar outputs (function option)

Maximum Load Voltage

10 V

Short-term Stability

0.003%*FS

Measurement Uncertainty (k=2)

ppm*RD+ppm*RG

60 + 40

Ripple Coefficient

≤ 0. 1%

Settling Time

≤1 s

Circuit Protection

Open circuit protection, overload protection, overtemperature protection

Note

(1) RD is the reading value, (2) RG is the range value


6. General Specifications

Power Supply

Three-phase five-wire, AC 38 0 V ± 38 V, 50 Hz ± 2 Hz

Quality (3 kA size).

84.5 kg

Working Environment

0°C ~ 50°C, (20% ~ 85%) R·H, non-condensing

Storage Environment

-20°C ~ 70°C, <85% R·H, non-condensing

Communication Interface

LAN、RS232、USB


7. Ordering Information

TUNKIA TI2100 High-Stable DC High Current Source
