TUNKIA TD3310 Three Phase Multi-function Standard Meter

Share to:

TD3310 Three Phase Multi-function Standard Meter

TD3310 is a high-precision three-phase standard instrument, which can simultaneously measure multiple electrical charges in the loop such as: voltage, current, frequency, phase, harmonics, active power/energy, reactive power/energy, apparent power, power factor, etc. in the three-phase Y-shaped/V-shaped wiring mode.

Features:	Power/energy accuracy up to Class 0.01. Voltage measurement: 6 V~528 V (customizable) Current measurement: 0.2 mA~120 A Fundamental frequency: 45 Hz~65 Hz (optional 400Hz)
Availability:

Quantity:



Inquire Add to Basket

Model:
TD3310
Brand:
TUNKIA

TD3310 Three-phase Multifunction Standard Meter

1. Summary

TD3310 is a high-precision three-phase standard instrument, which can simultaneously measure multiple electrical charges in the loop such as: voltage, current, frequency, phase, harmonics, active power/energy, reactive power/energy, apparent power, power factor, etc. in the three-phase Y-shaped/V-shaped wiring mode.

2. Features

• Power/energy accuracy up to Class 0.01.

• Voltage measurement: 6 V~528 V (wider range can be customized).

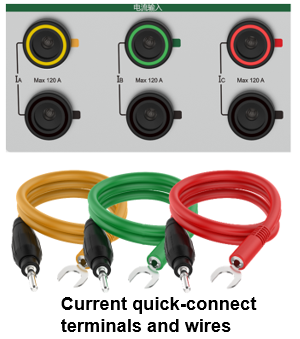

• Current measurement: 0.2 mA~120 A.

• Fundamental frequency: 45 Hz~65 Hz (optional 400Hz).

• Phase measurement uncertainty is typically 0.003°.

• Voltage and current support fully automatic range shifting.

• Voltage and current support 2~127th harmonic measurement.

• Support comprehensive statistical analysis of the measured electricity.

• Standard energy pulse input/output function.

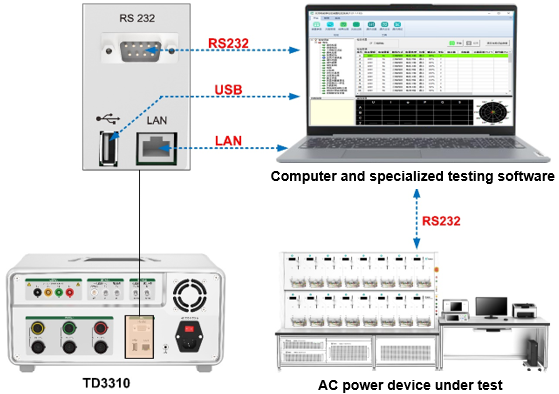

• USB, RS232, and LAN interfaces.

• LCD touch screen.

3. Applications

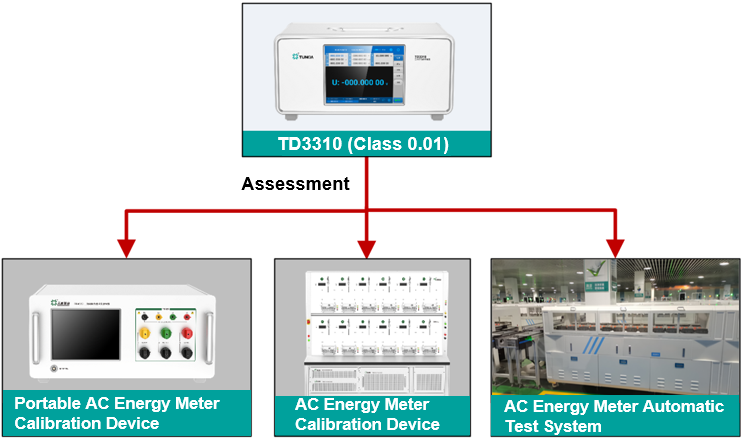

☆ Calibrate Single Three Phase Power Source /Meter

TD3310 Three-phase Multifunction Standard Meter Calibrate Single Three Phase Power Source /Meter

• The TD3310 three-phase power/energy has an optimal measurement uncertainty of Class 0.01.

• Suitable for calibrating single/three-phase power sources with class 0.02 and below, power meters/standard energy meters (with stable power sources).

• Suitable for calibrating single/three-phase voltage standard sources and voltage standard meters of class 0.02 and below (with stable voltage sources).

• Suitable for calibrating single/three-phase current standard sources and current standard meters of class 0.02 and below (with stable current sources).

☆Comprehensive Analysis of AC Power

S/N	Function
	The measuring channel has the function of oscilloscope, which can display the waveform of the measured power in real time.
	Accurately measure the phase between the voltage and current of each phase, and visually display it through the form of phasor diagram.
	Two types of harmonic distortion, THD/T (harmonic relative to full wave) and THD/F (harmonic relative to fundamental wave), are calculated.
	The amplitude (RMS), content (%) and phase of the 2nd ~ 127th harmonic wave of each phase voltage or current can be analyzed in real time.； It is used to check whether the harmonic content and phase of complex waveform output of R46 device meet the requirements of the regulation.
	The spectrum of each harmonic is visually displayed in the form of a bar chart (the fundamental wave is 100%).
☆Data Statistical Analysis Function

S/N	Function
	Statistical analysis of data: calculate the maximum value (Max), minimum value (Min), peak-peak value (P-P), average value (Avg), standard variance (S.dev), etc.
	Power stability test: In the test cycle, real-time plot the curve of power change with time.
	Normal distribution histogram: Displays the distribution of the collected power within a test period.
	Power stability test: According to the algorithm of JJG 597-2005 "Verification Regulation of AC Watt-hour Meter Verification Device", the output power stability of the inspected electric energy device can be calculated automatically.

4. Specifications

4.1 Three-phase voltage measurement

Range	Resolution	Measurement uncertainty ( k = 2 ) ( ppmRD + ppmRG ) [1]	Temperature coefficient @ (15~30)°C (ppmRD+ppmRG) /°C
60 V	10 μV	30 + 20	0.25 + 0.25
120 V	0.1mV	30 + 20	0.25 + 0.25
240 V	0.1mV	30 + 20	0.25 + 0.25
480 V	0.1mV	30 + 20	0.25 + 0.25
Note [1]: RD is the reading value, RG is the range value, the same below.

• Measuring range: 6 V~528 V (wider range can be customized), 7-digit display, manual/automatic range shifting

4.2 Three-phase current measurement

Range	Resolution	Measurement uncertainty at different frequencies (Hz) (k = 2). ( ppmRD + ppmRG )			Temperature coefficient @ (15~30)°C (ppmRD+ppmRG) /°C
Range	Resolution	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400	Temperature coefficient @ (15~30)°C (ppmRD+ppmRG) /°C
5 mA	1 nA	120 + 80	240 + 160	480 + 320	5 + 5
10 mA	10 nA	60 + 40	120 + 80	240 + 160	3 + 3
20 mA	10 nA	60 + 40	120 + 80	240 + 160	0.75 + 0.75
50 mA	10 nA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
100 mA	0.1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
200 mA	0.1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
500 mA	0.1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
1 A	1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
2 A	1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
5 A	1 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
10 A	10 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
20 A	10 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
50 A	10 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25
100 A	100 μA	30 + 20	60 + 40	120 + 80	0.25 + 0.25

• Measuring range: 0.2 mA~120 A, 7-digit display, manual/automatic range shifting

4.3 Frequency/phase measurement

Measurement type			TD3310	TD3310-R
Frequency	Measuring range		45 Hz~65 Hz	45 Hz~400 Hz
	Minimum resolution		0.000 01 Hz	0.000 01 Hz
	Measurement uncertainty (k=2)		0.005%*RD	0.005%*RD
Phase	Measuring range		0~360°(I ≥ 50mA)	0~360°(I ≥ 50mA)
	Minimum resolution		0.000 1°	0.000 1°
	Measurement uncertainty (k=2)	45 Hz ≤ F ≤ 65 Hz	0.003°	0.003°
		65 Hz < F ≤ 200 Hz	——	0.01°
		200 Hz < F ≤ 400 Hz	——	0.02°

4.4 Power / Energy Measurement

Voltage range	Current range	Factor	Measurement uncertainty at different frequencies (Hz) (k=2)
Voltage range	Current range	Factor	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400
30 V ≤ U ≤ 480 V	50 mA ≤ I ≤120 A	0.5L~1~0.5C	0.01%*RD	0.02%*RD	0.04%*RD
	10 mA ≤ I < 50 mA	1	0.01%*RD	0.03%*RD	0.08%*RD
	10 mA ≤ I < 50 mA	0.5L~1~0.5C	0.02%*RD	0.03%*RD	0.08%*RD
	3 mA ≤ I < 10 mA	1	0.02%*RD	-	-
	3 mA ≤ I < 10 mA	0.5L~1~0.5C	0.04%*RD	-	-
	0.2 mA ≤ I < 3 mA	1	0.02%*RD×3mA/I	-	-

• Power/energy measurement range: a combination of AC voltage range and AC current range

• Power factor measurement range: -1.000 000... 0.000 000... 1.000 000

• Standard energy pulse output: 60 kHz for high-frequency full-scale values and 6 Hz for low-frequency full-scale values

• Standard energy pulse input: frequency≤ 200 kHz, voltage: 0... 3.3 V... 24 V

5. General Specifications

Power supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Maximum power consumption	60 VA
Warm-up time	30 minutes
Temperature performance	Working temperature: 5°C~45°C Storage temperature: -10°C ~ 55°C
Humidity performance	Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C Storage humidity: (20%~80%) R·H, no condensation
altitude	< 3000 m
Quality	Approx. 9.1 kg
Communication interface	RS232、USB、LAN
Size	390 mm(W) × 271 mm(D) × 195 mm(H)
