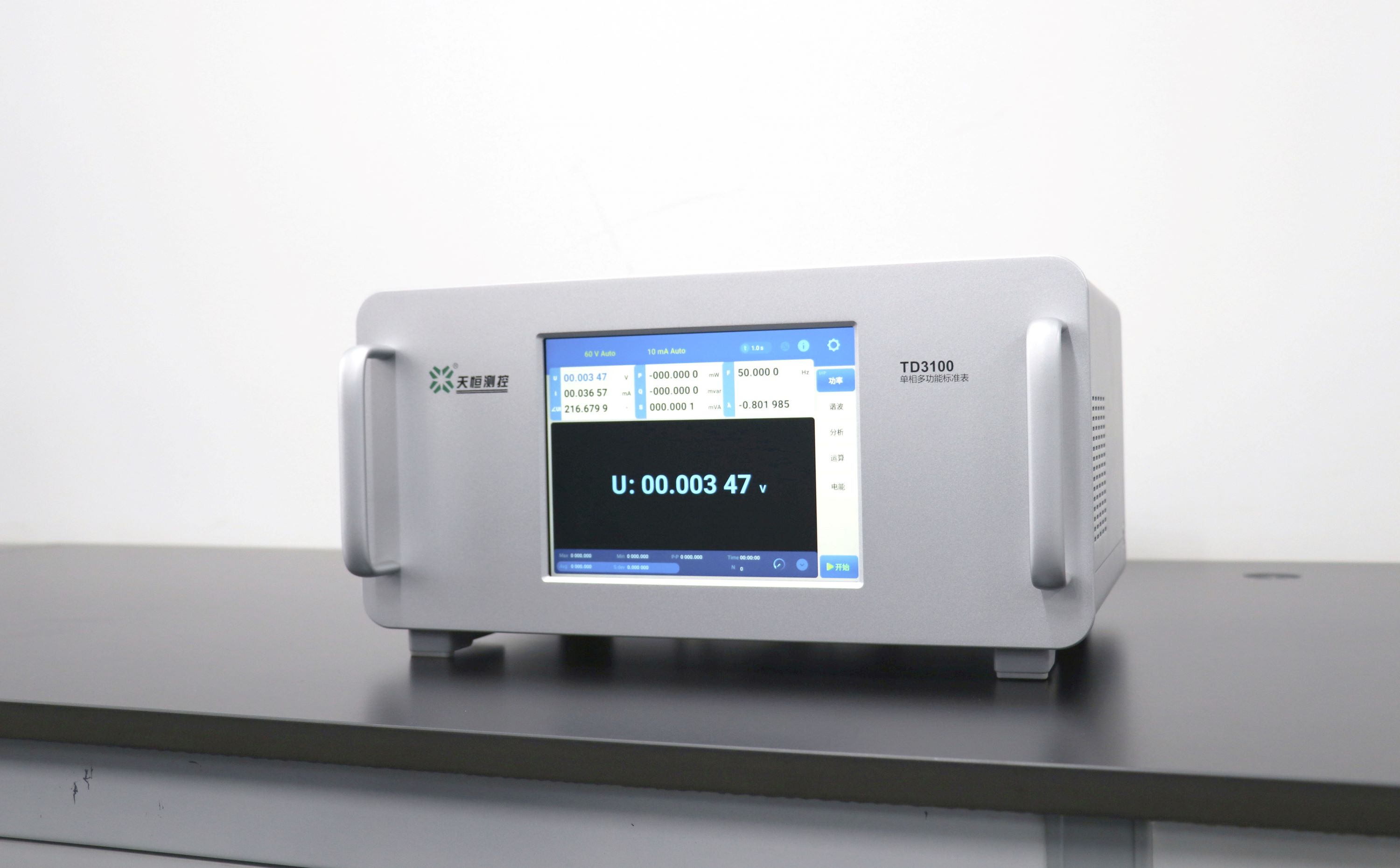

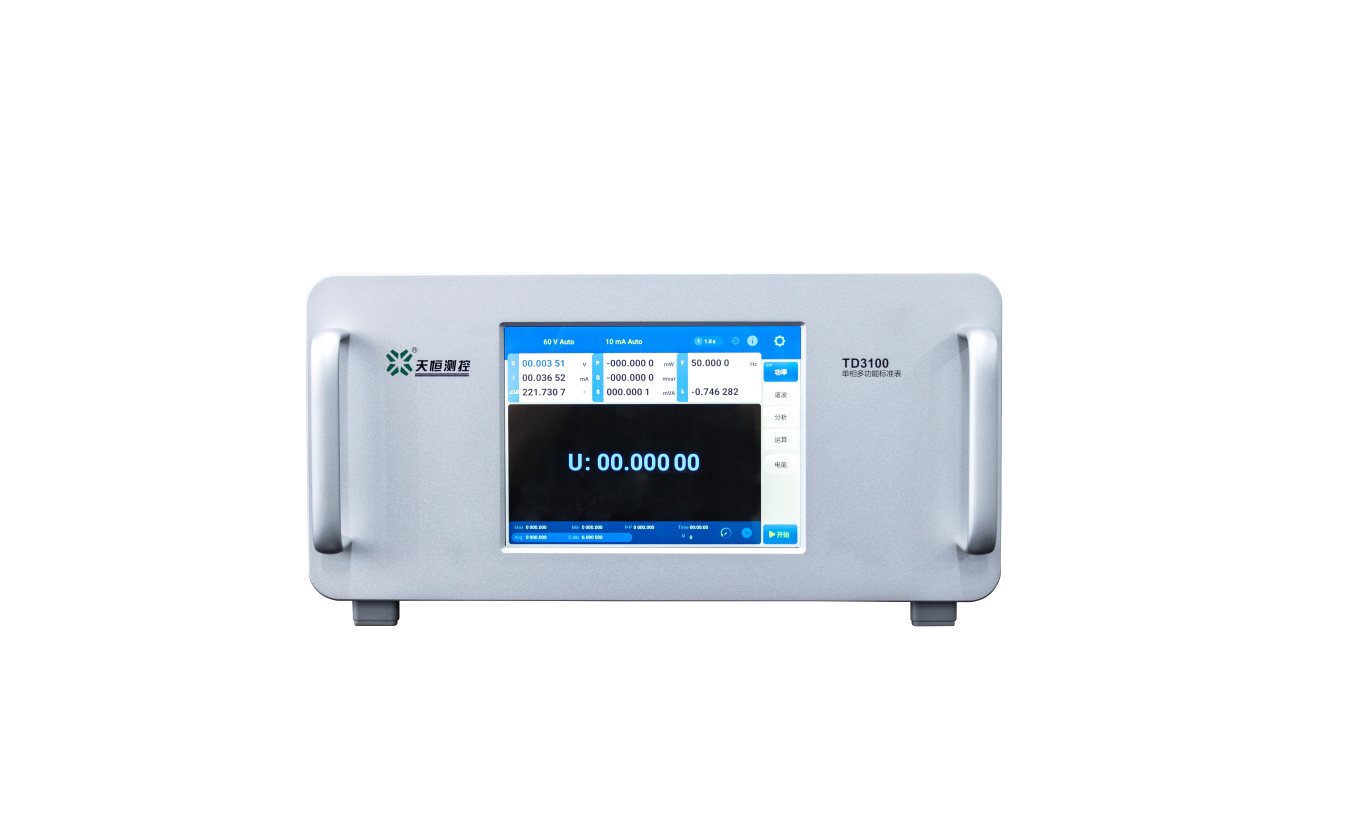

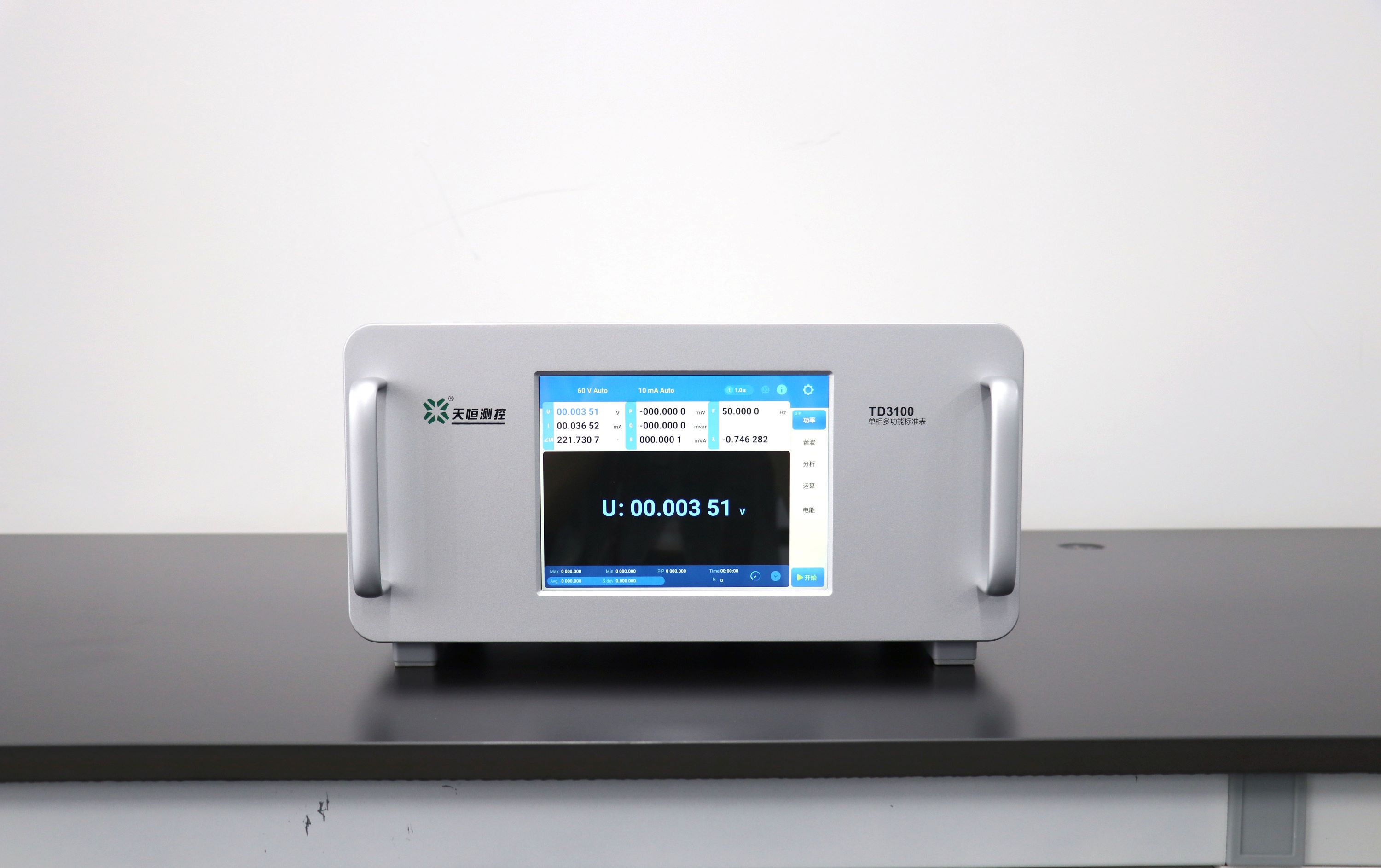

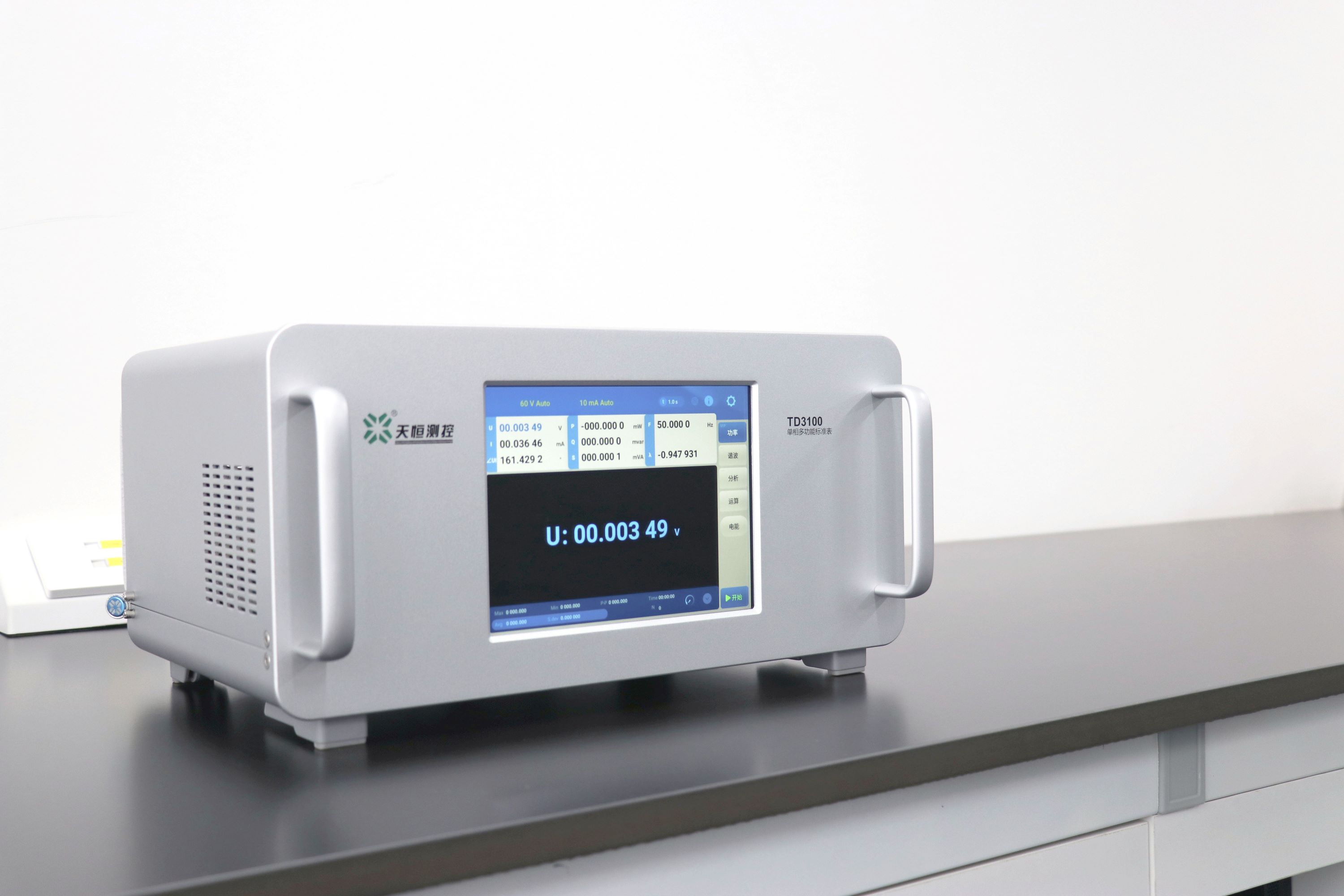

TUNKIA TD3100 Single-phase Multifunction Standard Meter

TD3100 Single-phase Multifunction Standard Meter

Share to:

TD3100 Single-phase Multifunction Standard Meter

TD3100 is a high-precision Single-phase Multifunction Standard Meter that can simultaneously measure multiple electrical charges in the loop such as: voltage, current, frequency, phase, harmonics, active power/energy, reactive power/energy, apparent power, power factor, etc.

Features:	Power/energy accuracy: class 0.02, class 0.05 Voltage measurement: 6 V~528 V (customizable) Current measurement: 1 mA~120 A Fundamental frequency: 45 Hz~65 Hz (optional 400Hz) Phase measurement uncertainty: 0.006°; (class 0.02)
Availability:

Quantity:



Inquire Add to Basket

Model:
TD3100
Brand:
TUNKIA

TD3100 Single-phase Multi function Standard Meter

1. Summary

TD3100 is a high-precision single-phase standard instrument that can simultaneously measure multiple electrical charges in the loop such as: voltage, current, frequency, phase, harmonics, active power/energy, reactive power/energy, apparent power, power factor, etc.

2. Features

• Power/energy accuracy: class 0.02, class 0.05

• Voltage measurement: 6 V~528 V (wider range can be customized).

• Current measurement: 1 mA~120 A.

• Fundamental frequency: 45 Hz~65 Hz (optional 400Hz).

• Phase measurement uncertainty: 0.006°; (class 0.02).

• Voltage and current support fully automatic range shifting.

• Voltage and current support 2~63rd harmonic measurement.

• Support comprehensive statistical analysis of the measured electricity.

• Standard energy pulse input/output.

• USB, RS232, LAN interfaces.

• LCD touch screen.

3. Application

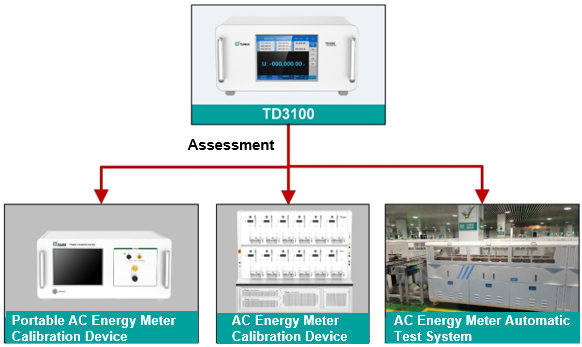

☆ Single Phase Energy Measurement Standard

TD3100 Single-phase Multi function Standard Meter Single-phase Energy Measurement Standard

• It can be used as a standard meter for single-phase energy meter verification devices that meet R46 requirements

☆ Calibrate Single Phase Power Source/Meter

TD3100 Single-phase Multi function Standard Meter Calibrate Single Phase Power Source/Meter

• It is suitable for calibrating single/three phase power sources with Class 0.05 and below, power meters/standard energy meters (stable power sources are required).

5. Specifications

5.1 Single-phase voltage measurement

Range	Resolution	Measurement uncertainty ( k = 2 ) *( ppmRD + ppmRG ) [1]*		Temperature coefficient @ (15~30)°C *(ppmRD+ppmRG) /°C*
Range	Resolution	Class 0.05	Class 0.02	Class 0.05	Class 0.02
60 V	10 μV	200 + 50	60 + 40	< 10	0.5 + 0.5
120 V	0.1mV	200 + 50	60 + 40	< 10	0.5 + 0.5
240 V	0.1mV	200 + 50	60 + 40	< 10	0.5 + 0.5
480 V	0.1mV	200 + 50	60 + 40	< 10	0.5 + 0.5
Note [1]: RD is the reading value, RG is the range value, the same below.

• Measuring range: 6 V~528 V (wider range can be customized), 7-digit display, manual/automatic range shifting

5.2 Single-phase current measurement

(1) Class 0.02

Range	Resolution	Measurement uncertainty at different frequencies (Hz) (k = 2). *( ppmRD + ppmRG )*			Temperature coefficient @ (15~30)°C *(ppmRD+ppmRG) /°C*
Range	Resolution	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400
10 mA	10 nA	120 + 80	240 + 160	480 + 320	5 + 5
20 mA	10 nA	120 + 80	240 + 160	480 + 320	1.25 + 1.25
50 mA	10 nA	60 + 40	120 + 80	240 +160	0.5 + 0.5
100 mA	0.1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
200 mA	0.1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
500 mA	0.1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
1 A	1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
2 A	1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
5 A	1 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
10 A	10 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
20 A	10 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
50 A	10 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5
100 A	100 μA	60 + 40	120 + 80	240 +160	0.5 + 0.5

• Measuring range: 1 mA~120 A, 7-digit display, manual/automatic range shifting

(2) Class 0.05

Range	Resolution	Measurement uncertainty at different frequencies (Hz) (k = 2). *( ppmRD + ppmRG )*			Temperature coefficient @ (15~30)°C *ppmRD/°C**
Range	Resolution	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400	Temperature coefficient @ (15~30)°C *ppmRD/°C**
10 mA	10 nA	300 + 200	600 + 400	1200 + 800	< 30
20 mA	10 nA	300 + 200	600 + 400	1200 + 800	< 10
50 mA	10 nA	200 + 50	400 + 100	800 + 200	< 10
100 mA	0.1 μA	200 + 50	400 + 100	800 + 200	< 10
200 mA	0.1 μA	200 + 50	400 + 100	800 + 200	< 10
500 mA	0.1 μA	200 + 50	400 + 100	800 + 200	< 10
1 A	1 μA	200 + 50	400 + 100	800 + 200	< 10
2 A	1 μA	200 + 50	400 + 100	800 + 200	< 10
5 A	1 μA	200 + 50	400 + 100	800 + 200	< 10
10 A	10 μA	200 + 50	400 + 100	800 + 200	< 10
20 A	10 μA	200 + 50	400 + 100	800 + 200	< 10
50 A	10 μA	200 + 50	400 + 100	800 + 200	< 10
100 A	100 μA	200 + 50	400 + 100	800 + 200	< 10

• Measuring range: 1 mA~120 A, 7-digit display, manual/automatic range shifting

5.3 Frequency/phase measurement

Class 0.02 specifications
Measurement Type			TD3100	TD3100-R
Frequency	Measuring range		45 Hz~65 Hz	45 Hz~400 Hz
	Minimum resolution		0.000 01 Hz	0.000 01 Hz
	Measurement uncertainty (k=2)		0.005%*RD	0.005%*RD
Phase	Measuring range		0~360°(I ≥ 50mA)	0~360°(I ≥ 50mA)
	Minimum resolution		0.000°	0.000 1°
	Measurement uncertainty (k=2)	45 Hz ≤ F ≤ 65 Hz	0.006°	0.006°
		65 Hz < F ≤ 200 Hz	——	0.02°
		200 Hz < F ≤ 400 Hz	——	0.04°
Class 0.05 specification
Measurement type			TD3100	TD3100-R
Frequency	Measuring range		45 Hz~65 Hz	45 Hz~400 Hz
	Minimum resolution		0.000 01 Hz	0.000 01 Hz
	Measurement uncertainty (k=2)		0.005%*RD	0.005%*RD
Phase	Measuring range		0~360°(I ≥ 50mA)	0~360°(I ≥ 50mA)
	Minimum resolution		0.000 1°	0.000 1°
	Measurement uncertainty (k=2)	45 Hz ≤ F ≤ 65 Hz	0.012°	0.012°
		65 Hz < F ≤ 200 Hz	——	0.04°
		200 Hz < F ≤ 400 Hz	——	0.08°

5.4 Power / Energy Measurement

Class 0.02 specifications
Voltage range	Current range	Factor	Measurement uncertainty at different frequencies (Hz) (k=2)
Voltage range	Current range	Factor	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400
30 V ≤ U ≤ 480 V	50 mA ≤ I ≤120 A	0.5L~1~0.5C	0.02%*RD	0.04%*RD	0.08%*RD
	10 mA ≤ I < 50 mA	1	0.02%*RD	0.06%*RD	0.16%*RD
	10 mA ≤ I < 50 mA	0.5L~1~0.5C	0.04%*RD	0.06%*RD	0.16%*RD
	5 mA ≤ I < 10 mA	1	0.04%*RD	-	-
	5 mA ≤ I < 10 mA	0.5L~1~0.5C	0.08%*RD	-	-
	1 mA ≤ I < 5 mA	1	0.04%*RD×5mA/I	-	-
Class 0.05 specifications
Voltage range	Current range	Factor	Measurement uncertainty at different frequencies (Hz) (k=2)
Voltage range	Current range	Factor	45 ≤ F ≤ 65	65 < F ≤ 200	200 < F ≤ 400
30 V ≤ U ≤ 480 V	50 mA ≤ I ≤120 A	0.5L~1~0.5C	0.05%*RD	0.1%*RD	0.2%*RD
	10 mA ≤ I < 50 mA	1	0.05%*RD	0.15%*RD	0.4%*RD
	10 mA ≤ I < 50 mA	0.5L~1~0.5C	0.08%*RD	0.15%*RD	0.4%*RD
	5 mA ≤ I < 10 mA	1	0.08%*RD	-	-
	5 mA ≤ I < 10 mA	0.5L~1~0.5C	0.15%*RD	-	-
	1 mA ≤ I < 5 mA	1	0.08%*RD×5mA/I	-	-

• Power/energy measurement range: a combination of AC voltage range and AC current range

• Power factor measurement range: -1.000 000... 0.000 000... 1.000 000

• Standard energy pulse output: 60 kHz for high-frequency full-scale values and 6 Hz for low-frequency full-scale values

• Standard energy pulse input: frequency≤ 200 kHz, voltage: 0... 3.3 V... 24 V

6. General Specifications

Power supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Maximum power consumption	60 VA
Warm-up time	30 minutes
Temperature performance	Working temperature: 5°C~45°C Storage temperature: -10°C~ 55°C
Humidity performance	Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C Storage humidity: (20%~80%) R·H, no condensation
Altitude	< 3000 m
Quality	Approx. 8.5 kg
Communication interface	RS232, USB, LAN
Size	400 mm(W) × 345 mm(D) × 206 mm(H) (with handle and feet)
Size

7. Ordering Information

TD3810 Three-phase Energy Device Field Inspection System

TD3310 Three Phase Multi-function Standard Meter

TD3250 Portable Three-phase Energy Meter Tester

☆ Comprehensive Analysis of AC power

S/N	Function
	Oscilloscope function: displays the waveform of the measured power in real time.
	Accurately measure the phase between the voltage and current of each phase.
	Calculate two types of harmonic distortion: THD/T (harmonic relative to full wave) and THD/F (harmonic relative to fundamental wave).
	Analysis the amplitude (RMS), content (%) and phase of the 2nd~63rd harmonic of each phase voltage or current in real time.
	Visualize the spectrum of each harmonic (100% fundamental) in the form of a histogram.

☆ Data Statistical Analysis Function

S/N	Function
	Data statistical analysis: calculate the maximum (Max), minimum value (min), peak-to-peak (P-P), average value (AVG), standard deviation (S.dev), etc. of the measured electricity.
	Battery Stability Test: curve the amount of electricity over time in real time.
	Normal distribution histogram: displays the distribution of the amount of electricity.
	Power stability test: automatically measure the output power stability of the tested energy device according to the algorithm of JJG 597-2005

☆ Comprehensive Analysis of AC power

S/N	Function
	Oscilloscope function: displays the waveform of the measured power in real time.
	Accurately measure the phase between the voltage and current of each phase.
	Calculate two types of harmonic distortion: THD/T (harmonic relative to full wave) and THD/F (harmonic relative to fundamental wave).
	Analysis the amplitude (RMS), content (%) and phase of the 2nd~63rd harmonic of each phase voltage or current in real time.
	Visualize the spectrum of each harmonic (100% fundamental) in the form of a histogram.

☆ Data Statistical Analysis Function

S/N	Function
	Data statistical analysis: calculate the maximum (Max), minimum value (min), peak-to-peak (P-P), average value (AVG), standard deviation (S.dev), etc. of the measured electricity.
	Battery Stability Test: curve the amount of electricity over time in real time.
	Normal distribution histogram: displays the distribution of the amount of electricity.
	Power stability test: automatically measure the output power stability of the tested energy device according to the algorithm of JJG 597-2005
