TH0330 is a series of standard resistance with ultra-high precision and stability, using new stress-free technology and has excellent long-term stability and extremely low temperature coefficient.
TH0330 is a series of standard resistance with ultra-high precision and stability, using new stress-free technology and has excellent long-term stability and extremely low temperature coefficient. With good anti-moisture and anti-oxidation properties, it can be used directly in the air. This type of resistance can be used with precision I/I conversion standards and precision voltmeters to achieve a wide range of precision current conversion measurements. It is also suitable for the calibration of precision transformers, sensors, measurement laboratory resistors, high-precision resistance meters, multi-function calibrators and high-precision digital multimeters.
2. Features
Nominal resistance value: 1 Ω ~ 1 kΩ (4 in total)
Using stress-free metal foil technology
Long-term stability: typical value 0.2 ppm/year
Low temperature coefficient: 0.05 ppm/℃@ (23℃±5℃)
Moisture resistance: 0.1 ppm/% RH
Pressure coefficient: 0.001 ppm/hpa
Adopt low thermoelectric potential and good structural design
Can be used directly at room temperature (18℃ ~ 28℃)
Small size and light weight

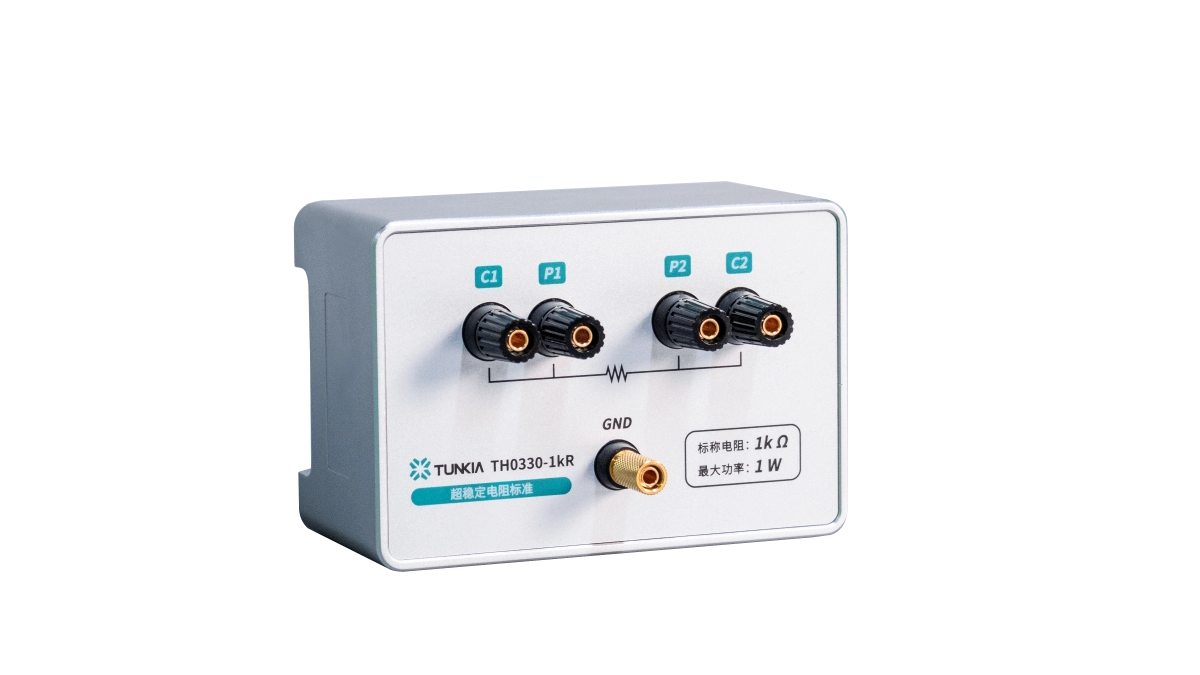

TH0330 Ultra-Stable Resistance Standard
1. Summary
TH0330 is a series of standard resistance with ultra-high precision and stability, using new stress-free technology and has excellent long-term stability and extremely low temperature coefficient. With good anti-moisture and anti-oxidation properties, it can be used directly in the air. This type of resistance can be used with precision I/I conversion standards and precision voltmeters to achieve a wide range of precision current conversion measurements. It is also suitable for the calibration of precision transformers, sensors, measurement laboratory resistors, high-precision resistance meters, multi-function calibrators and high-precision digital multimeters.
2. Features
Nominal resistance value: 1 Ω ~ 1 kΩ (4 in total)
Using stress-free metal foil technology
Long-term stability: typical value 0.2 ppm/year
Low temperature coefficient: 0.05 ppm/℃@ (23℃±5℃)
Moisture resistance: 0.1 ppm/% RH
Pressure coefficient: 0.001 ppm/hpa
Adopt low thermoelectric potential and good structural design
Can be used directly at room temperature (18℃ ~ 28℃)
Small size and light weight
3. Application
Calibrate high-precision resistance meter
Establish a precision current measurement system
Standard resistance value transfer
☆ Calibrate standards/precision resistors
TH0330 can be used with precision resistor bridges such as TH0210 to achieve transfer calibration of standard resistors (first and second class).
☆ Establish a precision current measurement system
TH0330 can be used with DC I/I conversion standard (ratio standard) and precision voltmeter to form a precision DC current measurement system.
Note: When measuring current, the maximum operating current of the standard resistor should not be exceeded; for precision current measurement, the influence of factors such as the resistor's rated power and power coefficient should also be considered.
3. Application
Calibrate high-precision resistance meter
Establish a precision current measurement system
Standard resistance value transfer
☆ Calibrate standards/precision resistors
TH0330 can be used with precision resistor bridges such as TH0210 to achieve transfer calibration of standard resistors (first and second class).
☆ Establish a precision current measurement system
TH0330 can be used with DC I/I conversion standard (ratio standard) and precision voltmeter to form a precision DC current measurement system.
Note: When measuring current, the maximum operating current of the standard resistor should not be exceeded; for precision current measurement, the influence of factors such as the resistor's rated power and power coefficient should also be considered.
4. Specification
Model
Nominal Resistance
Initial Deviation
(ppm)
Calibration Uncertainty
( ppm )
Annual Stability
( ppm )
Temperature Coefficient
( ppm/℃ )
Rated Power
( W )
Power Coefficient
( ppm/power )
TH0330-1R
1 Ω
2
2.5@ 23°C
0.2
0.05
@23°C±5°C
1.0
1
TH0330-10R
10 Ω
TH0330-100R
100 Ω
TH0330-1kR
1 kΩ
5. General Specification
Power Supply
——
Temperature Performance
Operating temperature: 18 °C~ 28 °C；
Storage temperature: 0 °C~ 50 °C；
Weight
Approx 2.5 kg
Wiring
4W
