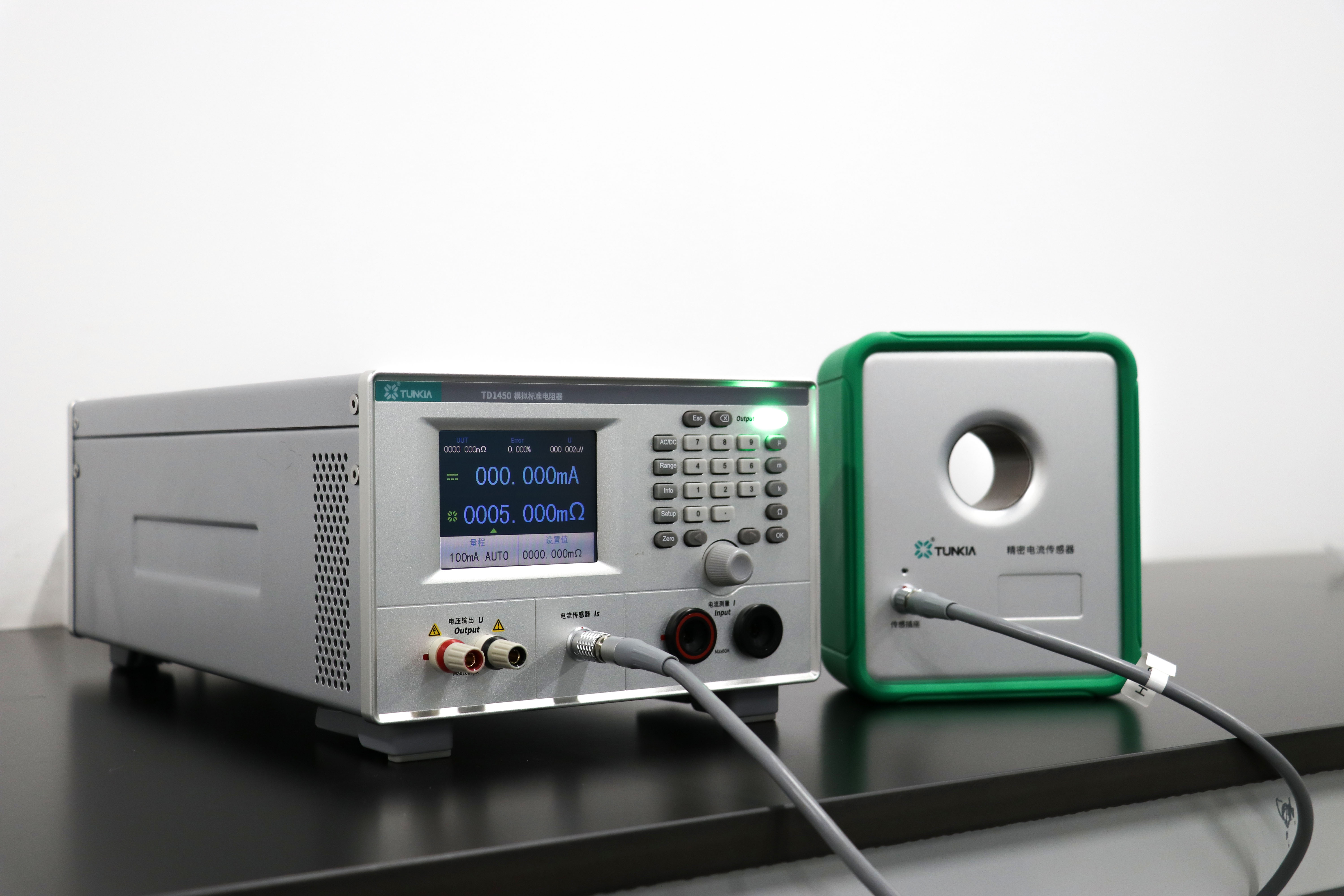

TD1450
TUNKIA
Availability: | |
---|---|
1. Summary
TD1450 is an instrument that can accurately simulate DC or AC standard resistance. It is suitable for calibrating loop resistance testers, DC resistance testers, ground bond resistance testers and other AC and DC low resistance instruments. The instrument is also a precision ammeter, suitable for measuring a wide range of DC or AC current.
2. Features
• Accuracy: Class 0.02/0.05
• Two specifications are available: DC and AC/DC measurement.
• Maximum current measurement: 60 A (120A, 240A, 600 A are optional).
• DC resistance simulation: 1 μΩ ~ 600 Ω (related to current specifications).
• AC resistance simulation: 1 μΩ ~ 600 Ω (related to current specifications).
• The four-wire method can effectively eliminate the error introduced by the wire resistance.
• The required resistance value can be set directly by the button, and the calibration efficiency is high.
• It has data statistics and analysis, and stability test functions.
• It displays voltage, current, resistance and other values at the same time.
• Good protection, high reliability, with self-calibration function.
• The device is small and light as a whole, suitable for carrying to the field.
• It has input current ripple or harmonic measurement function (optional).
• Special automatic test software (optional).
3. Application
4. Appearance

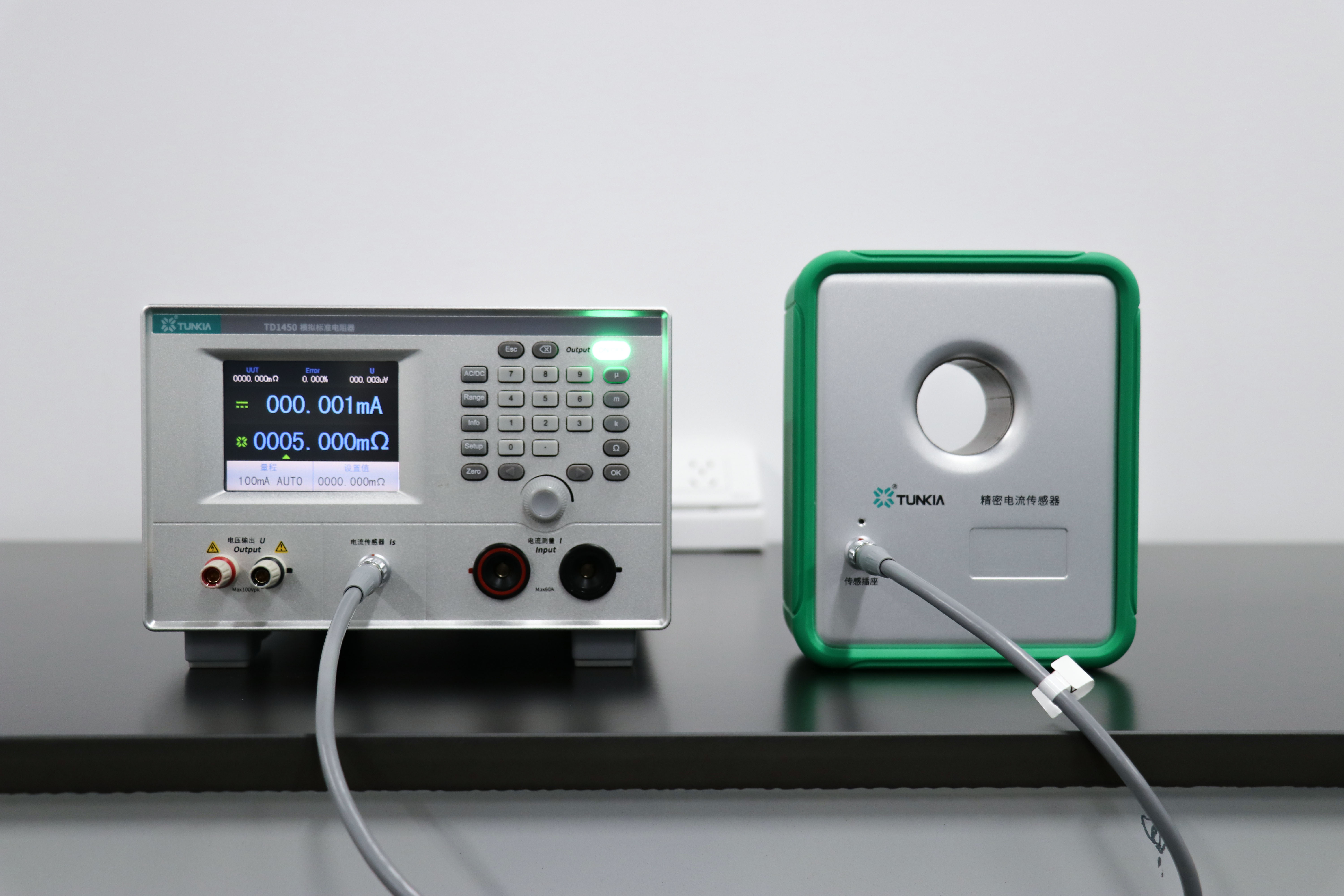

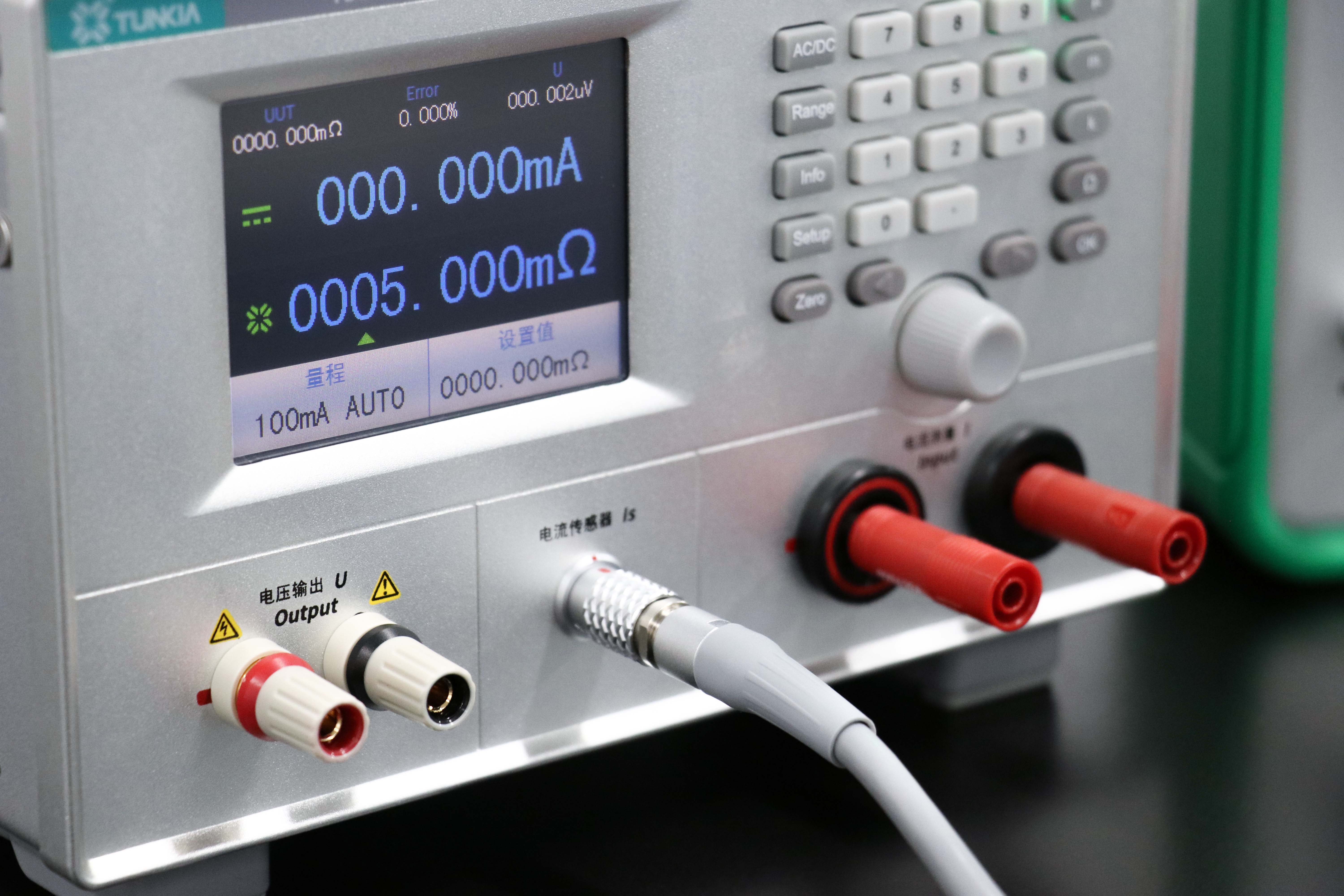

☆ Front Panel | |
S/N | Function |
Multiple electricity and waveforms are intuitively displayed to improve the usability of the instrument. | |
The button and knob operation panel allows users to set the resistance calibration value, making measurement work more convenient. | |
The voltage output terminal can achieve a maximum AC and DC voltage output of 100 Vpk. | |
The sensor terminal can be equipped with a precision AC and DC current sensor to expand the current measurement range. | |
The current measurement terminal can achieve a wide range of AC and DC current measurement from 10 mA to 60 A with one wiring. | |
The foldable legs can raise the instrument by about 15° to obtain the best operation and reading angle. | |
The handle makes it easy for users to carry the instrument. |

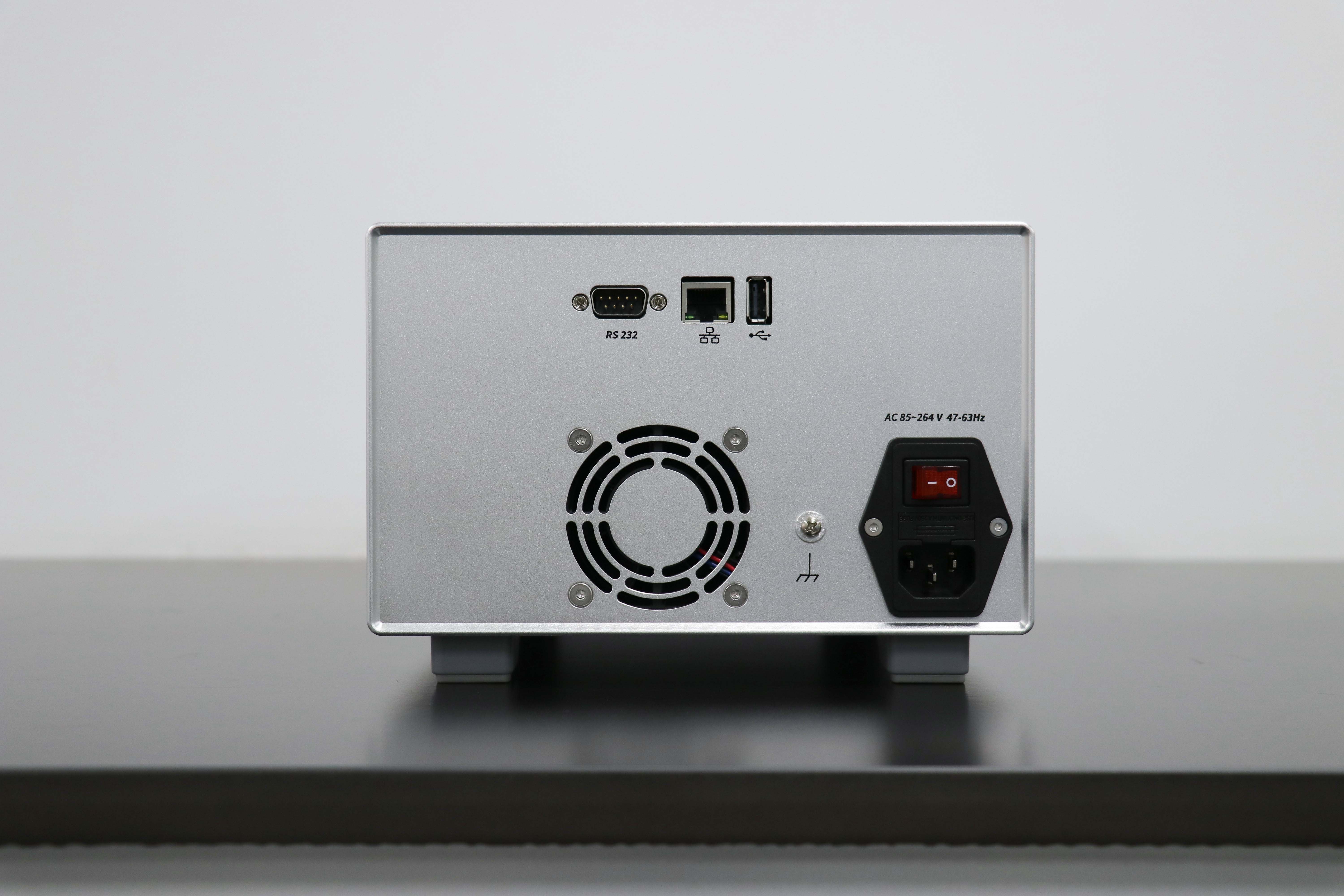

☆ Rear Panel | |
S/N | Function |
Rich communication interfaces: including RS232, USB, LAN, which is convenient for users to build a fully automatic test system. | |
High-power cooling fan: good cooling system ensures long-term stable operation of the instrument. | |
Casing ground: Before using the equipment, make sure that the casing ground is reliably grounded. | |
Power interface: AC 85 ~ 264 V power input interface with switch and fuse. |
1. Summary
TD1450 is an instrument that can accurately simulate DC or AC standard resistance. It is suitable for calibrating loop resistance testers, DC resistance testers, ground bond resistance testers and other AC and DC low resistance instruments. The instrument is also a precision ammeter, suitable for measuring a wide range of DC or AC current.
2. Features
• Accuracy: Class 0.02/0.05
• Two specifications are available: DC and AC/DC measurement.
• Maximum current measurement: 60 A (120A, 240A, 600 A are optional).
• DC resistance simulation: 1 μΩ ~ 600 Ω (related to current specifications).
• AC resistance simulation: 1 μΩ ~ 600 Ω (related to current specifications).
• The four-wire method can effectively eliminate the error introduced by the wire resistance.
• The required resistance value can be set directly by the button, and the calibration efficiency is high.
• It has data statistics and analysis, and stability test functions.
• It displays voltage, current, resistance and other values at the same time.
• Good protection, high reliability, with self-calibration function.
• The device is small and light as a whole, suitable for carrying to the field.
• It has input current ripple or harmonic measurement function (optional).
• Special automatic test software (optional).
3. Application
4. Appearance
☆ Front Panel | |
S/N | Function |
Multiple electricity and waveforms are intuitively displayed to improve the usability of the instrument. | |
The button and knob operation panel allows users to set the resistance calibration value, making measurement work more convenient. | |
The voltage output terminal can achieve a maximum AC and DC voltage output of 100 Vpk. | |
The sensor terminal can be equipped with a precision AC and DC current sensor to expand the current measurement range. | |
The current measurement terminal can achieve a wide range of AC and DC current measurement from 10 mA to 60 A with one wiring. | |
The foldable legs can raise the instrument by about 15° to obtain the best operation and reading angle. | |
The handle makes it easy for users to carry the instrument. |
☆ Rear Panel | |
S/N | Function |
Rich communication interfaces: including RS232, USB, LAN, which is convenient for users to build a fully automatic test system. | |
High-power cooling fan: good cooling system ensures long-term stable operation of the instrument. | |
Casing ground: Before using the equipment, make sure that the casing ground is reliably grounded. | |
Power interface: AC 85 ~ 264 V power input interface with switch and fuse. |
5. Characteristic
☆ Analog Resistance Output |
• The four-wire wiring method can effectively eliminate the measurement error caused by the resistance of the test wire, and the measurement accuracy is higher; • Compared with the physical resistance box, the analog resistor has the following advantages: ① The resistance value is continuously adjustable, the adjustment fineness and the sensitivity are better; ② There is no influence of switch error, residual resistance error, contact resistance error, etc., and the measurement data is accurate and reliable; ③ The physical resistor will cause the resistance value to change when overloaded, and even cause the resistor to be damaged in severe cases. This device has current overload capacity and impact resistance, and has been fully tested for electrostatic protection and electromagnetic compatibility, with good protection performance and high reliability. • The device has a self-calibration function to ensure that the value is accurate and stable for a long time. |
☆ Wide Range Current Measurement |
• Direct current measurement: A pair of quick-connect terminals can be used to directly measure a wide range of AC and DC currents from 10 mA to 60 A, solving the top problem of automatic range switching for ultra-wide range AC and DC currents. • Current conversion measurement: The instrument is equipped with a sensor-specific measurement interface, which can simultaneously power the sensor and measure its secondary signal. It can be connected to a precision current sensor (such as TH0540-T) to expand the current range to 100A, 200A, 500A or even larger. By setting the ratio of the current sensor on the instrument, the size of the primary current of the measured sensor can be directly displayed. • Solution advantages: This flexible combination of direct measurement and conversion measurement can effectively reduce the size and weight of the instrument while maintaining the wide range and large current measurement capabilities of the instrument, making it very convenient to carry out current measurement work; especially for on-site calibration, users can carry the instrument body or choose a suitable sensor according to the calibration requirements. |
☆ AC and DC Integrated Measurements |
• The instrument supports DC or AC (optional) measurement mode, and the AC frequency range is: 45 Hz ~ 65 Hz. • When measuring current, the distortion and ripple can be measured simultaneously. The maximum measurement bandwidth of DC ripple is 1 kHz, and AC supports the measurement of the 2nd to 16th harmonics (optional). • Solution advantages: The rich measurement modes can not only measure the errors of various DC current sources, AC current sources, DC low-resistance measuring instruments, and AC low-resistance measuring instruments, but also facilitate users to effectively evaluate the signal quality of the output power of DC or AC sources, which reduces the initial investment and effectively improves the test efficiency. |
5. Characteristic
☆ Analog Resistance Output |
• The four-wire wiring method can effectively eliminate the measurement error caused by the resistance of the test wire, and the measurement accuracy is higher; • Compared with the physical resistance box, the analog resistor has the following advantages: ① The resistance value is continuously adjustable, the adjustment fineness and the sensitivity are better; ② There is no influence of switch error, residual resistance error, contact resistance error, etc., and the measurement data is accurate and reliable; ③ The physical resistor will cause the resistance value to change when overloaded, and even cause the resistor to be damaged in severe cases. This device has current overload capacity and impact resistance, and has been fully tested for electrostatic protection and electromagnetic compatibility, with good protection performance and high reliability. • The device has a self-calibration function to ensure that the value is accurate and stable for a long time. |
☆ Wide Range Current Measurement |
• Direct current measurement: A pair of quick-connect terminals can be used to directly measure a wide range of AC and DC currents from 10 mA to 60 A, solving the top problem of automatic range switching for ultra-wide range AC and DC currents. • Current conversion measurement: The instrument is equipped with a sensor-specific measurement interface, which can simultaneously power the sensor and measure its secondary signal. It can be connected to a precision current sensor (such as TH0540-T) to expand the current range to 100A, 200A, 500A or even larger. By setting the ratio of the current sensor on the instrument, the size of the primary current of the measured sensor can be directly displayed. • Solution advantages: This flexible combination of direct measurement and conversion measurement can effectively reduce the size and weight of the instrument while maintaining the wide range and large current measurement capabilities of the instrument, making it very convenient to carry out current measurement work; especially for on-site calibration, users can carry the instrument body or choose a suitable sensor according to the calibration requirements. |
☆ AC and DC Integrated Measurements |
• The instrument supports DC or AC (optional) measurement mode, and the AC frequency range is: 45 Hz ~ 65 Hz. • When measuring current, the distortion and ripple can be measured simultaneously. The maximum measurement bandwidth of DC ripple is 1 kHz, and AC supports the measurement of the 2nd to 16th harmonics (optional). • Solution advantages: The rich measurement modes can not only measure the errors of various DC current sources, AC current sources, DC low-resistance measuring instruments, and AC low-resistance measuring instruments, but also facilitate users to effectively evaluate the signal quality of the output power of DC or AC sources, which reduces the initial investment and effectively improves the test efficiency. |
Range | Resolution | Measurement Uncertainty ( k=2 ) ( ppm*RD + ppm*RG ) [1] | Temperature Coefficient @( 15 ~ 30 )℃ ( ppm*RG/℃ ) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | ||
100 mA | 1 μA | 200 + 200 | 100 + 100 | 10 | 4 |
200 mA | 1 μA | 200 + 100 | 100 + 50 | 10 | 4 |
500 mA | 1 μA | 200 + 100 | 100 + 50 | 10 | 4 |
1 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
2 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
5 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
10 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
20 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
50 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
100 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
200 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
500 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Measuring range (TD1450-X-50A specification, maximum range: 50 A): 10 mA ~ 60 A
Measuring range (TD1450-X-100A specification, maximum range: 100 A): 10 mA ~ 120 A
Measuring range (TD1450-X-200A specification, maximum range: 200 A): 10 mA ~ 240 A
Measuring range (TD1450-X-500A specification, maximum range: 500 A): 10 mA ~ 600 A
Number of display digits: 6 decimal display
Ripple measurement frequency band: 1 Hz ~ 1 kHz, measurement uncertainty (k=2): 0.02%*RG, effective value
Input protection: Can withstand 2 times rated current 5 s overload
Range | Resolution | Measurement Uncertainty ( k=2 ) ( ppm*RD + ppm*RG ) [1] | Temperature Coefficient @( 15~30 )℃ ( ppm*RG/℃ ) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Claas 0.02 | ||
100 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
200 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
500 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
1 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
2 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
5 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
10 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
20 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
50 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
100 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
200 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
500 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Measuring range (TD1450-X-50A-B specification, maximum range: 50 A): 10 mA ~ 60 A
Measuring range (TD1450-X-100A-B specification, maximum range: 100 A): 10 mA ~ 120 A
Measuring range (TD1450-X-200A-B specification, maximum range: 200 A): 10 mA ~ 240 A
Measuring range (TD1450-X-500A-B specification, maximum range: 500 A): 10 mA ~ 600 A
Display digits: 6 decimal display
AC frequency: 45 Hz ~ 65 Hz, harmonic measurement: 2nd ~ 16th (optional)
Input protection: Can withstand 2 times rated current for 5 s overload
Current Range | Setting Range of Resistance Value R | Adjustment Fineness | Measurement Uncertainty ( k=2,ppm*RD+R0 ) [1] | |
Class 0.05 | Class 0.02 | |||
500 A [2] | 1 μΩ ≤ R ≤ 1.2 mΩ | 2 nΩ | 500 + 10 nΩ | 200 + 5 nΩ |
1.2 mΩ < R ≤ 6 mΩ | 20 nΩ | 500 | 200 | |
6 mΩ < R ≤ 60 mΩ | 200 nΩ | 500 | 200 | |
200 A [2] | 3 μΩ ≤ R ≤ 3 mΩ | 10 nΩ | 500 + 30 nΩ | 200 + 15 nΩ |
3 mΩ < R ≤ 30 mΩ | 100 nΩ | 500 | 200 | |
30 mΩ < R ≤ 300 mΩ | 1 μΩ | 500 | 200 | |
100 A [2] | 5 μΩ ≤ R ≤ 6 mΩ | 10 nΩ | 500 + 60 nΩ | 200 + 30 nΩ |
6 mΩ < R ≤ 60 mΩ | 100 nΩ | 500 | 200 | |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 500 | 200 | |
50 A | 10 μΩ ≤ R ≤ 12 mΩ | 20 nΩ | 500 + 120 nΩ | 200 + 60 nΩ |
12 mΩ < R ≤ 120 mΩ | 200 nΩ | 500 | 200 | |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 500 | 200 | |
20 A | 30 μΩ ≤ R ≤ 30 mΩ | 100 nΩ | 500 + 0.3 μΩ | 200 + 0.15 μΩ |
30 mΩ < R ≤300 mΩ | 1 μΩ | 500 | 200 | |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 500 | 200 | |
10 A | 50 μΩ ≤ R ≤ 60 mΩ | 100 nΩ | 500 + 0.6 μΩ | 200 + 0.3 μΩ |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 500 | 200 | |
600 mΩ < R ≤6 Ω | 10 μΩ | 500 | 200 | |
5 A | 100 μΩ ≤ R ≤ 120 mΩ | 200 nΩ | 500 + 1.2 μΩ | 200 + 0.6 μΩ |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 500 | 200 | |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 500 | 200 | |
2 A | 300 μΩ ≤ R ≤ 300 mΩ | 1 μΩ | 500 + 3 μΩ | 200+ 1.5 μΩ |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 500 | 200 | |
3 Ω < R ≤ 30 Ω | 100 μΩ | 500 | 200 | |
1 A | 500 μΩ ≤ R ≤ 600 mΩ | 1 μΩ | 500 + 6 μΩ | 200 + 3 μΩ |
600 mΩ < R ≤ 6 Ω | 10 μΩ | 500 | 200 | |
6 Ω < R ≤ 60 Ω | 100 μΩ | 500 | 200 | |
500 mA | 1 mΩ ≤ R ≤ 1.2 Ω | 2 μΩ | 500 + 12 μΩ | 200 + 6 μΩ |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 500 | 200 | |
12 Ω < R ≤ 120 Ω | 200 μΩ | 500 | 200 | |
200 mA | 3 mΩ ≤ R ≤ 3 Ω | 10 μΩ | 500 + 30 μΩ | 200 + 15 μΩ |
3 Ω < R ≤ 30 Ω | 100 μΩ | 500 | 200 | |
30 Ω < R ≤ 300 Ω | 1 mΩ | 500 | 200 | |
100 mA | 5 mΩ ≤ R ≤ 6 Ω | 10 μΩ | 500 + 60 μΩ | 200 + 30 μΩ |
6 Ω < R ≤ 60 Ω | 100 μΩ | 500 | 200 | |
60 Ω < R ≤ 600 Ω | 1 mΩ | 500 | 200 | |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Resistance simulation range (TD1450-X-50A specification, maximum range: 50 A): 10 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-100A specification, maximum range: 100 A): 5 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-200A specification, maximum range: 200 A): 3 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-500A specification, maximum range: 500 A): 1 μΩ ~ 600 Ω
Display digits: 6 decimal digits, set the resistance value through the numeric keys.
Current Range | Setting Range of Resistance Value R | Adjustment Fineness | Measurement Uncertainty ( k=2, ppm*RD + R0 ) [1] | |
Class 0.05 | Class 0.02 | |||
500 A [2] | 1 μΩ ≤ R ≤ 1.2 mΩ | 2 nΩ | 1000 + 0.2 μΩ | 500 + 0.1 μΩ |
1.2 mΩ < R ≤ 6 mΩ | 20 nΩ | 1000 | 500 | |
6 mΩ < R ≤ 60 mΩ | 200 nΩ | 1000 | 500 | |
200 A [2] | 3 μΩ ≤ R ≤ 3 mΩ | 10 nΩ | 1000 + 0.4 μΩ | 500 + 0.2 μΩ |
3 mΩ < R ≤ 30 mΩ | 100 nΩ | 1000 | 500 | |
30 mΩ < R ≤ 300 mΩ | 1μΩ | 1000 | 500 | |
100 A [2] | 5 μΩ ≤ R ≤ 6 mΩ | 10 nΩ | 1000 + 1 μΩ | 500 + 0.5 μΩ |
6 mΩ < R ≤ 60 mΩ | 100 nΩ | 1000 | 500 | |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 1000 | 500 | |
50 A | 10 μΩ ≤ R ≤ 12 mΩ | 20 nΩ | 1000 + 2 μΩ | 500 + 1 μΩ |
12 mΩ < R ≤ 120 mΩ | 200 nΩ | 1000 | 500 | |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 1000 | 500 | |
20 A | 30 μΩ ≤ R ≤ 30 mΩ | 100 nΩ | 1000 + 4 μΩ | 500 + 2 μΩ |
30 mΩ < R ≤300 mΩ | 1 μΩ | 1000 | 500 | |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 1000 | 500 | |
10 A | 50 μΩ ≤ R ≤ 60 mΩ | 100 nΩ | 1000 + 10 μΩ | 500 + 5 μΩ |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 1000 | 500 | |
600 mΩ < R ≤6 Ω | 10 μΩ | 1000 | 500 | |
5 A | 100 μΩ ≤ R ≤ 120 mΩ | 200 nΩ | 1000 + 20 μΩ | 500 + 10 μΩ |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 1000 | 500 | |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 1000 | 500 | |
2 A | 300 μΩ ≤ R ≤ 300 mΩ | 1 μΩ | 1000 + 40 μΩ | 500 + 20 μΩ |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 1000 | 500 | |
3 Ω < R ≤ 30 Ω | 100 μΩ | 1000 | 500 | |
1 A | 500 μΩ ≤ R ≤ 600 mΩ | 1 μΩ | 1000 + 100 μΩ | 500 + 50 μΩ |
600 mΩ < R ≤ 6 Ω | 10 μΩ | 1000 | 500 | |
6 Ω < R ≤ 60 Ω | 100 μΩ | 1000 | 500 | |
500 mA | 1 mΩ ≤ R ≤ 1.2 Ω | 2 μΩ | 1000 + 200 μΩ | 500 + 100 μΩ |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 1000 | 500 | |
12 Ω < R ≤ 120 Ω | 200 μΩ | 1000 | 500 | |
200 mA | 3 mΩ ≤ R ≤ 3 Ω | 10 μΩ | 1000 + 400 μΩ | 500 + 200 μΩ |
3 Ω < R ≤ 30 Ω | 100 μΩ | 1000 | 500 | |
30 Ω < R ≤ 300 Ω | 1 mΩ | 1000 | 500 | |
100 mA | 5 mΩ ≤ R ≤ 6 Ω | 10 μΩ | 1000 + 1000 μΩ | 500 + 500 μΩ |
6 Ω < R ≤ 60 Ω | 100 μΩ | 1000 | 500 | |
60 Ω < R ≤ 600 Ω | 1 mΩ | 1000 | 500 | |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Resistance simulation range (TD1450-X-50A-B specification, maximum range: 50 A): 10 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-100A-B specification, maximum range: 100 A): 5 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-200A-B specification, maximum range: 200 A): 3 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-500A-B specification, maximum range: 500 A): 1 μΩ ~ 600 Ω
Display digits: 6 decimal digits, set the resistance value through the digital keys.
Power Supply | AC ( 85 ~ 264 ) V,( 47 ~ 63 ) Hz |
Maximum Power Consumption | 100 VA |
Warm-up Time | ≥ 30 min |
Temperature Performance | Working temperature: 18°C ~ 28°C; Storage temperature: -20°C ~ 70°C |
Humidity Performance | Working humidity: (40% ~ 80%) R·H, non-condensing Storage humidity: <80% R·H, non-condensing |
Communication Interface | LAN, USB, RS232 |
Screen Size | 3.5 inch |
Weight | Approx. 8.0 kg |
Dimensions | W * D * H = 215 mm * 420 mm * 150 mm |
Unit: mm |
Range | Resolution | Measurement Uncertainty ( k=2 ) ( ppm*RD + ppm*RG ) [1] | Temperature Coefficient @( 15 ~ 30 )℃ ( ppm*RG/℃ ) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Class 0.02 | ||
100 mA | 1 μA | 200 + 200 | 100 + 100 | 10 | 4 |
200 mA | 1 μA | 200 + 100 | 100 + 50 | 10 | 4 |
500 mA | 1 μA | 200 + 100 | 100 + 50 | 10 | 4 |
1 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
2 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
5 A | 10 μA | 200 + 100 | 100 + 50 | 10 | 4 |
10 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
20 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
50 A | 100 μA | 200 + 100 | 100 + 50 | 10 | 4 |
100 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
200 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
500 A [2] | 1 mA | 200 + 100 | 100 + 50 | 10 | 4 |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Measuring range (TD1450-X-50A specification, maximum range: 50 A): 10 mA ~ 60 A
Measuring range (TD1450-X-100A specification, maximum range: 100 A): 10 mA ~ 120 A
Measuring range (TD1450-X-200A specification, maximum range: 200 A): 10 mA ~ 240 A
Measuring range (TD1450-X-500A specification, maximum range: 500 A): 10 mA ~ 600 A
Number of display digits: 6 decimal display
Ripple measurement frequency band: 1 Hz ~ 1 kHz, measurement uncertainty (k=2): 0.02%*RG, effective value
Input protection: Can withstand 2 times rated current 5 s overload
Range | Resolution | Measurement Uncertainty ( k=2 ) ( ppm*RD + ppm*RG ) [1] | Temperature Coefficient @( 15~30 )℃ ( ppm*RG/℃ ) | ||
Class 0.05 | Class 0.02 | Class 0.05 | Claas 0.02 | ||
100 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
200 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
500 mA | 1 μA | 500 + 500 | 300 + 200 | 20 | 10 |
1 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
2 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
5 A | 10 μA | 500 + 500 | 300 + 200 | 20 | 10 |
10 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
20 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
50 A | 100 μA | 500 + 500 | 300 + 200 | 20 | 10 |
100 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
200 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
500 A [2] | 1 mA | 500 + 500 | 300 + 200 | 20 | 10 |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Measuring range (TD1450-X-50A-B specification, maximum range: 50 A): 10 mA ~ 60 A
Measuring range (TD1450-X-100A-B specification, maximum range: 100 A): 10 mA ~ 120 A
Measuring range (TD1450-X-200A-B specification, maximum range: 200 A): 10 mA ~ 240 A
Measuring range (TD1450-X-500A-B specification, maximum range: 500 A): 10 mA ~ 600 A
Display digits: 6 decimal display
AC frequency: 45 Hz ~ 65 Hz, harmonic measurement: 2nd ~ 16th (optional)
Input protection: Can withstand 2 times rated current for 5 s overload
Current Range | Setting Range of Resistance Value R | Adjustment Fineness | Measurement Uncertainty ( k=2,ppm*RD+R0 ) [1] | |
Class 0.05 | Class 0.02 | |||
500 A [2] | 1 μΩ ≤ R ≤ 1.2 mΩ | 2 nΩ | 500 + 10 nΩ | 200 + 5 nΩ |
1.2 mΩ < R ≤ 6 mΩ | 20 nΩ | 500 | 200 | |
6 mΩ < R ≤ 60 mΩ | 200 nΩ | 500 | 200 | |
200 A [2] | 3 μΩ ≤ R ≤ 3 mΩ | 10 nΩ | 500 + 30 nΩ | 200 + 15 nΩ |
3 mΩ < R ≤ 30 mΩ | 100 nΩ | 500 | 200 | |
30 mΩ < R ≤ 300 mΩ | 1 μΩ | 500 | 200 | |
100 A [2] | 5 μΩ ≤ R ≤ 6 mΩ | 10 nΩ | 500 + 60 nΩ | 200 + 30 nΩ |
6 mΩ < R ≤ 60 mΩ | 100 nΩ | 500 | 200 | |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 500 | 200 | |
50 A | 10 μΩ ≤ R ≤ 12 mΩ | 20 nΩ | 500 + 120 nΩ | 200 + 60 nΩ |
12 mΩ < R ≤ 120 mΩ | 200 nΩ | 500 | 200 | |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 500 | 200 | |
20 A | 30 μΩ ≤ R ≤ 30 mΩ | 100 nΩ | 500 + 0.3 μΩ | 200 + 0.15 μΩ |
30 mΩ < R ≤300 mΩ | 1 μΩ | 500 | 200 | |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 500 | 200 | |
10 A | 50 μΩ ≤ R ≤ 60 mΩ | 100 nΩ | 500 + 0.6 μΩ | 200 + 0.3 μΩ |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 500 | 200 | |
600 mΩ < R ≤6 Ω | 10 μΩ | 500 | 200 | |
5 A | 100 μΩ ≤ R ≤ 120 mΩ | 200 nΩ | 500 + 1.2 μΩ | 200 + 0.6 μΩ |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 500 | 200 | |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 500 | 200 | |
2 A | 300 μΩ ≤ R ≤ 300 mΩ | 1 μΩ | 500 + 3 μΩ | 200+ 1.5 μΩ |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 500 | 200 | |
3 Ω < R ≤ 30 Ω | 100 μΩ | 500 | 200 | |
1 A | 500 μΩ ≤ R ≤ 600 mΩ | 1 μΩ | 500 + 6 μΩ | 200 + 3 μΩ |
600 mΩ < R ≤ 6 Ω | 10 μΩ | 500 | 200 | |
6 Ω < R ≤ 60 Ω | 100 μΩ | 500 | 200 | |
500 mA | 1 mΩ ≤ R ≤ 1.2 Ω | 2 μΩ | 500 + 12 μΩ | 200 + 6 μΩ |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 500 | 200 | |
12 Ω < R ≤ 120 Ω | 200 μΩ | 500 | 200 | |
200 mA | 3 mΩ ≤ R ≤ 3 Ω | 10 μΩ | 500 + 30 μΩ | 200 + 15 μΩ |
3 Ω < R ≤ 30 Ω | 100 μΩ | 500 | 200 | |
30 Ω < R ≤ 300 Ω | 1 mΩ | 500 | 200 | |
100 mA | 5 mΩ ≤ R ≤ 6 Ω | 10 μΩ | 500 + 60 μΩ | 200 + 30 μΩ |
6 Ω < R ≤ 60 Ω | 100 μΩ | 500 | 200 | |
60 Ω < R ≤ 600 Ω | 1 mΩ | 500 | 200 | |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Resistance simulation range (TD1450-X-50A specification, maximum range: 50 A): 10 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-100A specification, maximum range: 100 A): 5 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-200A specification, maximum range: 200 A): 3 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-500A specification, maximum range: 500 A): 1 μΩ ~ 600 Ω
Display digits: 6 decimal digits, set the resistance value through the numeric keys.
Current Range | Setting Range of Resistance Value R | Adjustment Fineness | Measurement Uncertainty ( k=2, ppm*RD + R0 ) [1] | |
Class 0.05 | Class 0.02 | |||
500 A [2] | 1 μΩ ≤ R ≤ 1.2 mΩ | 2 nΩ | 1000 + 0.2 μΩ | 500 + 0.1 μΩ |
1.2 mΩ < R ≤ 6 mΩ | 20 nΩ | 1000 | 500 | |
6 mΩ < R ≤ 60 mΩ | 200 nΩ | 1000 | 500 | |
200 A [2] | 3 μΩ ≤ R ≤ 3 mΩ | 10 nΩ | 1000 + 0.4 μΩ | 500 + 0.2 μΩ |
3 mΩ < R ≤ 30 mΩ | 100 nΩ | 1000 | 500 | |
30 mΩ < R ≤ 300 mΩ | 1μΩ | 1000 | 500 | |
100 A [2] | 5 μΩ ≤ R ≤ 6 mΩ | 10 nΩ | 1000 + 1 μΩ | 500 + 0.5 μΩ |
6 mΩ < R ≤ 60 mΩ | 100 nΩ | 1000 | 500 | |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 1000 | 500 | |
50 A | 10 μΩ ≤ R ≤ 12 mΩ | 20 nΩ | 1000 + 2 μΩ | 500 + 1 μΩ |
12 mΩ < R ≤ 120 mΩ | 200 nΩ | 1000 | 500 | |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 1000 | 500 | |
20 A | 30 μΩ ≤ R ≤ 30 mΩ | 100 nΩ | 1000 + 4 μΩ | 500 + 2 μΩ |
30 mΩ < R ≤300 mΩ | 1 μΩ | 1000 | 500 | |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 1000 | 500 | |
10 A | 50 μΩ ≤ R ≤ 60 mΩ | 100 nΩ | 1000 + 10 μΩ | 500 + 5 μΩ |
60 mΩ < R ≤ 600 mΩ | 1 μΩ | 1000 | 500 | |
600 mΩ < R ≤6 Ω | 10 μΩ | 1000 | 500 | |
5 A | 100 μΩ ≤ R ≤ 120 mΩ | 200 nΩ | 1000 + 20 μΩ | 500 + 10 μΩ |
120 mΩ < R ≤ 1.2 Ω | 2 μΩ | 1000 | 500 | |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 1000 | 500 | |
2 A | 300 μΩ ≤ R ≤ 300 mΩ | 1 μΩ | 1000 + 40 μΩ | 500 + 20 μΩ |
300 mΩ < R ≤ 3 Ω | 10 μΩ | 1000 | 500 | |
3 Ω < R ≤ 30 Ω | 100 μΩ | 1000 | 500 | |
1 A | 500 μΩ ≤ R ≤ 600 mΩ | 1 μΩ | 1000 + 100 μΩ | 500 + 50 μΩ |
600 mΩ < R ≤ 6 Ω | 10 μΩ | 1000 | 500 | |
6 Ω < R ≤ 60 Ω | 100 μΩ | 1000 | 500 | |
500 mA | 1 mΩ ≤ R ≤ 1.2 Ω | 2 μΩ | 1000 + 200 μΩ | 500 + 100 μΩ |
1.2 Ω < R ≤ 12 Ω | 20 μΩ | 1000 | 500 | |
12 Ω < R ≤ 120 Ω | 200 μΩ | 1000 | 500 | |
200 mA | 3 mΩ ≤ R ≤ 3 Ω | 10 μΩ | 1000 + 400 μΩ | 500 + 200 μΩ |
3 Ω < R ≤ 30 Ω | 100 μΩ | 1000 | 500 | |
30 Ω < R ≤ 300 Ω | 1 mΩ | 1000 | 500 | |
100 mA | 5 mΩ ≤ R ≤ 6 Ω | 10 μΩ | 1000 + 1000 μΩ | 500 + 500 μΩ |
6 Ω < R ≤ 60 Ω | 100 μΩ | 1000 | 500 | |
60 Ω < R ≤ 600 Ω | 1 mΩ | 1000 | 500 | |
Note [1]: RD is the reading value, RG is the range value; [2]: The 100 A~500 A range is an option and must be paired with a TH0540 through-core current sensor of corresponding specifications. |
Resistance simulation range (TD1450-X-50A-B specification, maximum range: 50 A): 10 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-100A-B specification, maximum range: 100 A): 5 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-200A-B specification, maximum range: 200 A): 3 μΩ ~ 600 Ω
Resistance simulation range (TD1450-X-500A-B specification, maximum range: 500 A): 1 μΩ ~ 600 Ω
Display digits: 6 decimal digits, set the resistance value through the digital keys.
Power Supply | AC ( 85 ~ 264 ) V,( 47 ~ 63 ) Hz |
Maximum Power Consumption | 100 VA |
Warm-up Time | ≥ 30 min |
Temperature Performance | Working temperature: 18°C ~ 28°C; Storage temperature: -20°C ~ 70°C |
Humidity Performance | Working humidity: (40% ~ 80%) R·H, non-condensing Storage humidity: <80% R·H, non-condensing |
Communication Interface | LAN, USB, RS232 |
Screen Size | 3.5 inch |
Weight | Approx. 8.0 kg |
Dimensions | W * D * H = 215 mm * 420 mm * 150 mm |
Unit: mm |
