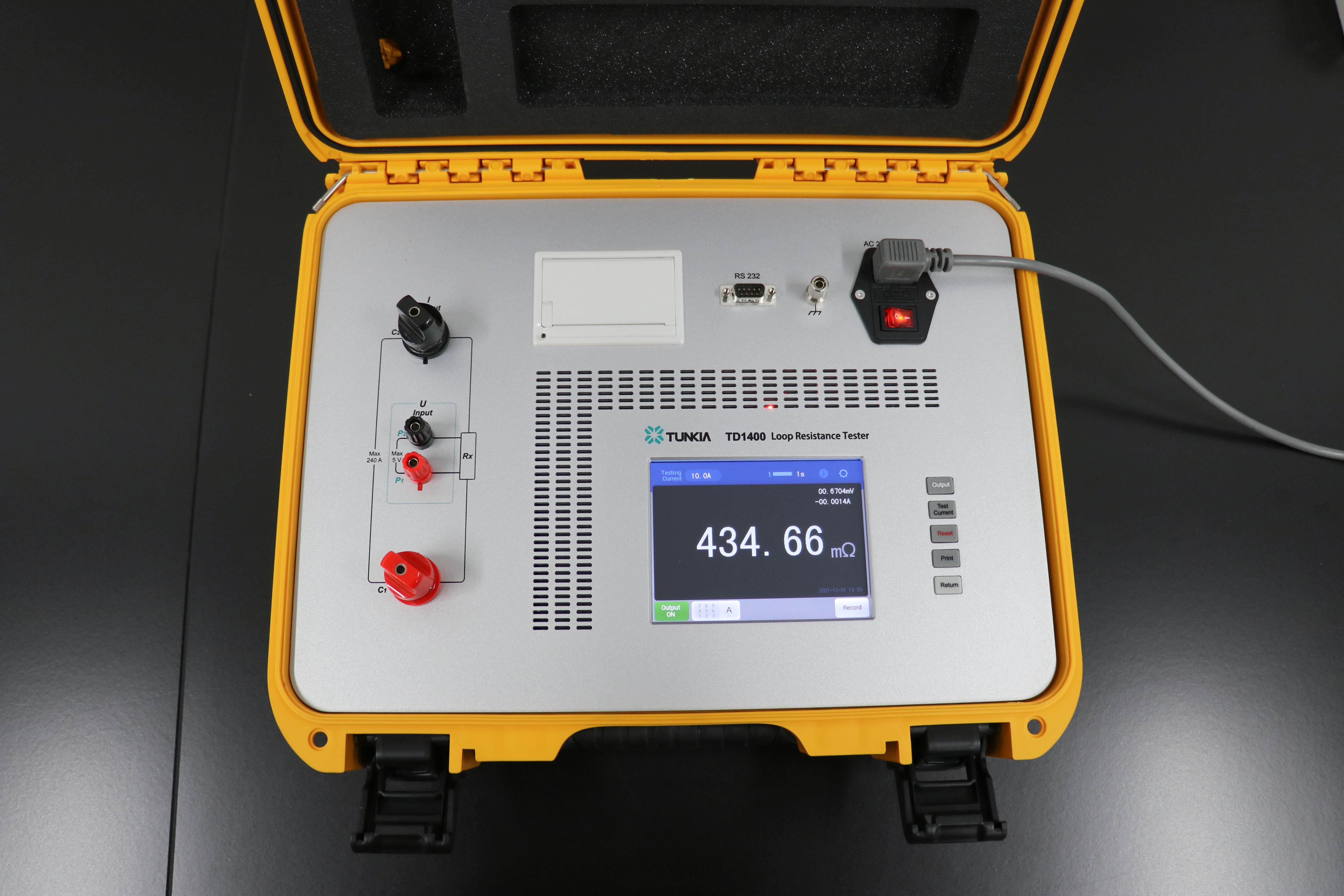

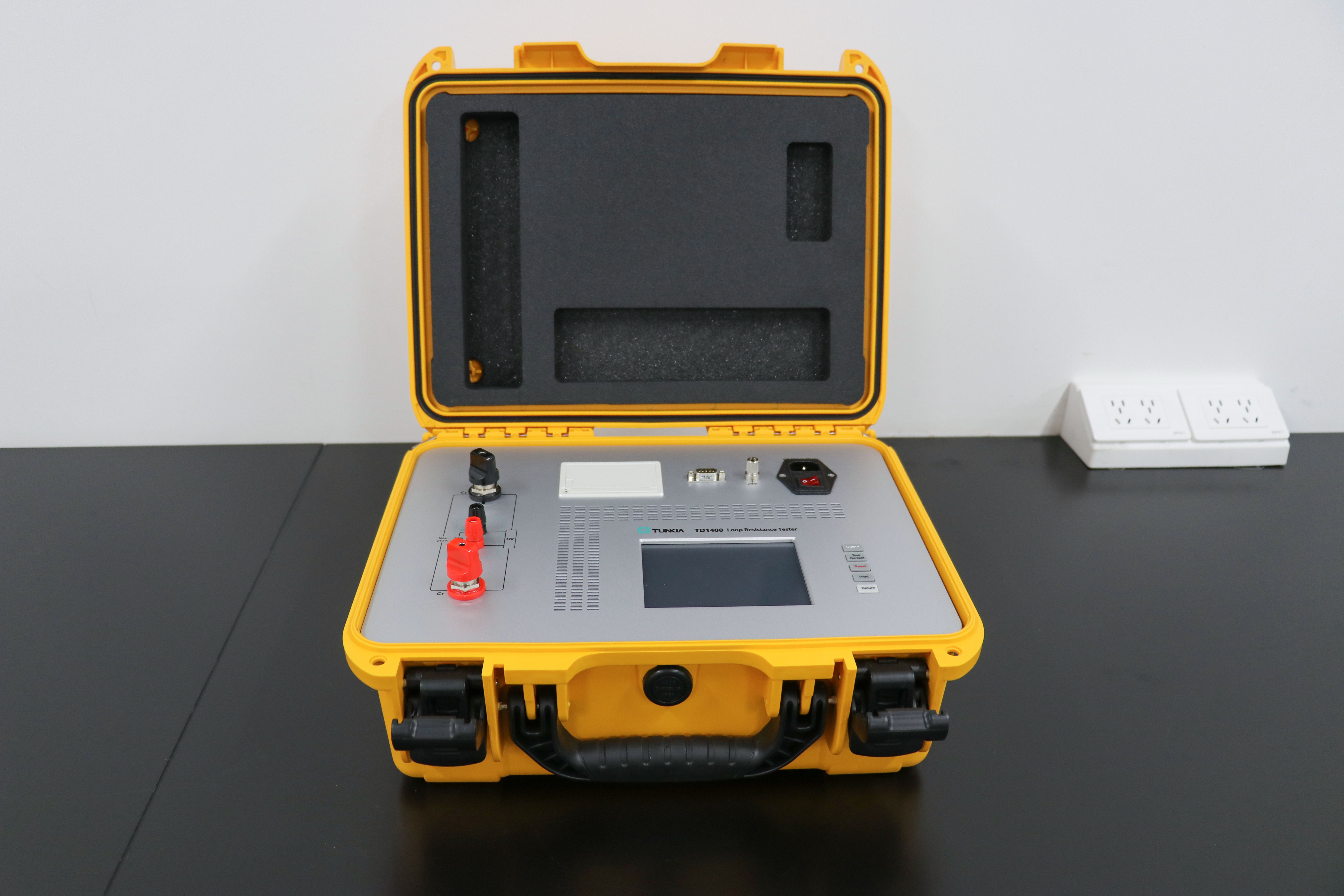

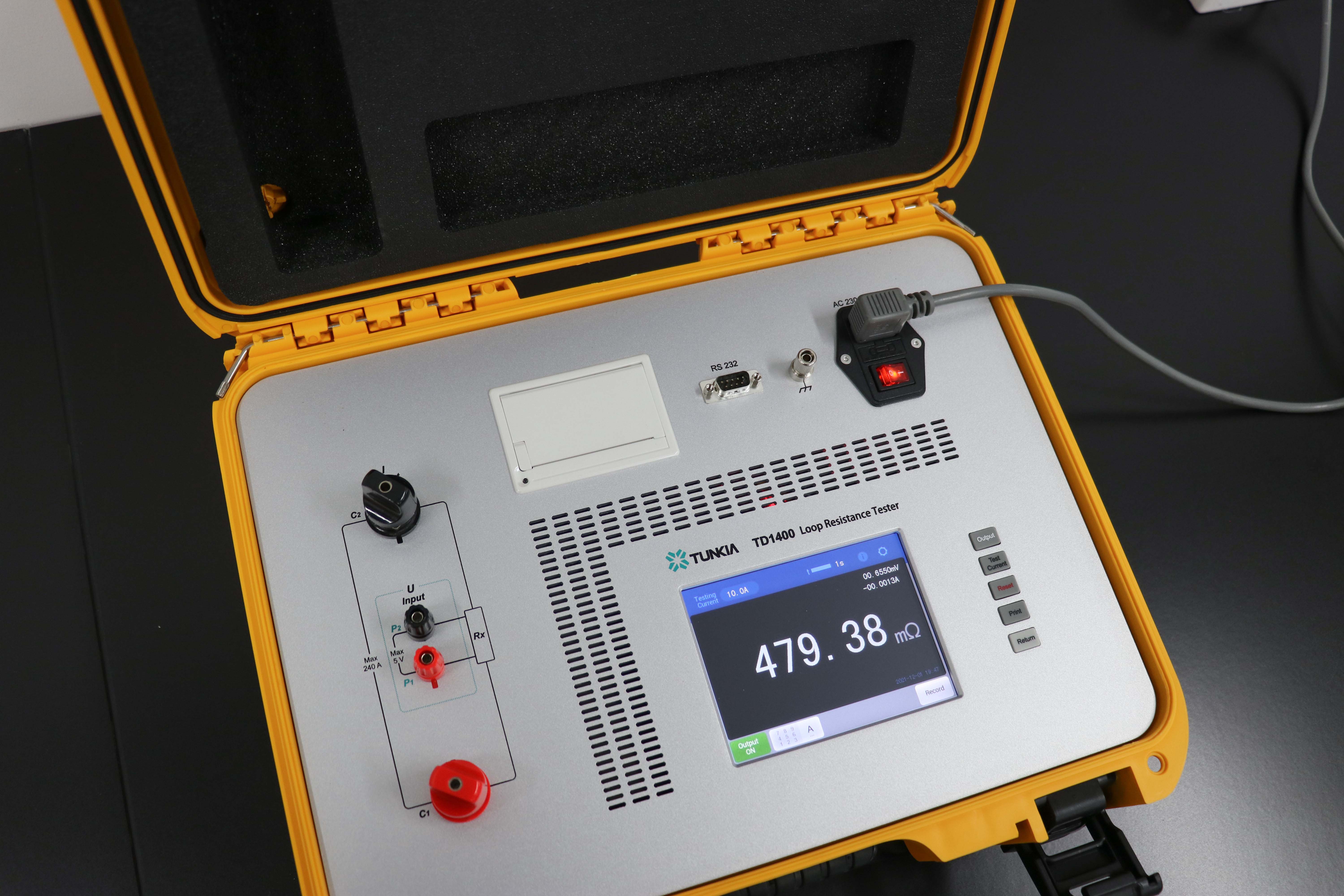

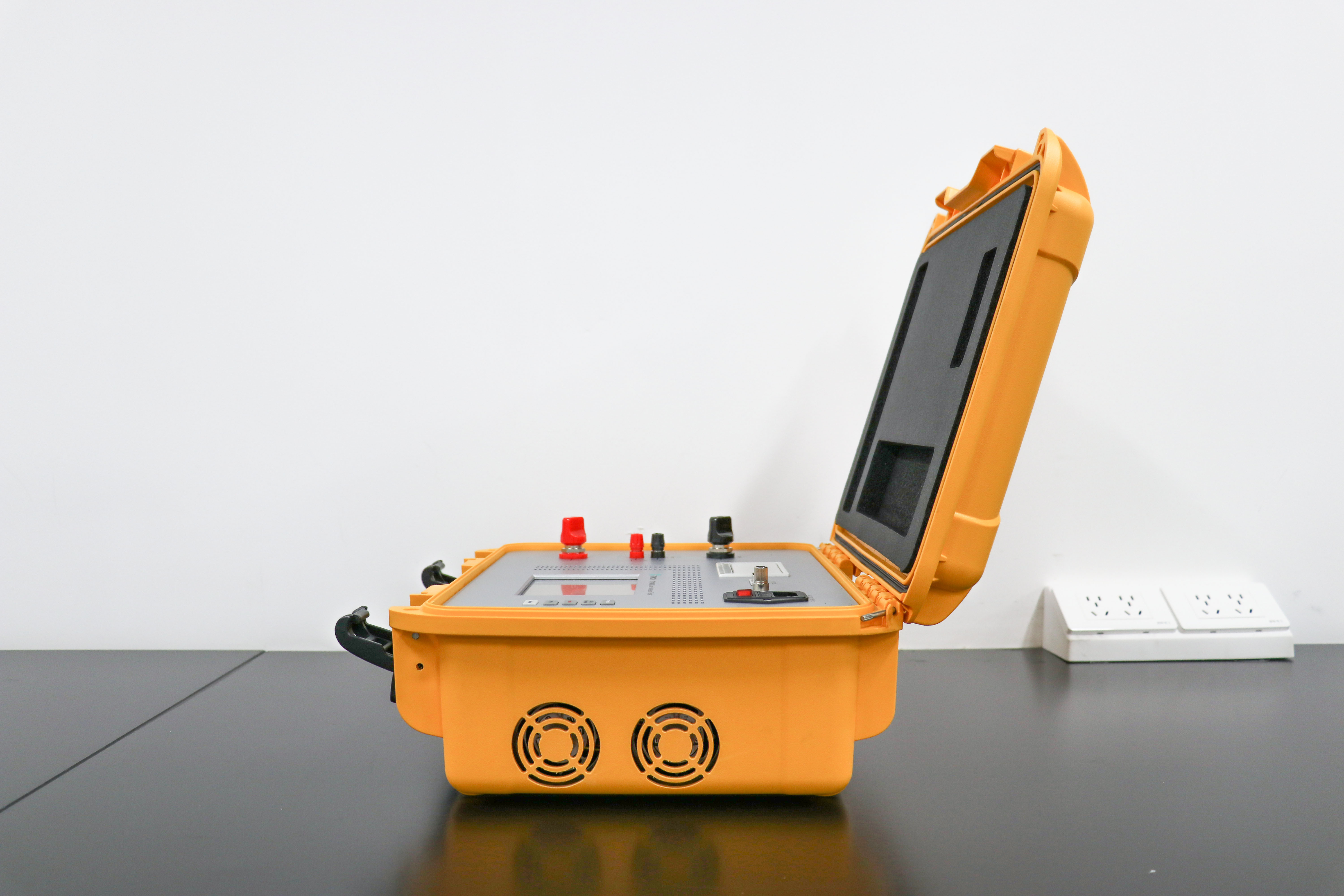

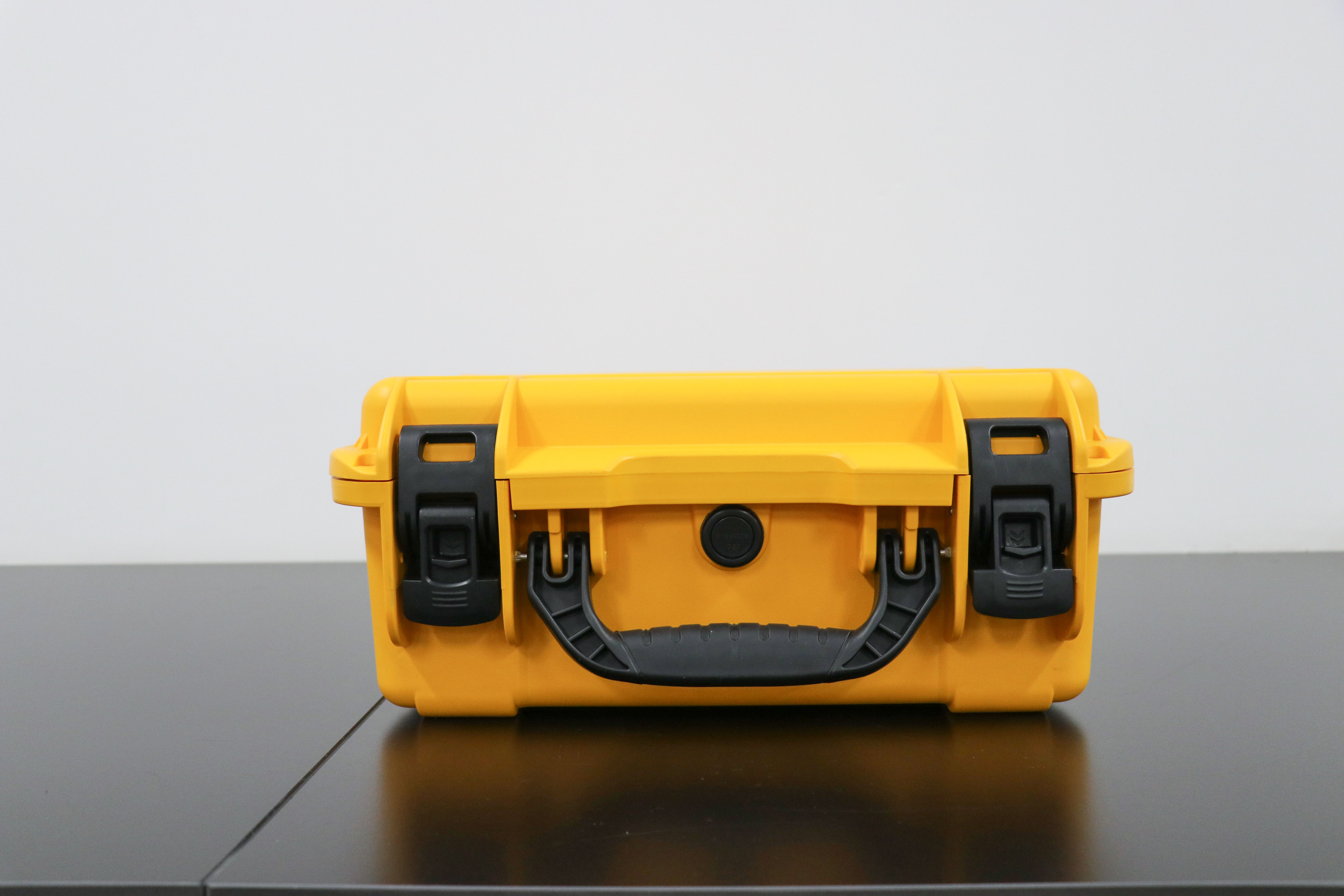

TD1400 Loop Resistance Tester

TD1400 is a portable instrument dedicated to measuring the loop resistance and contact resistance of switches, circuit breakers, copper-aluminum busbars and other equipment, with an accuracy of Class 0.2/ Class 0.5 available.

Availability:

Quantity:



Inquire Add to Basket

Model:
TD1400
Brand:
TUNKIA

TD1400 Loop Resistance Tester

1. Summary

TD1400 is a portable instrument dedicated to measuring the loopresistance andcontact resistanceof switches, circuit breakers, copper-aluminum busbars and other equipment, with an accuracy of Class 0.2/ Class 0.5 available.

2. Features

• Resistance measurement range: 0.01 mΩ ~ 180 mΩ;

• Support long-term output of 2A~100A (optional 200A) DC current.

• LCD touch screen

• Built-in micro printer for on-site printing of test results.

• Can work under -20°C ~ 45°C ambient conditions.

• Supports AC (198 V ~ 253 V) wide voltage input range.

• RS232 interface.

☆ Measure loop resistance / contact resistance

TD1400 Loop Resistance TesterMeasure loop resistance / contact resistance

• With a built-in constant current source, the instrument can continuously output 100 A (200A selection) large current;

• The four-wire wiring method can effectively eliminate the measurement error caused by the resistance of the test wire;

• It has a combination of voltage and current test wire.

3. Characteristics

☆ High stability constant current source

TD1400 Loop Resistance Tester High stability constant current source

• The instrument adopts the design principle of closed-loop negative feedback system, which can feedback and adjust the output power value in real time to ensure real-time stability.

•The typical stability of the DC current output is 0.02%/min.

TH0210 Standard Resistance Measuring Device

TH0260 Precision Resistance Analyzer

Test the current	Resistance measurement range	Resolution	Measurement uncertainty (k=2) (%*RD + μΩ) [1].
Test the current	Resistance measurement range	Resolution	Class 0.5	Class 0.2
20 A	0 ~ 180 mΩ	10 mΩ	0.5 + 10	0.2 + 10
50 A	0 ~ 60 mΩ	1 mΩ	0.5 + 10	0.2 + 10
100 A	0 ~ 25 mΩ	1 mΩ	0.5 + 10	0.2 + 10
200 A[2]	0 ~ 5 mΩ	0.1 mΩ	0.5 + 10	0.2 + 10
Note [1]: RD is the reading value; [2]: 200 A range is optional

Power supply	AC ( 220± 22 )V，( 50±2 ) Hz
Maximum power consumption	1000 VA
Warm-up time	≥ 30 min
Temperature performance	Working temperature: -20 °C ~ 45°C Storage temperature: -20 °C ~ 55°C
Humidity performance	Operating humidity: ( 20% ~ 85% ) R·H, no condensation Storage humidity: < 95% R· H, no condensation
Communication interface	RS232
Quality	Approx 8 kg
Size	380 mm(W)X 260 mm(D)X 180 mm(H)
Size

Test the current	Resistance measurement range	Resolution	Measurement uncertainty (k=2) (%*RD + μΩ) [1].
Test the current	Resistance measurement range	Resolution	Class 0.5	Class 0.2
20 A	0 ~ 180 mΩ	10 mΩ	0.5 + 10	0.2 + 10
50 A	0 ~ 60 mΩ	1 mΩ	0.5 + 10	0.2 + 10
100 A	0 ~ 25 mΩ	1 mΩ	0.5 + 10	0.2 + 10
200 A[2]	0 ~ 5 mΩ	0.1 mΩ	0.5 + 10	0.2 + 10
Note [1]: RD is the reading value; [2]: 200 A range is optional

Power supply	AC ( 220± 22 )V，( 50±2 ) Hz
Maximum power consumption	1000 VA
Warm-up time	≥ 30 min
Temperature performance	Working temperature: -20 °C ~ 45°C Storage temperature: -20 °C ~ 55°C
Humidity performance	Operating humidity: ( 20% ~ 85% ) R·H, no condensation Storage humidity: < 95% R· H, no condensation
Communication interface	RS232
Quality	Approx 8 kg
Size	380 mm(W)X 260 mm(D)X 180 mm(H)
Size
