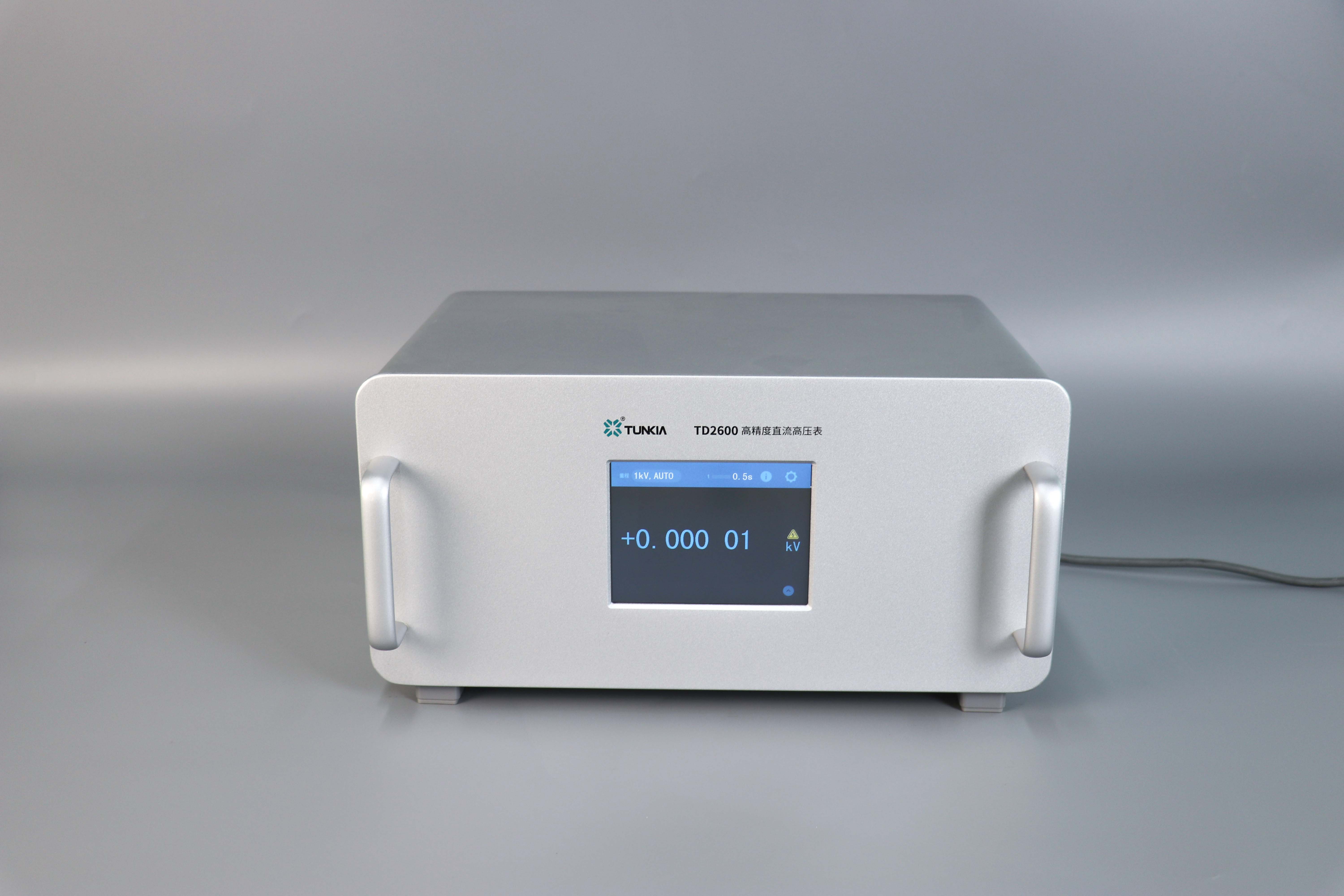

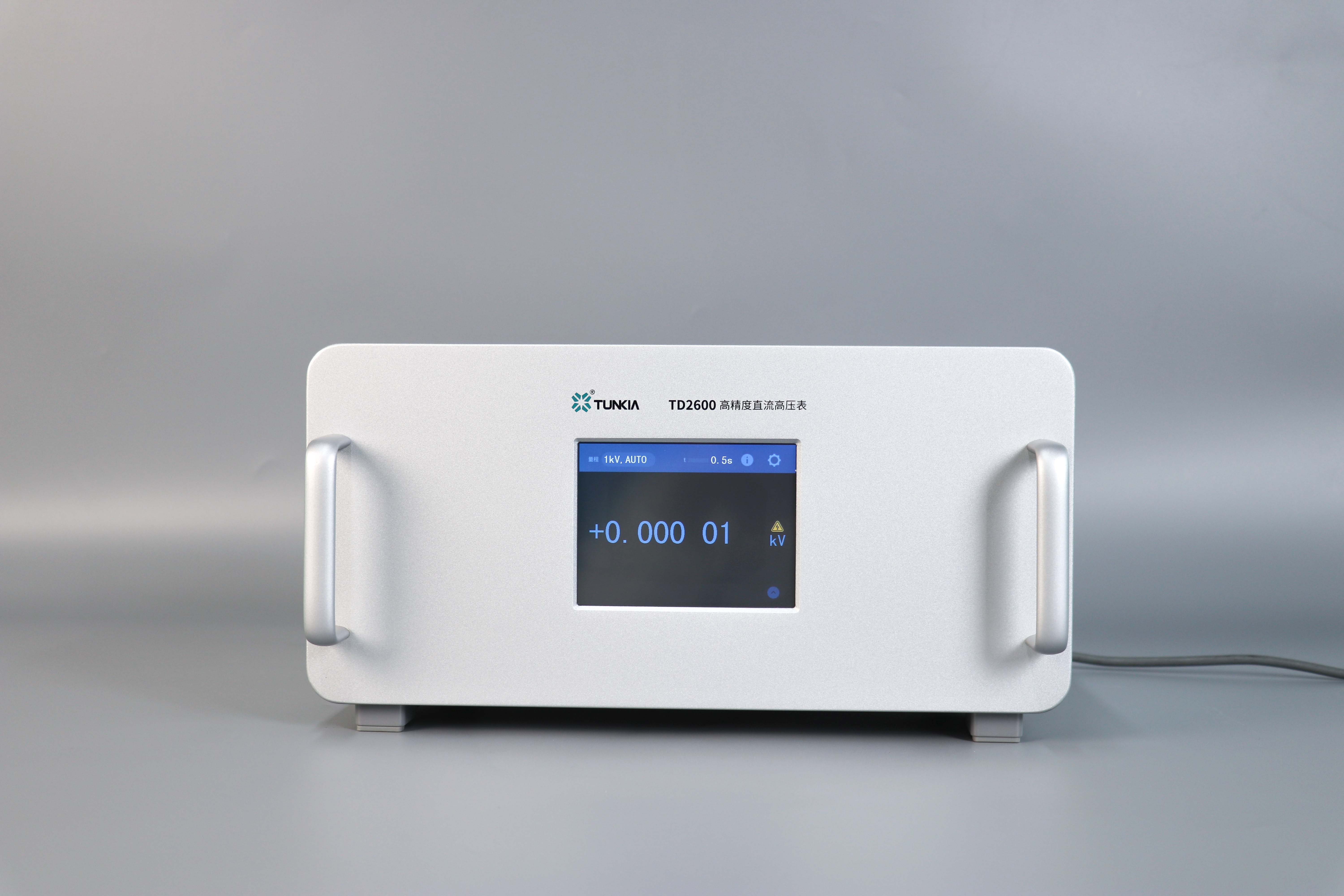

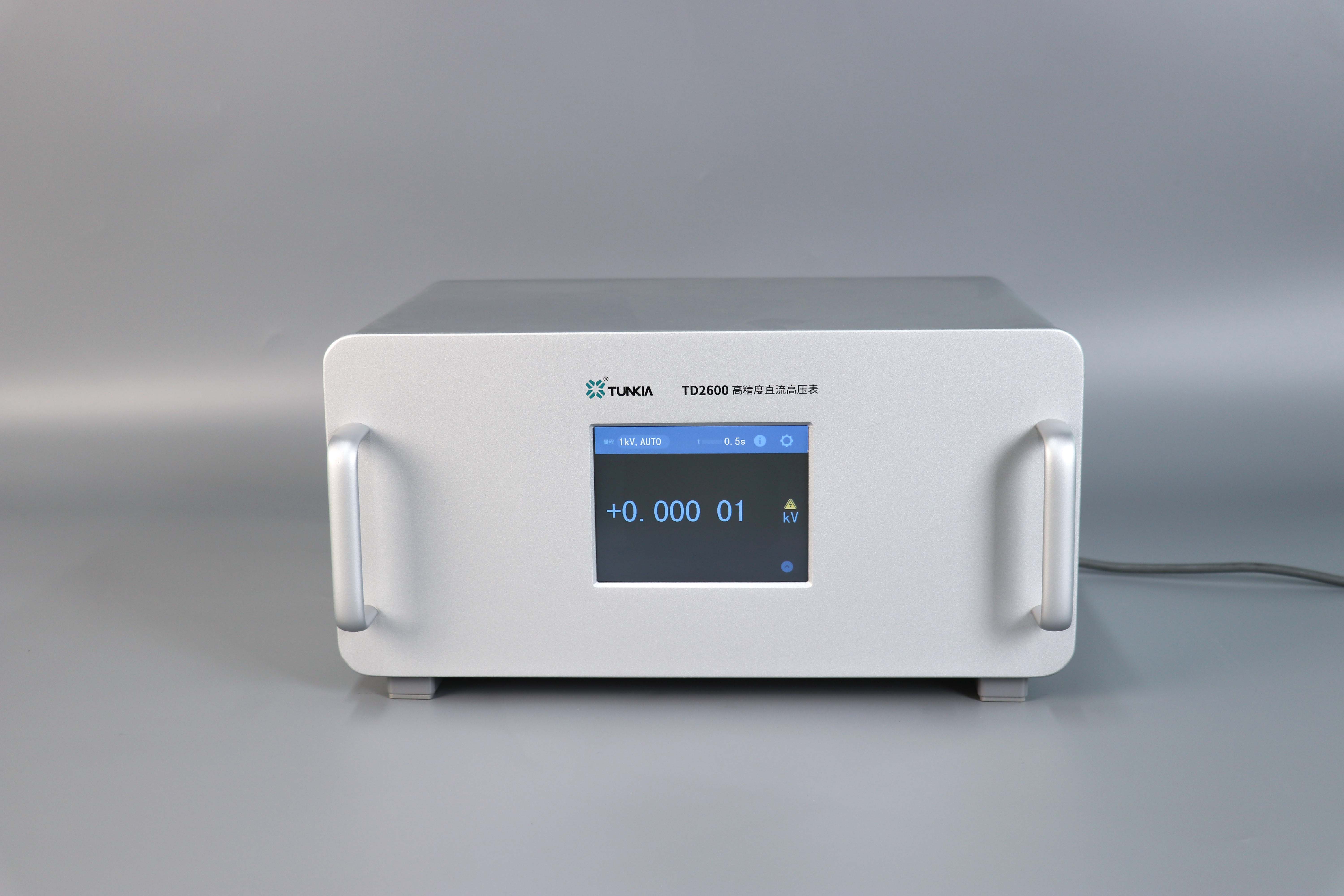

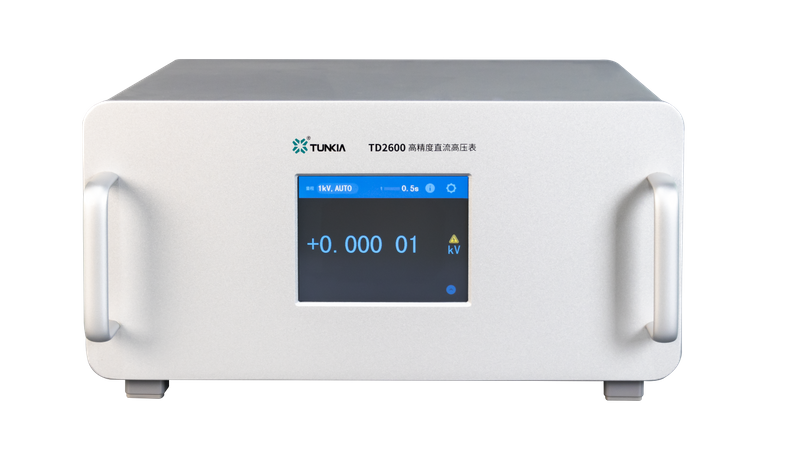

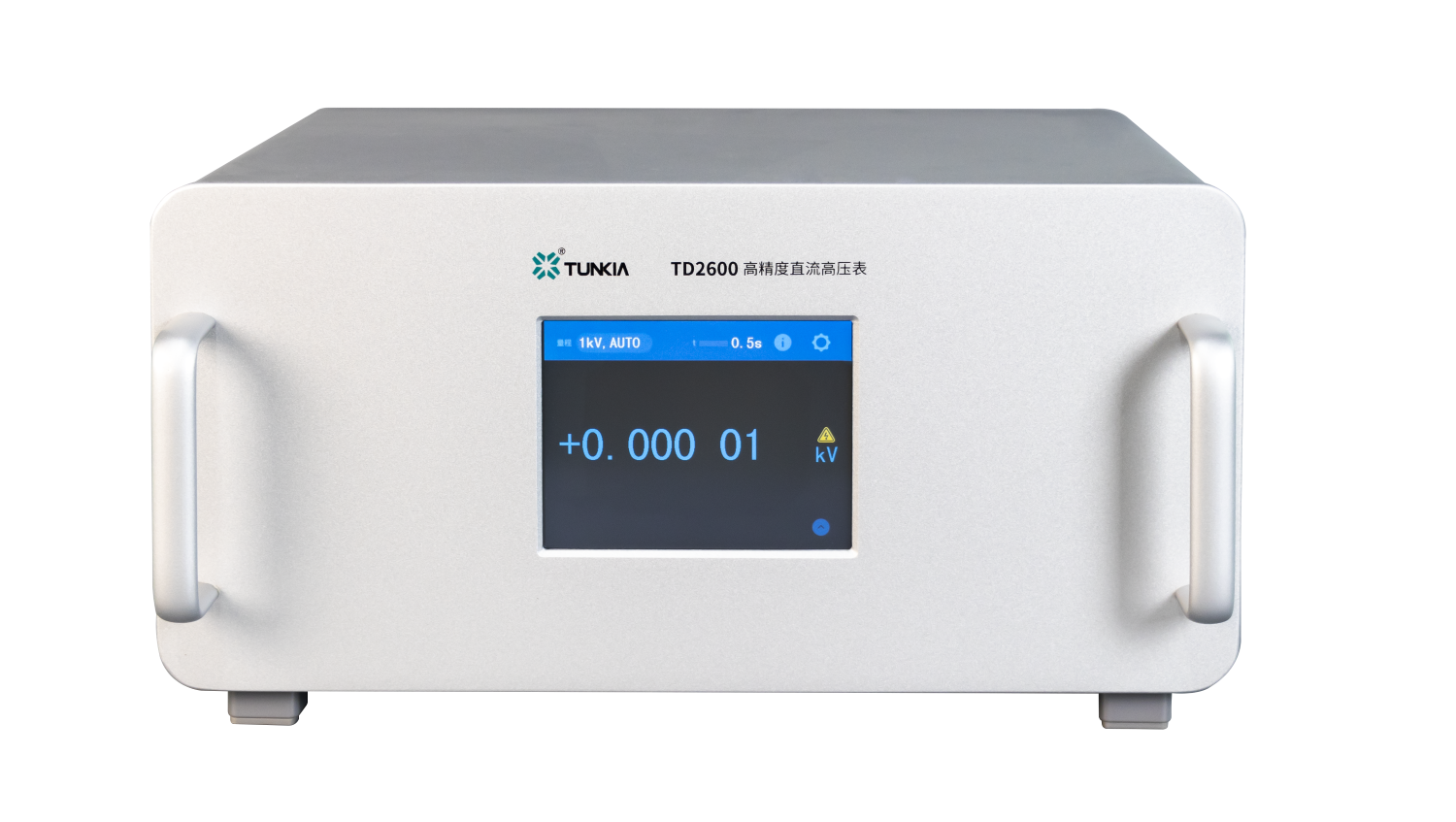

TUNKIA TD2600 Precision DC High Voltage Meter

Share to:

TD2600 Precision DC High Voltage Meter

Name: TD2600 Precision DC High Voltage Meter
Brand: TUNKIA
SKU: 565633967
Rating: 5.0 (34 reviews)

TD2600 is a wide range, high precision DC high voltage meter. It’s applied for calibrating DC high voltage source or meter, high voltage probe, etc.

Features:	DCV measurement range: 100 V ~ 5 kV. Accuracy class: 0.02, 0.05. Max. range 10 kV / 20 kV / 50 kV are optional.
Availability:

Quantity:



Inquire Add to Basket

Model:
TD2600
Brand:
TUNKIA

TD2600 Precision DC High Voltage Meter

1. Summary

TD2600 is a wide range, high precision DC high voltage meter. It’s applied for calibrating DC high voltage source or meter, high voltage probe, etc.

2. Features

• DCV measurement range: 100 V ~ 5 kV.

• Accuracy class: 0.02, 0.05.

• Max. range 10 kV / 20 kV / 50 kV are optional.

• Stability testing for HV source, data analysis.

• Short circuit and overload protection.

• LCD touch screen

• RS232 interface.

3. Application

☆ Calibration for DC High Voltage Source / Meter

TUNKIA TD2600 Precision DC High Voltage Meter

• DCV measurement: 100 V ~ 5 kV / 10 kV / 20 kV / 50 kV

• Apply for calibrating DC high voltage source or meter, high voltage probe, etc.

TD2400 AC High Voltage Standard Source

TD2410 High Voltage Meters Calibration Device

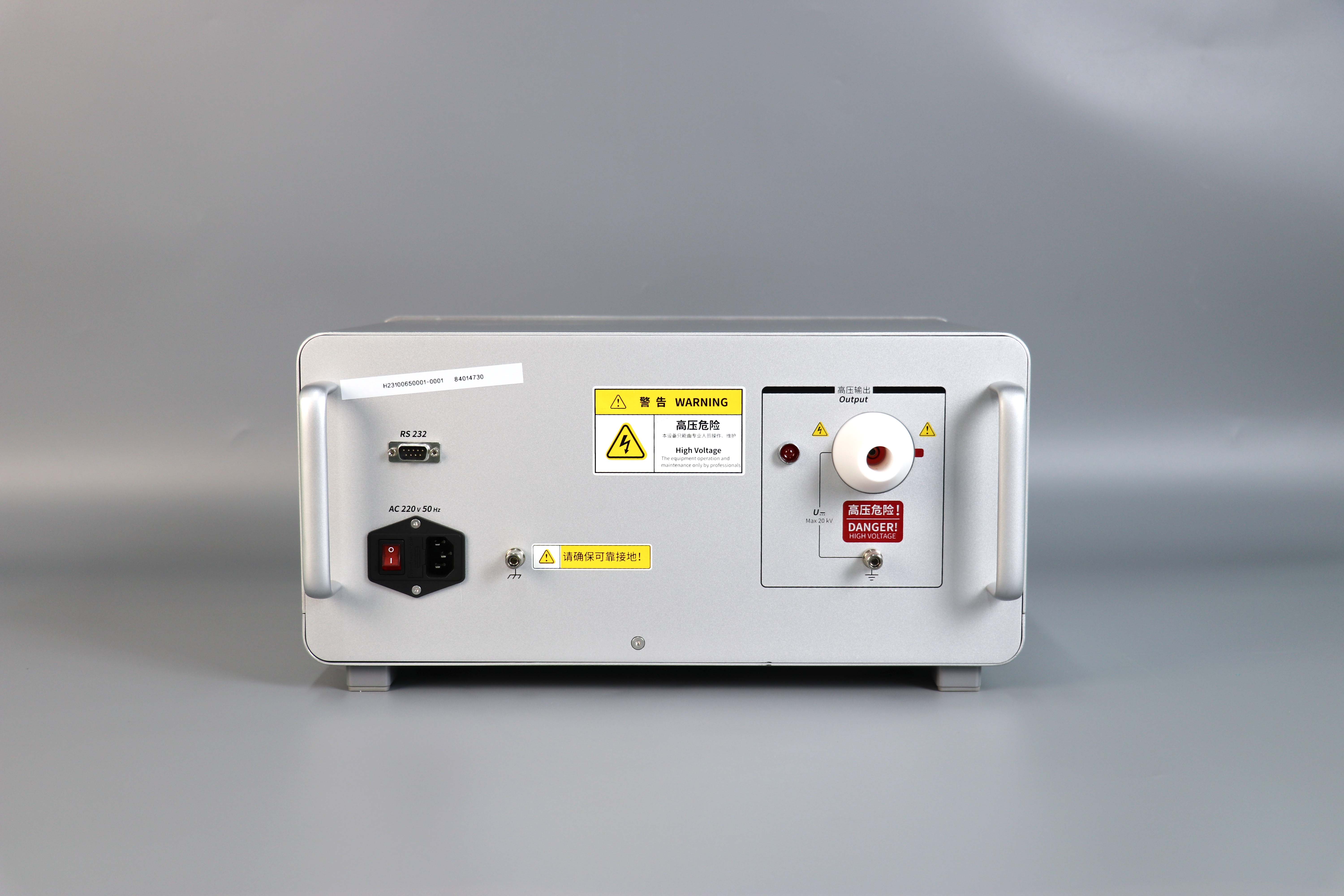

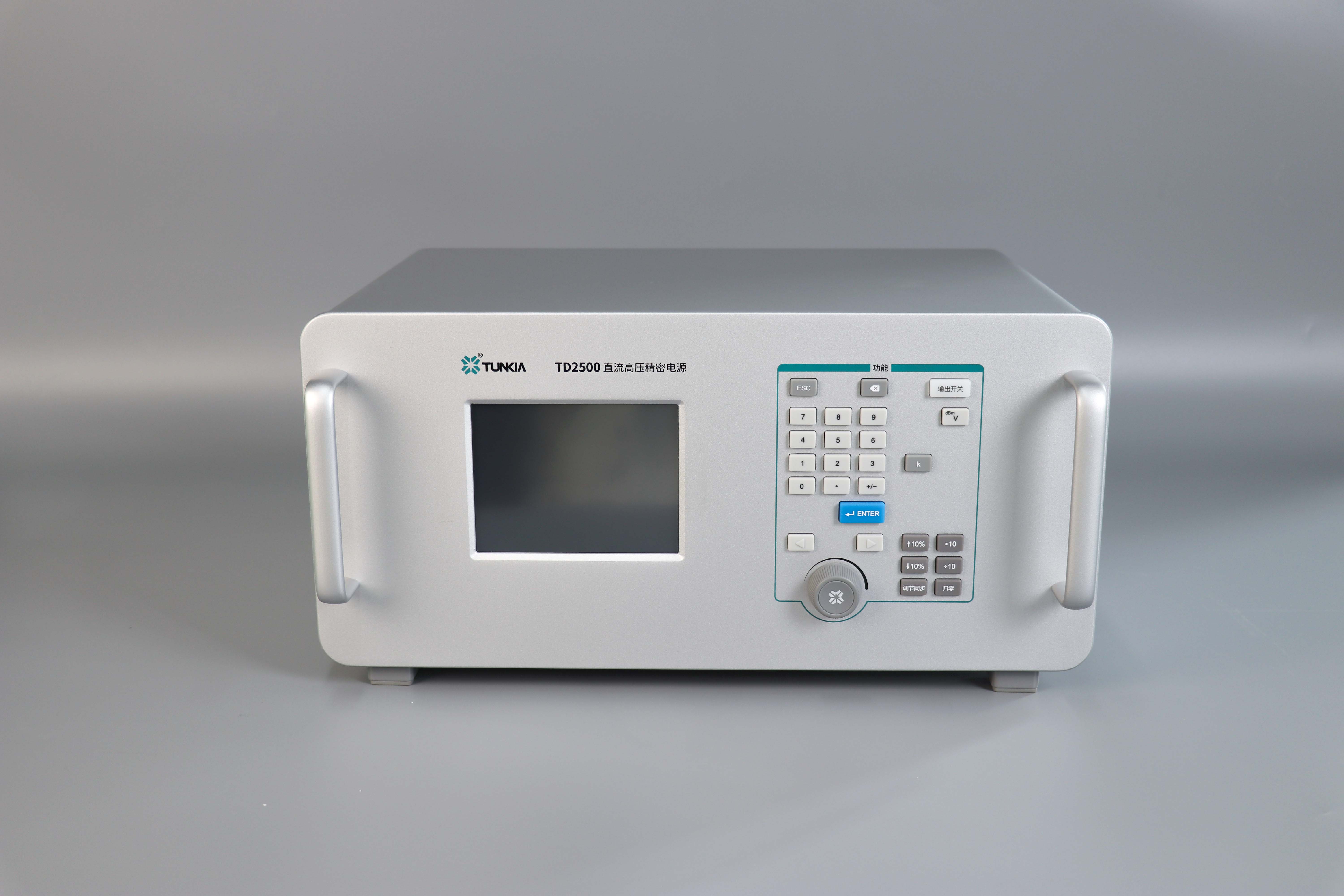

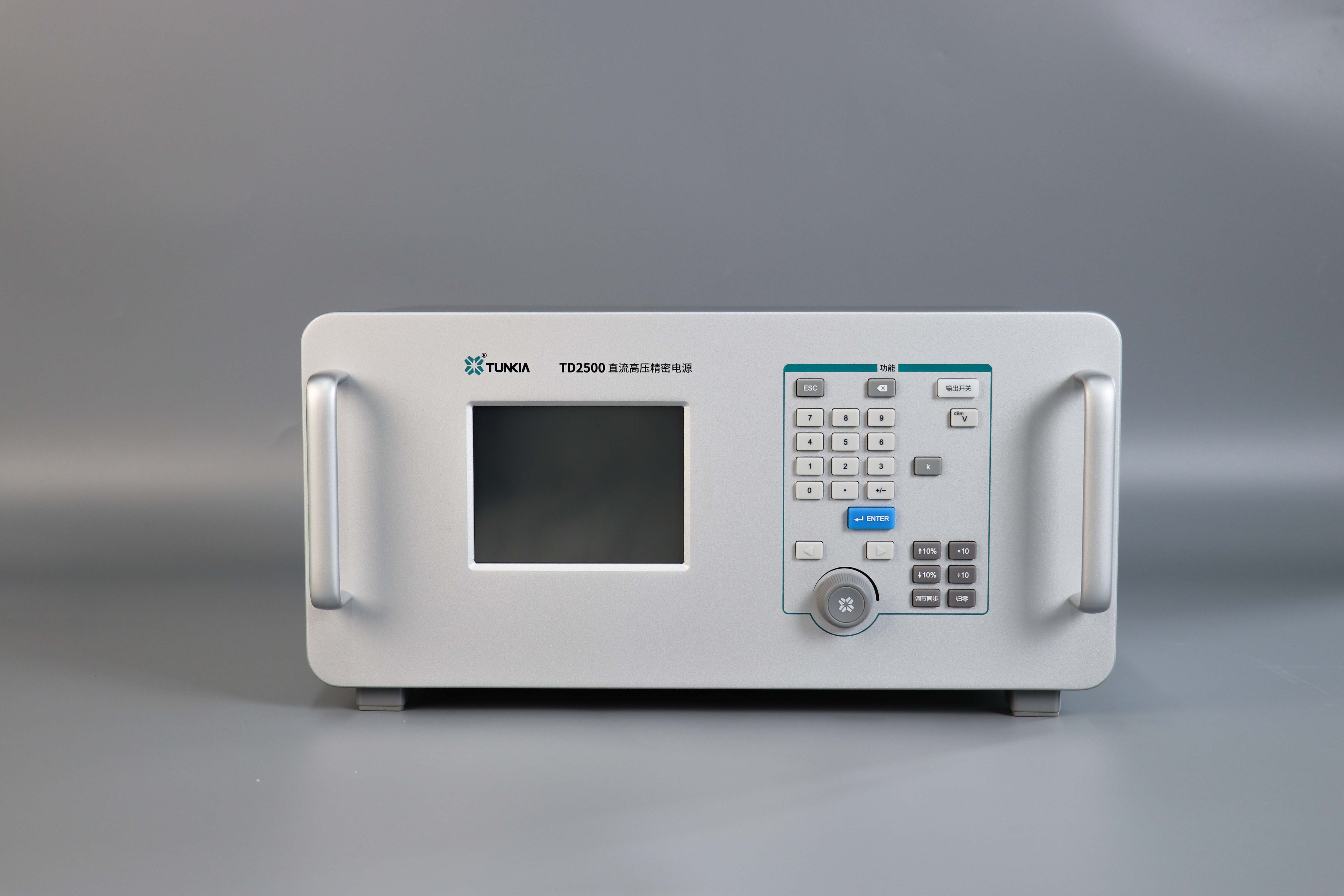

TD2500 DC High Voltage Precision Power Source

TD2550 Non-touch Static Voltmeters Calibration Device

TD2650 Precision AC DC High Voltage Meter

☆ Data Statistical Analysis Function

S/N	Function description
	Statistical analysis of data: Maximum value (Max), Minimum value (Min), Peak-to-Peak value (P-P) Average value (Avg), Standard variance (Std), Stability (Stab), etc.
	Data statistical analysis was performed after pressing the start button.

☆ Data Statistical Analysis Function

S/N	Function description
	Statistical analysis of data: Maximum value (Max), Minimum value (Min), Peak-to-Peak value (P-P) Average value (Avg), Standard variance (Std), Stability (Stab), etc.
	Data statistical analysis was performed after pressing the start button.

Model	Range (kV)	Accuracy ±(ppm of reading + ppm of range) [1]		Temperature Coefficient (±ppm/K)
Model	Range (kV)	Class 0.05	Class 0.02	Class 0.05	Class 0.02
TD2600-x-5kV	1、2、5	300 + 200	120 + 80	< 15	< 10
TD2600-x-10kV	1、2、5、10	300 + 200	120 + 80	< 15	< 10
TD2600-x-20kV	2、5、10、20	300 + 200	120 + 80	< 15	< 10
TD2600-x-50kV	5、10、20、50	300 + 200	-	< 15	-
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).

Power Supply	AC (220 ± 22) V，(50 ± 2) Hz
Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface

Model	Range (kV)	Accuracy ±(ppm of reading + ppm of range) [1]		Temperature Coefficient (±ppm/K)
Model	Range (kV)	Class 0.05	Class 0.02	Class 0.05	Class 0.02
TD2600-x-5kV	1、2、5	300 + 200	120 + 80	< 15	< 10
TD2600-x-10kV	1、2、5、10	300 + 200	120 + 80	< 15	< 10
TD2600-x-20kV	2、5、10、20	300 + 200	120 + 80	< 15	< 10
TD2600-x-50kV	5、10、20、50	300 + 200	-	< 15	-
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%).
