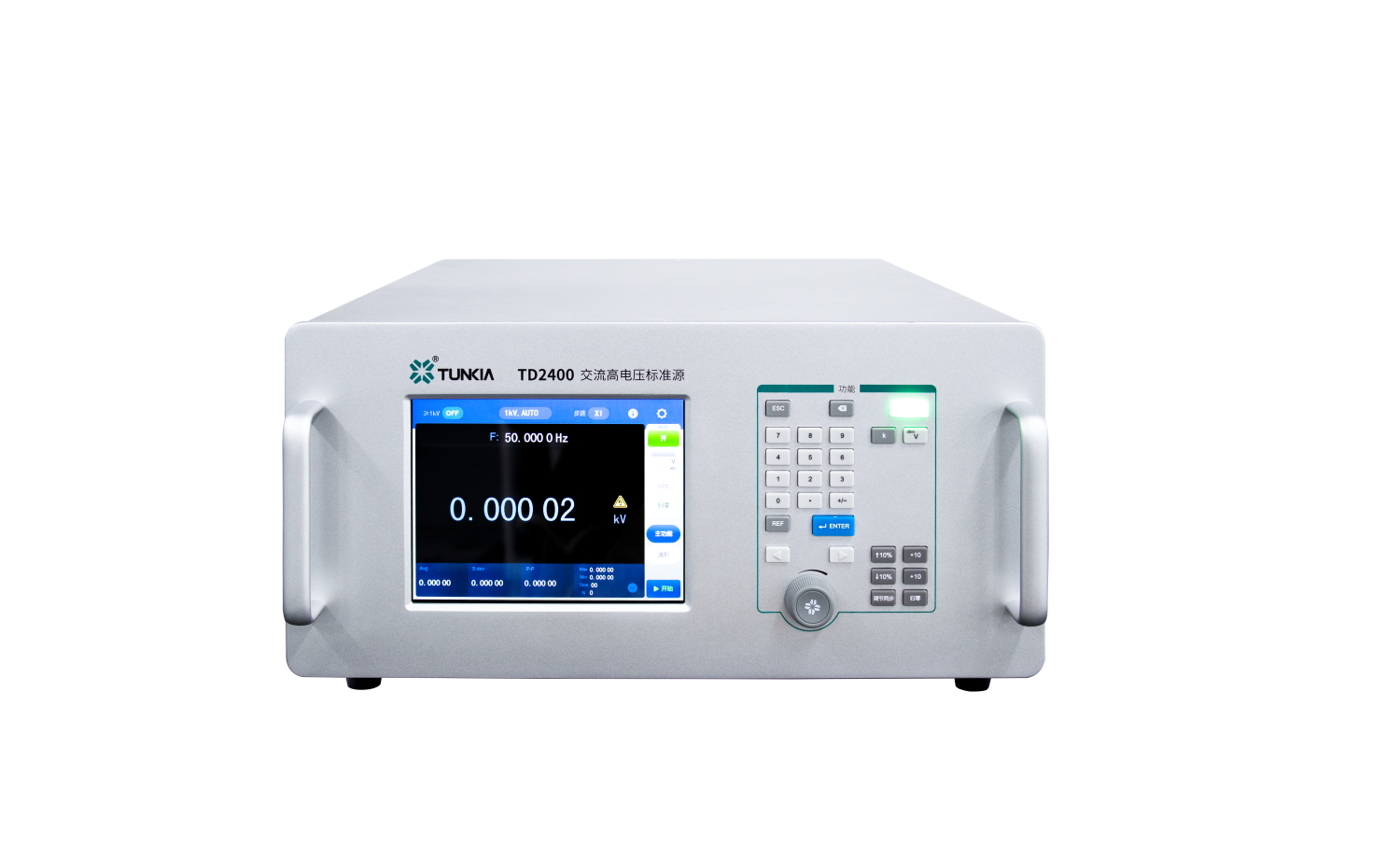

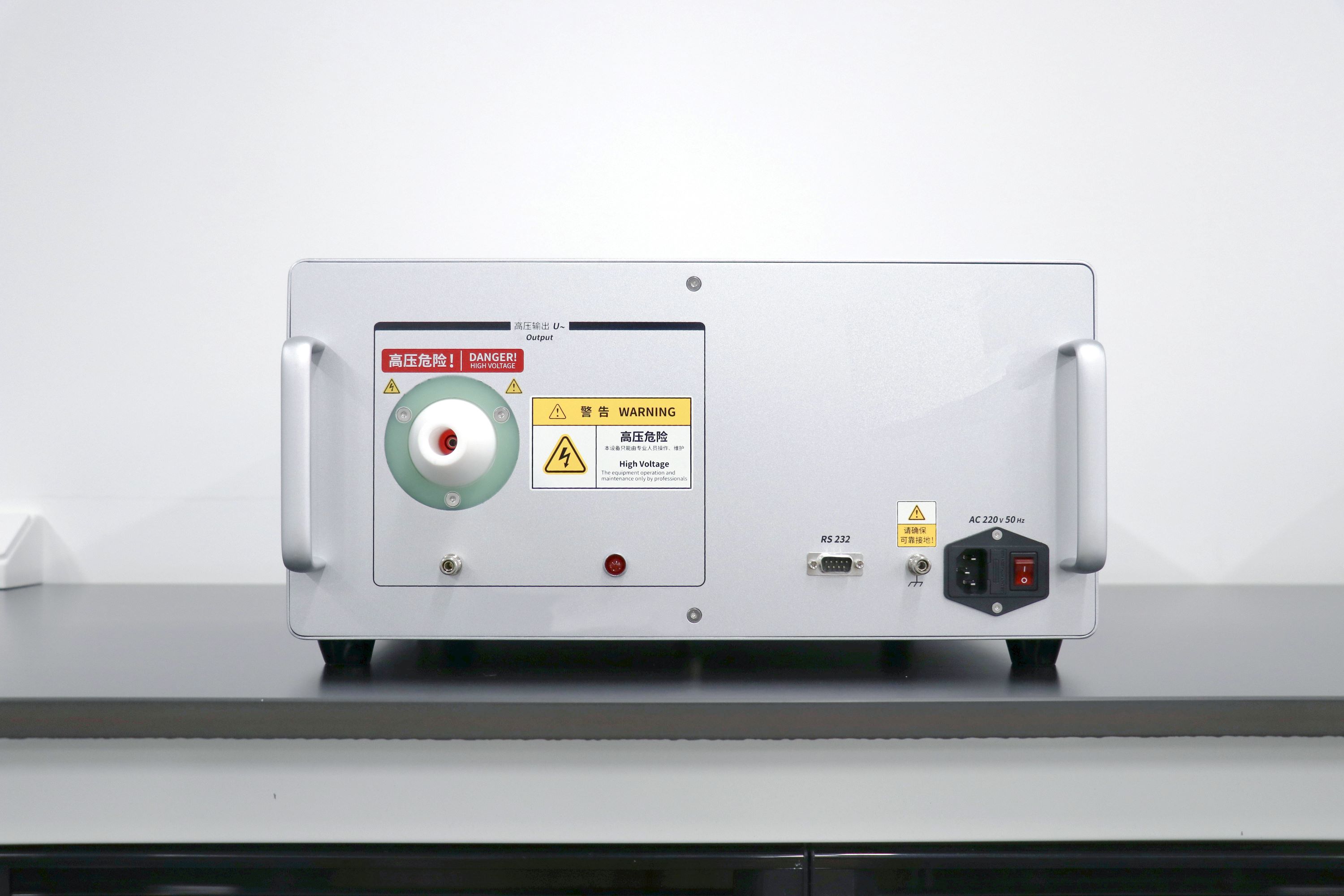

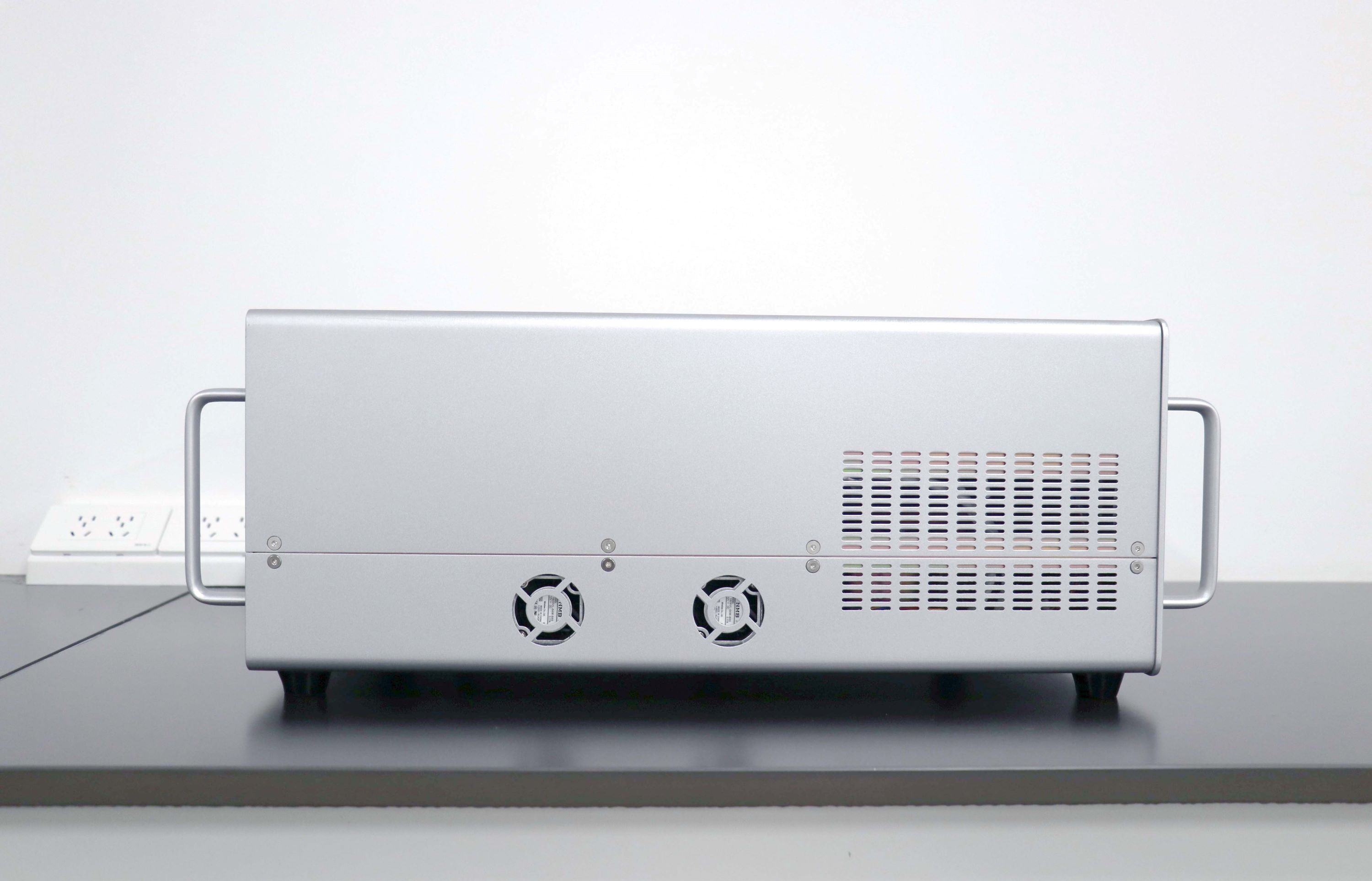

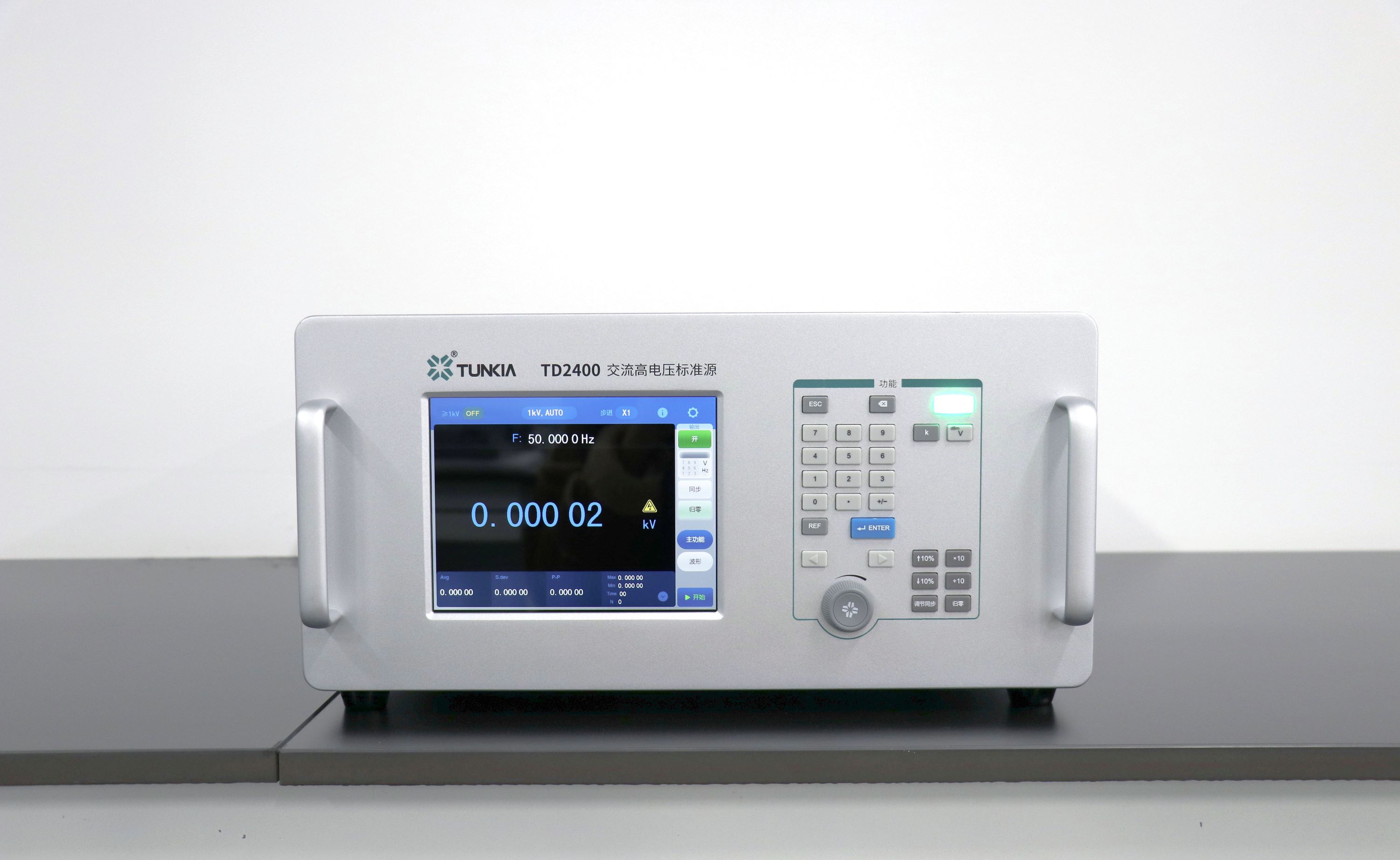

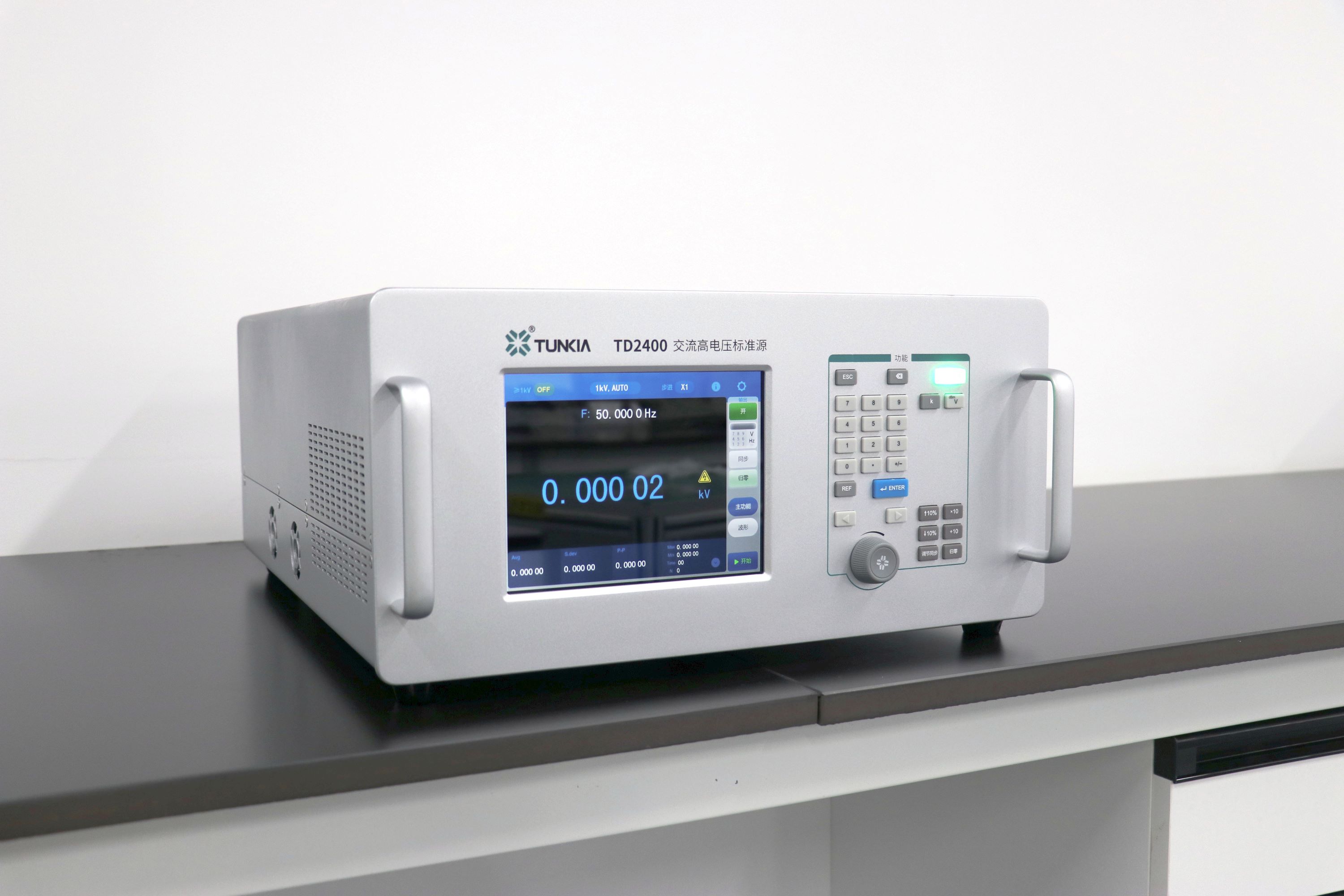

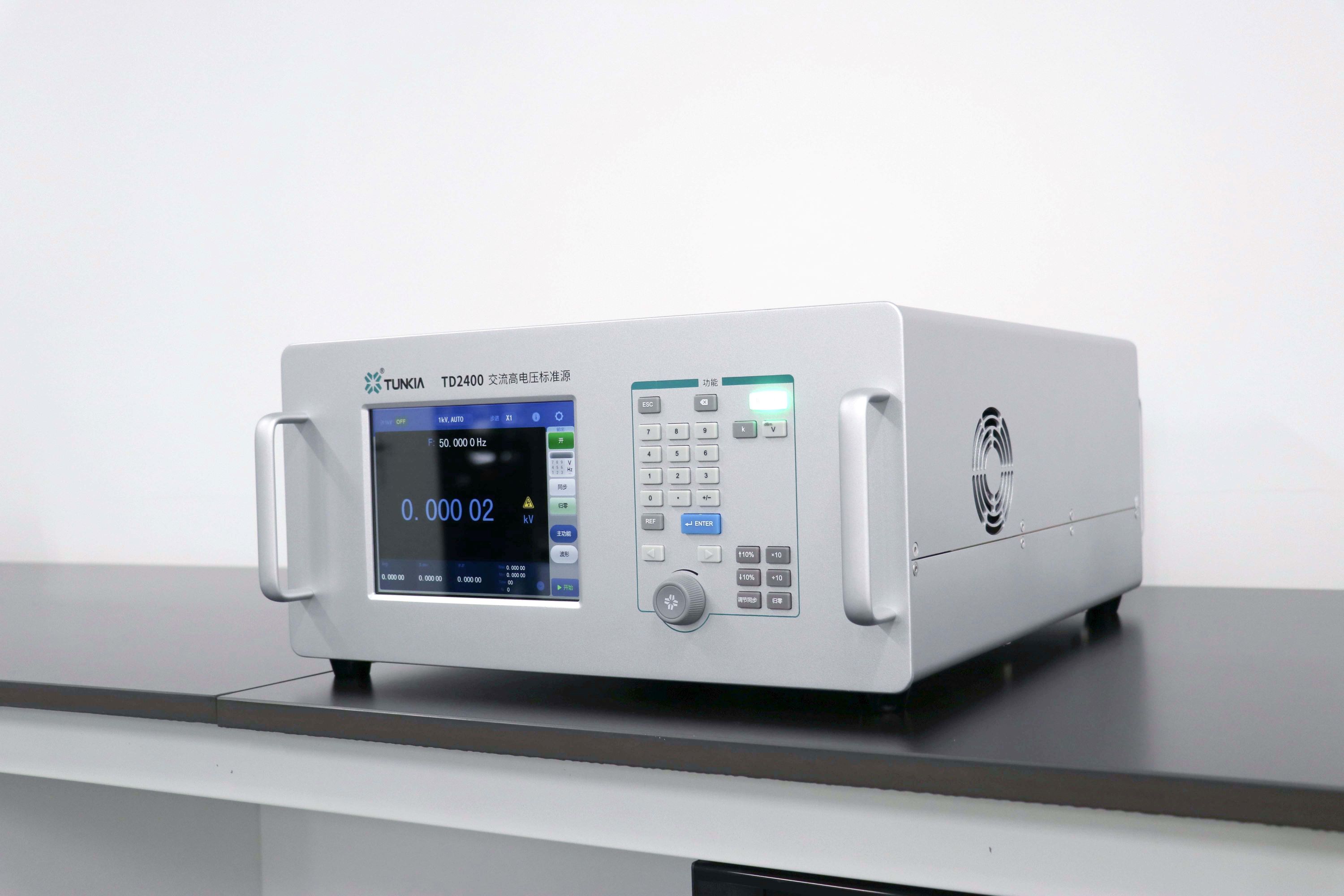

TUNKIA TD2400 AC High Voltage Standard Source

Share to:

TD2400 AC High Voltage Standard Source

Name: TD2400 AC High Voltage Standard Source
Brand: TUNKIA
SKU: 596143967
Rating: 5.0 (1 reviews)

TD2400 is a high precision and multi-function AC standard high voltage source with wide rang. It’s applied for calibrating AC high voltage meter, withstanding voltage testers, high voltage probe etc.

Features:	AC voltage output: 100 V～5 kV / 10 kV / 15kV. Accuracy class: 0.02, 0.05. Frequency: 45 Hz～65 Hz. 2nd~11th harmonic output.
Availability:

Quantity:



Inquire Add to Basket

Model:
TD2400
Brand:
TUNKIA

TD2400 AC High Voltage Standard Source

TUNKIA TD2400 AC High Voltage Standard Source

1. Summary

TD2400 is a high precision and multi-function AC standard high voltage source with wide rang. It’s applied for calibrating AC high voltage meter, withstanding voltage testers, high voltage probe etc.

2. Features

• AC voltage output: 100 V～5 kV / 10 kV / 15kV.

• Accuracy class: 0.02, 0.05.

• Frequency: 45 Hz～65 Hz.

• 2nd~11th harmonic output.

• Short-circuit and overload protection.

• LCD touch screen.

• Setting the ACV values by keys.

• RS232 interface.

3. Application

• Meter manufacturer

• The power grid

• Metrology and calibration

☆ Calibration for AC HV meter or Probe

TUNKIA TD2400 AC High Voltage Standard Source

• AC voltage ( ACV ) output: 100 V～5 kV / 10 kV / 15kV

• Apply to the calibration of AC high voltage meter, high voltage probe etc.

TD2410 High Voltage Meters Calibration Device

TD2500 DC High Voltage Precision Power Source

TD2550 Non-touch Static Voltmeters Calibration Device

TD2600 Precision DC High Voltage Meter

TD2650 Precision AC DC High Voltage Meter

☆ Harmonics function

S/N	Function description
	It can output 2nd~11th harmonic, and set harmonic amplitude.
	Users can select the harmonics and set up harmonic parameter.
	Oscilloscope function，display waveform of the output voltage.

☆ Harmonics function

S/N	Function description
	It can output 2nd~11th harmonic, and set harmonic amplitude.
	Users can select the harmonics and set up harmonic parameter.
	Oscilloscope function，display waveform of the output voltage.

Range	Resolution	Stability (%/min)	Uncertainty (k=2) (ppm of reading + ppm of range) [1]		Distortion ( % )
Range	Resolution	Stability (%/min)	Class 0.05	Class 0.02	Distortion ( % )
2 kV	10 mV	0.01	300 + 200	120 + 80	≤ 0.5
5 kV	10 mV	0.01	300 + 200	120 + 80	≤ 0.5
10 kV[2]	100 mV	0.01	300 + 200	120 + 80	≤ 0.5
15 kV[2]	100 mV	0.01	600 + 400	300 + 200	≤ 0.5
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%). Note [2] : 10 kV、15 kV is optional.

Power Supply	AC (220 ± 22) V，(50 ± 2) Hz
Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface

Range	Resolution	Stability (%/min)	Uncertainty (k=2) (ppm of reading + ppm of range) [1]		Distortion ( % )
Range	Resolution	Stability (%/min)	Class 0.05	Class 0.02	Distortion ( % )
2 kV	10 mV	0.01	300 + 200	120 + 80	≤ 0.5
5 kV	10 mV	0.01	300 + 200	120 + 80	≤ 0.5
10 kV[2]	100 mV	0.01	300 + 200	120 + 80	≤ 0.5
15 kV[2]	100 mV	0.01	600 + 400	300 + 200	≤ 0.5
Note [1] : (ppm = parts per million) (e.g.，10ppm = 0.001%). Note [2] : 10 kV、15 kV is optional.
