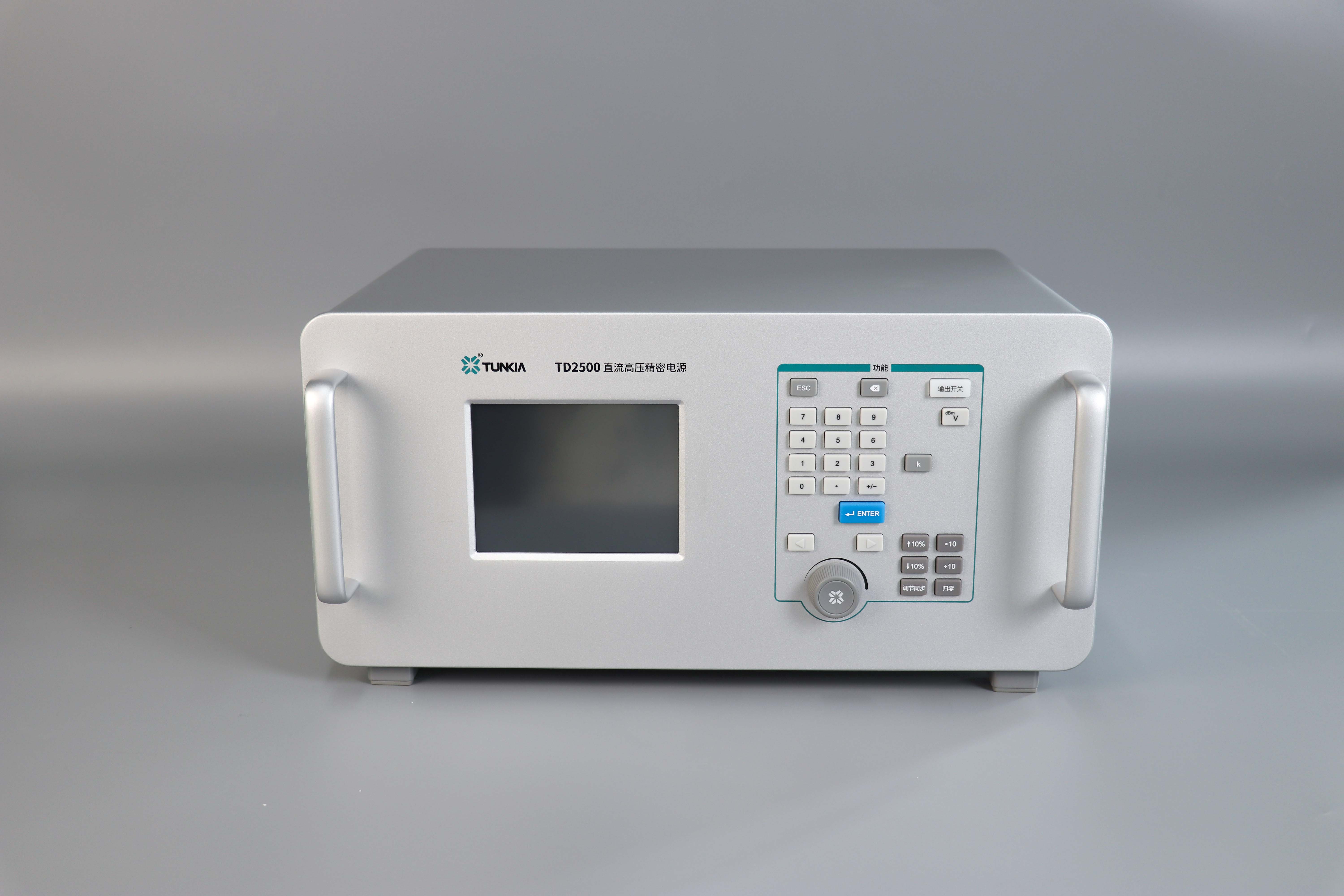

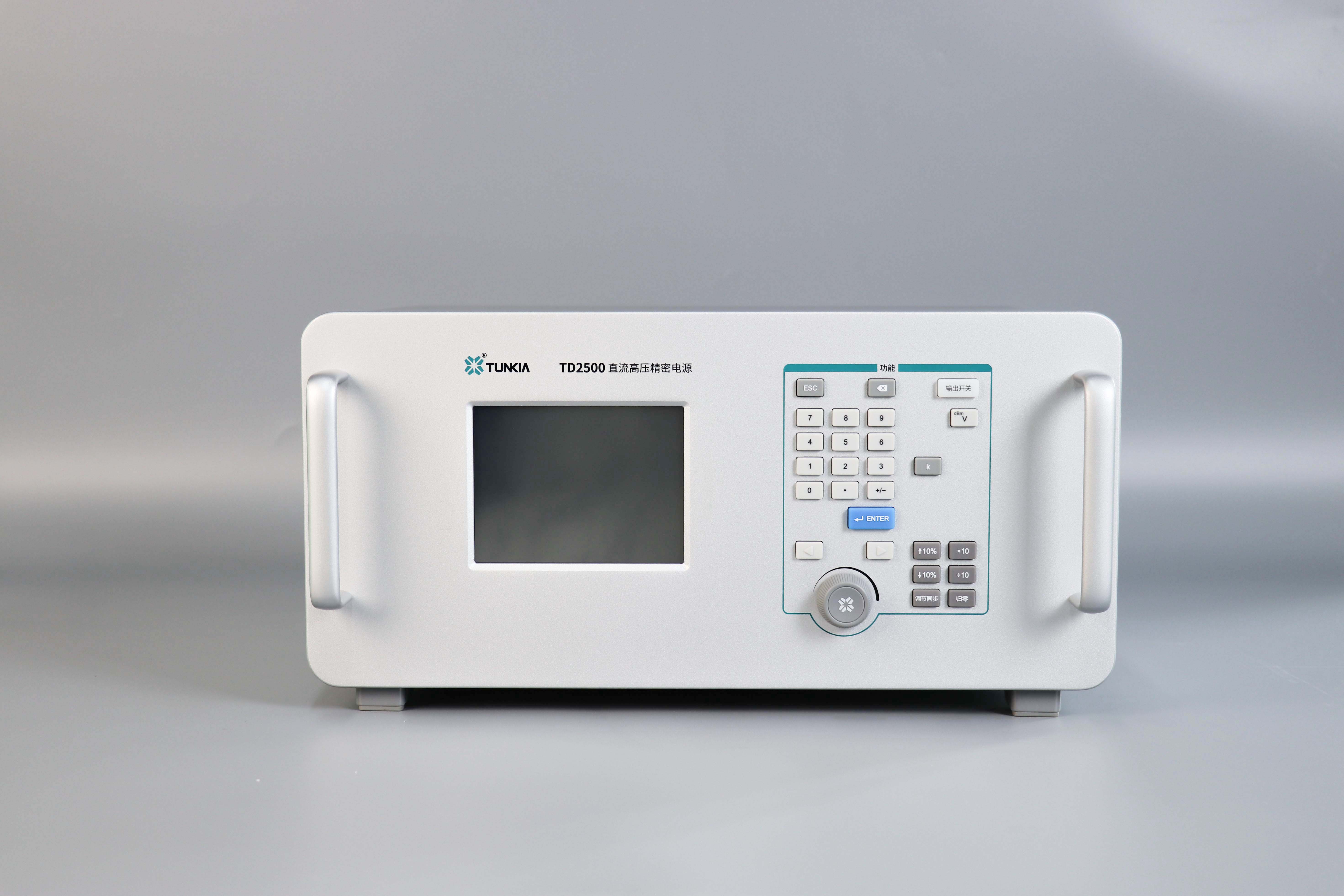

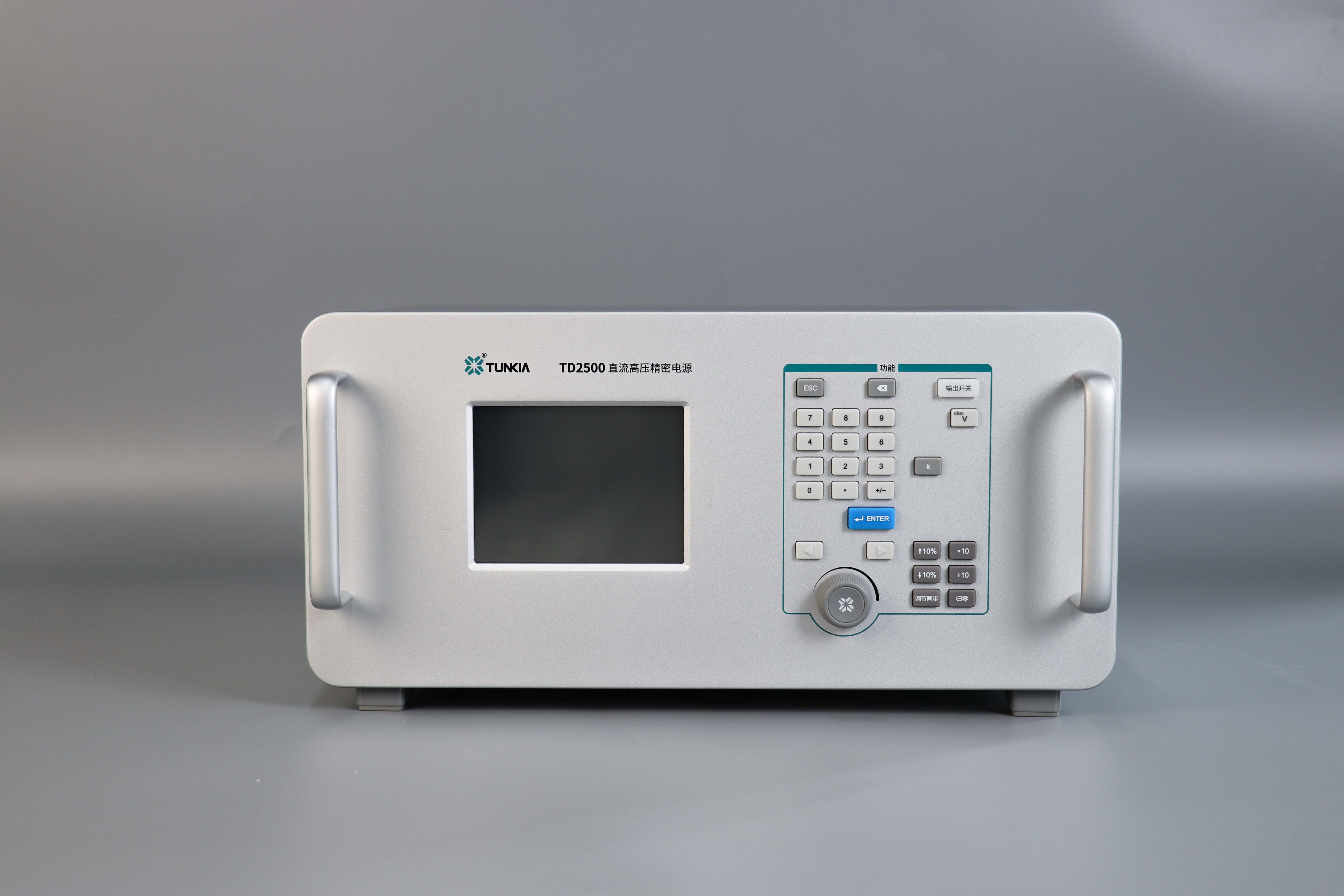

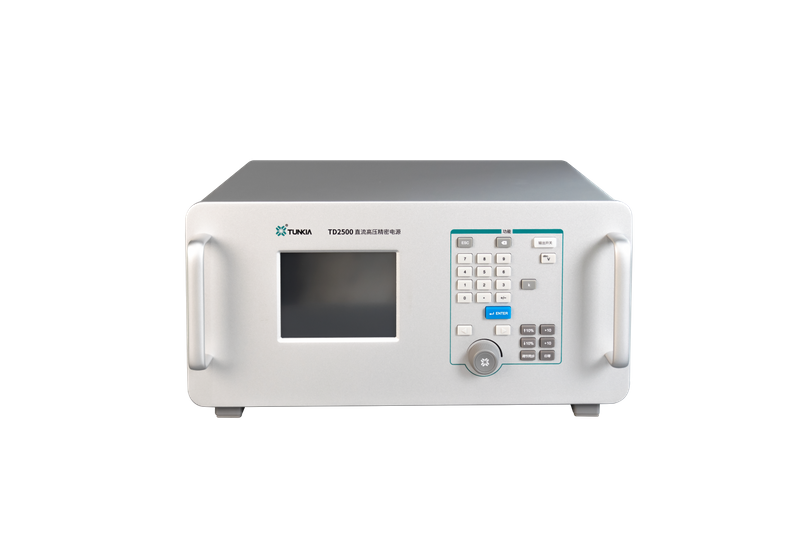

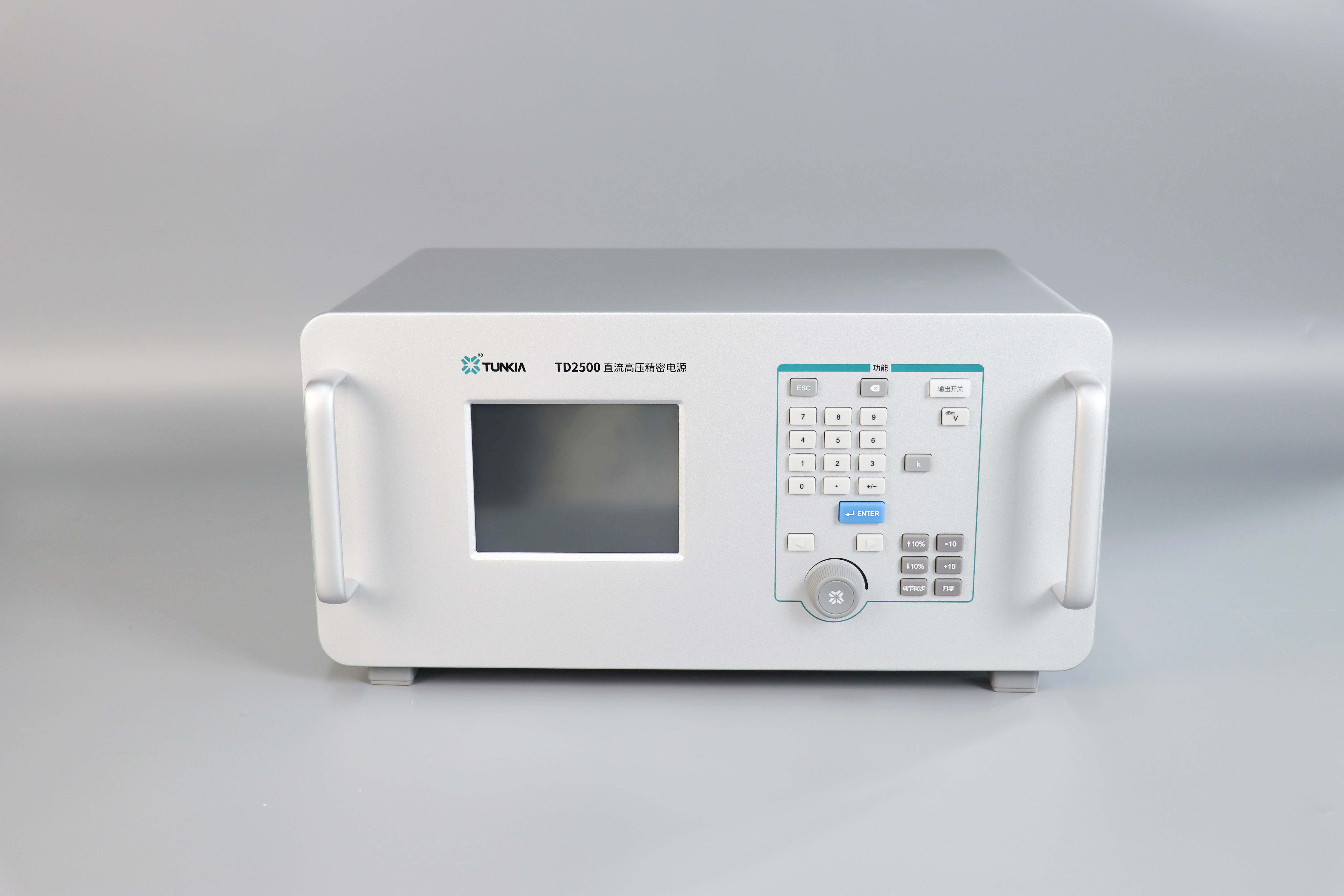

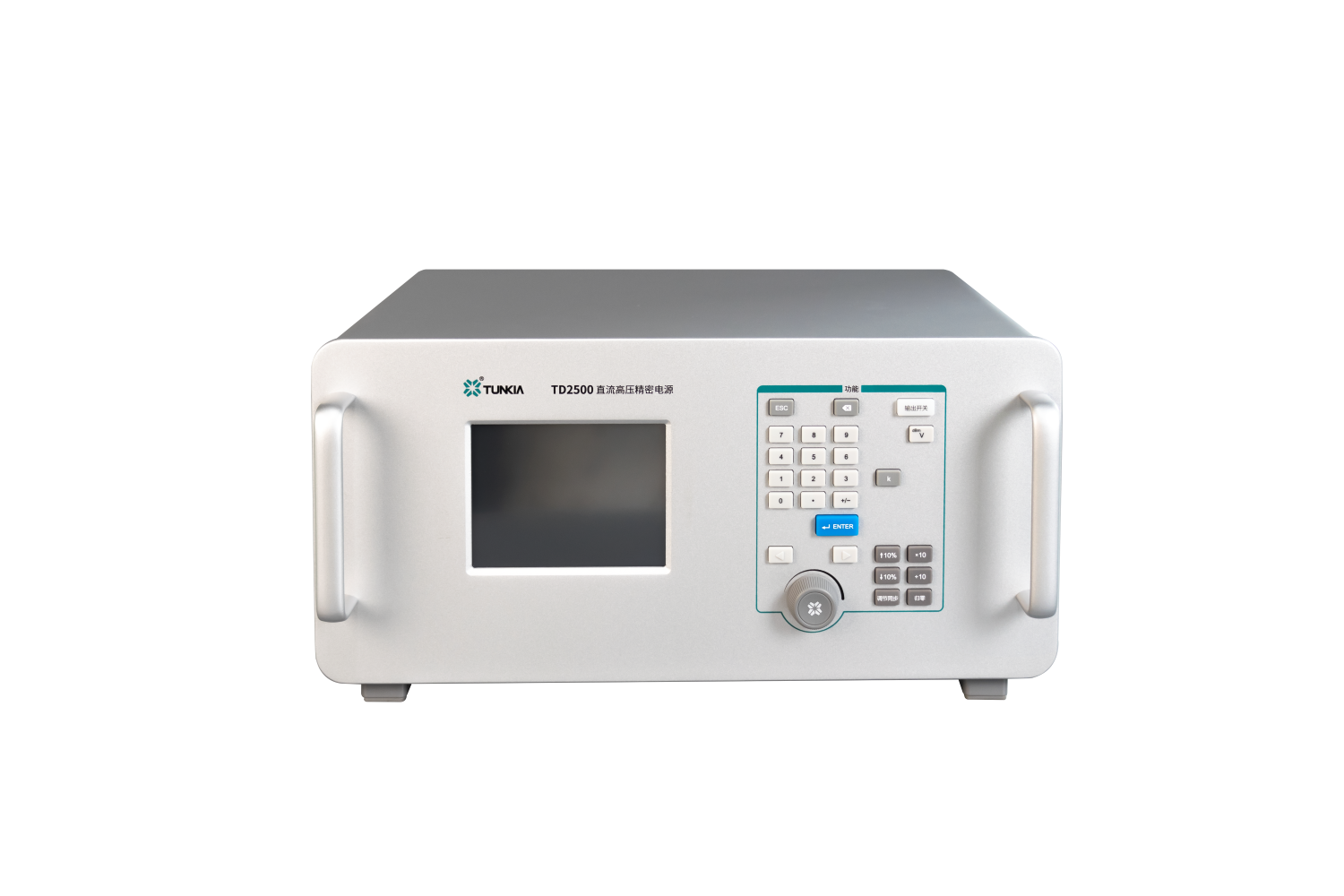

TUNKIA TD2500 DC High Voltage Precision Power Source

Share to:

TD2500 DC High Voltage Precision Power Source

Name: TD2500 DC High Voltage Precision Power Source
Brand: TUNKIA
SKU: 565944167
Rating: 5.0 (7 reviews)

TD2500 is a high precision and multi-function DC standard high voltage source with wide rang. It’s applied for calibrating DC high voltage meter, withstanding voltage testers, high voltage probe etc.

Features:	DCV output: 100 V～5 kV / 10 kV / 20 kV / 50 kV. Accuracy class 0.02 / 0.05.
Availability:

Quantity:



Inquire Add to Basket

Model:
TD2500
Brand:
TUNKIA

TD2500 DC High Voltage Precision Power Source

TUNKIA TD2500 DC High Voltage Precision Power Source

1. Summary

2. Features

• DCV output：100 V～5 kV / 10 kV / 20 kV / 50 kV.

• Accuracy class 0.02 / 0.05.

• LCD touch screen

• Short-circuit and overload protection.

• Setting DCV values by keys or rotary knob.

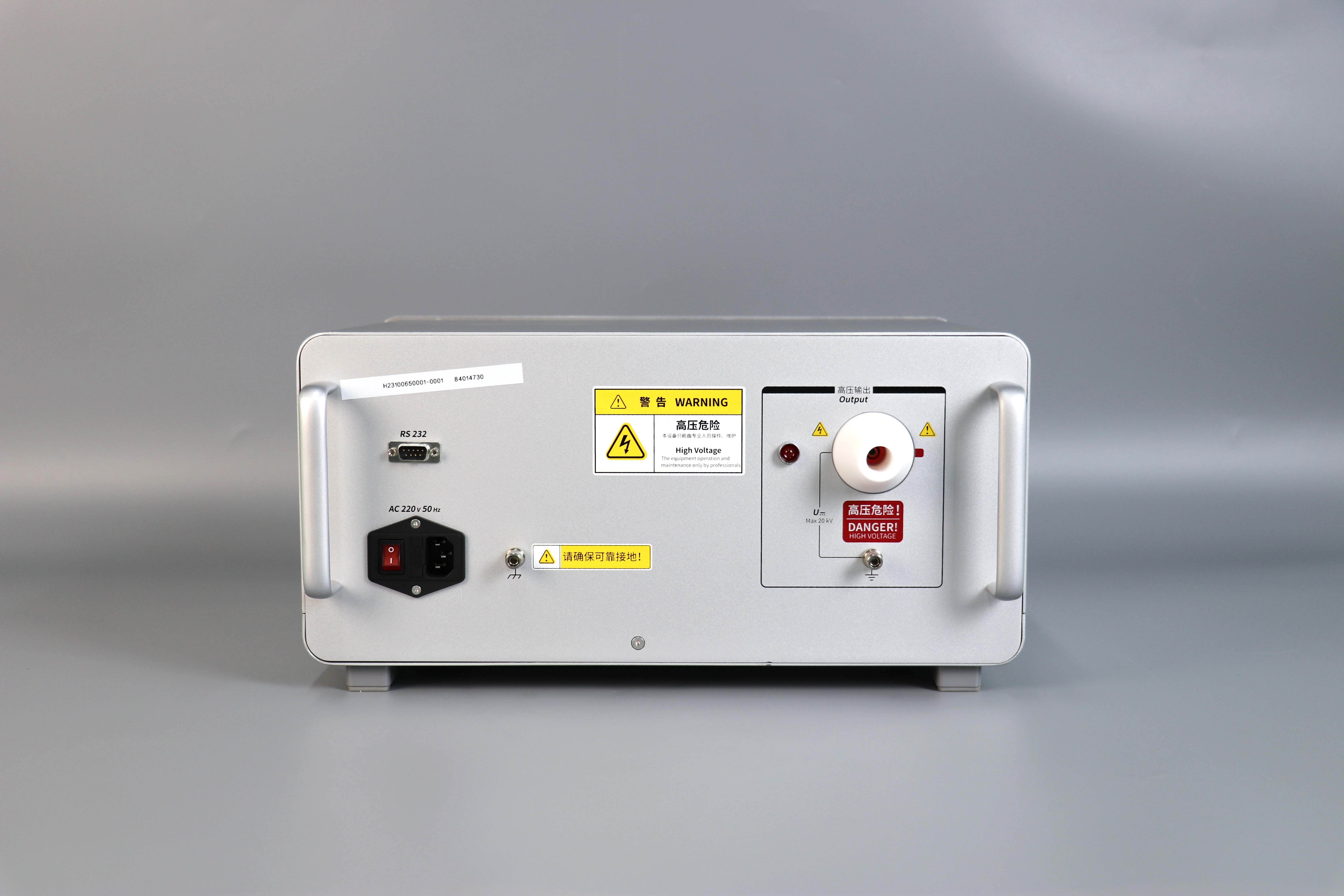

• RS232 interface.

3. Application

☆ Calibration for DC High Voltage Meter

TUNKIA TD2500 DC High Voltage Precision Power Source

• DCV output: 100 V ~ 5 kV / 10 kV / 20 kV / 50 kV.

• Apply to the calibration of DC high voltmeter, high voltage probe etc.

TD2400 AC High Voltage Standard Source

TD2410 High Voltage Meters Calibration Device

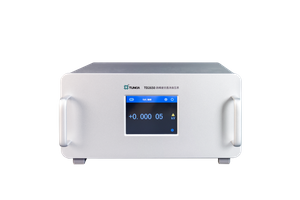

TD2650 Precision AC DC High Voltage Meter

TD2600 Precision DC High Voltage Meter

TD2550 Non-touch Static Voltmeters Calibration Device

Model	Range ( kV )	Stability (%/min)		Accuracy ±(ppm of reading + ppm of range) [1]		Max Burden (mA)
Model	Range ( kV )	0.05	0.02	0.05	0.02	Max Burden (mA)
TD2500-x-5kV	1、2.5、5	0.02	0.01	300 + 200	120 + 80	6
TD2500-x-10kV	1、2、5、10	0.02	0.01	300 + 200	120 + 80	3
TD2500-x-20kV	2、5、10、20	0.02	0.01	300 + 200	120 + 80	1.5
TD2500-x-50kV	5、10、20、50	0.02	/	300 + 200	/	2.4
Note [1] : (ppm = parts per million) (e.g., 10ppm = 0.001%).

Power supply	AC (220 ± 22) V，(50 ± 2) Hz
Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface

Model	Range ( kV )	Stability (%/min)		Accuracy ±(ppm of reading + ppm of range) [1]		Max Burden (mA)
Model	Range ( kV )	0.05	0.02	0.05	0.02	Max Burden (mA)
TD2500-x-5kV	1、2.5、5	0.02	0.01	300 + 200	120 + 80	6
TD2500-x-10kV	1、2、5、10	0.02	0.01	300 + 200	120 + 80	3
TD2500-x-20kV	2、5、10、20	0.02	0.01	300 + 200	120 + 80	1.5
TD2500-x-50kV	5、10、20、50	0.02	/	300 + 200	/	2.4
Note [1] : (ppm = parts per million) (e.g., 10ppm = 0.001%).

Power supply	AC (220 ± 22) V，(50 ± 2) Hz
Temperature	Working temperature：0℃~45℃； Storage temperature：-20℃~70℃
Humidity	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232 interface
