TS3210 Automatic Measurement System for Magnetic Properties of Electrical Steel Sheets

TS3210 Automatic Measurement System for Magnetic Properties of Electrical Steel Sheets

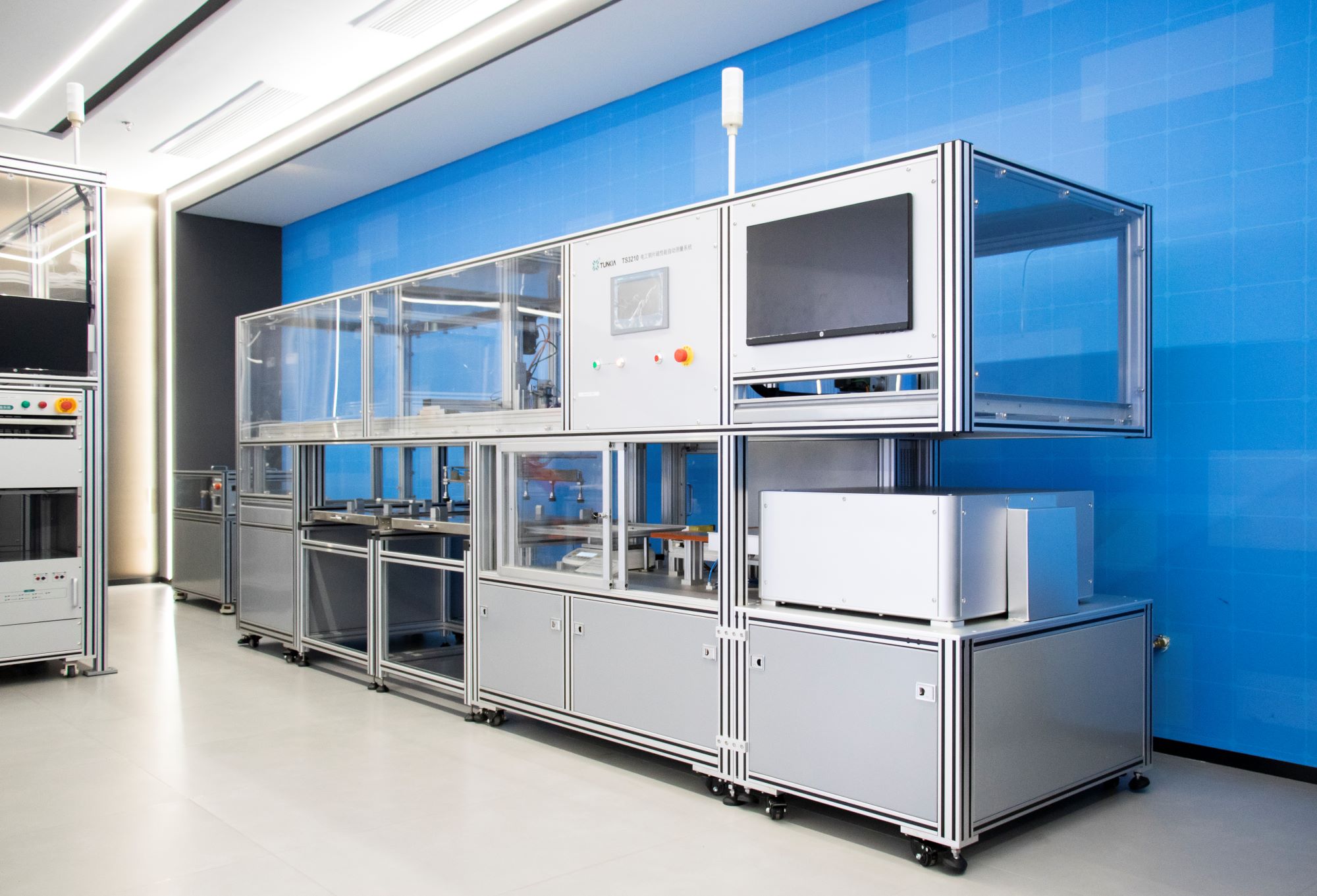

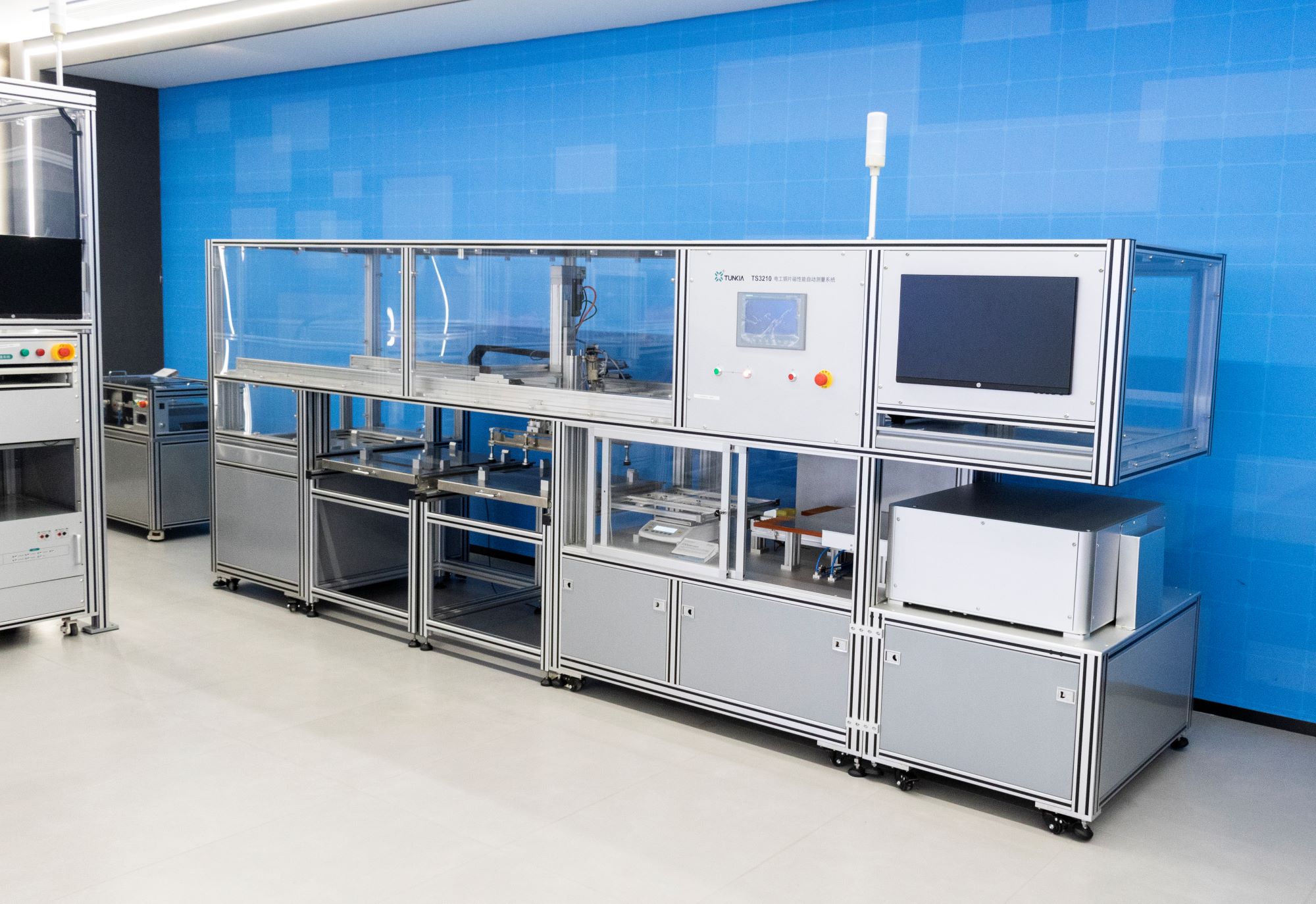

*Reference only, actual product can vary slightly.

1. Summary

TS3210 is a fully automatic measurement system for large single piece of electrical steel with magnetic properties (SST) with high automation, high reliability, high efficiency, traceability and easy maintenance. It has the functions of loading, weighing, inserting chips, measuring the magnetic properties of large single chips, and unloading materials. TS3210 is a one-stop solution to the traceability problem of electrical steel from detection to device, and improve the detection capability and efficiency of electrical steel.

2. Features

• Fully automatic loading-measuring-data uploading-unloading.

• Can operate 24 hours a day continuously.

• Normally manual loading is used, but AGV and other loading methods can be customized.

• Typical measurement speed: 16 pieces/hour.

• Ensure personal safety, functional safety, and information security.

• Reliability, fault tolerance, upgradeability, and easy maintenance.

• Data fusion and sharing, data comparability and consistency.

• The equipment has a calibration interface and calibration operation space.

• Optional code reader (optional accessory) enables automatic code scanning.

3. Application

• Large-scale steel enterprises establishing intelligent factories for electrical steel production and inspection.

• Fully automated inspection of incoming electrical steel materials for electrical steel application companies, with inspection data automatically imported into product design.

4. Function (top view)

5. Safety Design

• Transparent shielding enclosure: Operators do not enter the testing area except for maintenance, and at the same time, they can observe the internal testing situation outside, which is very safe.

• Camera: A high-definition camera is installed on the top of all four shielding enclosures to realize remote monitoring.

• Warning light: Green light when working normally, red light when in abnormal condition.

• Smart lock: When the personnel open the door, it automatically stops the detection to avoid accidents.
