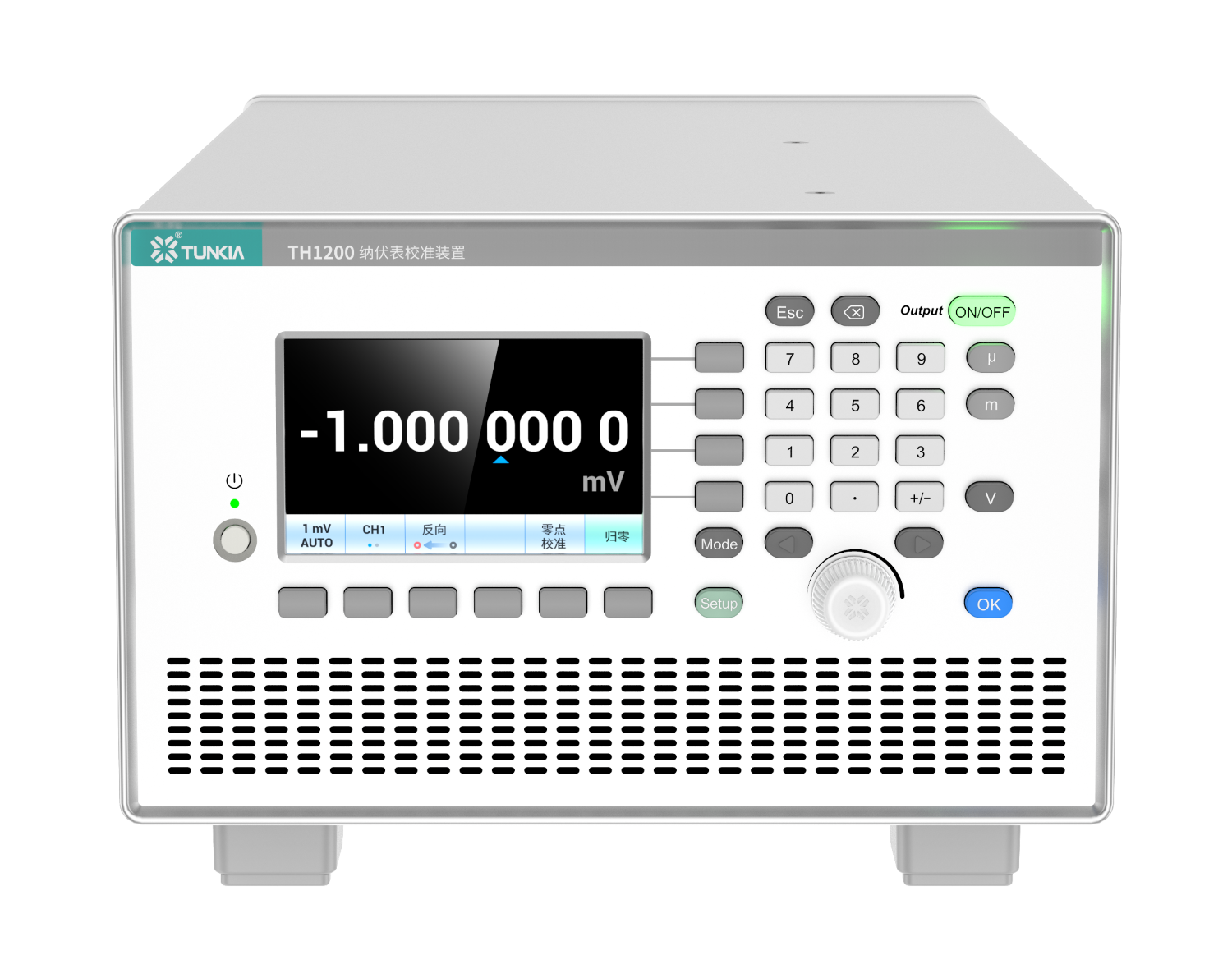

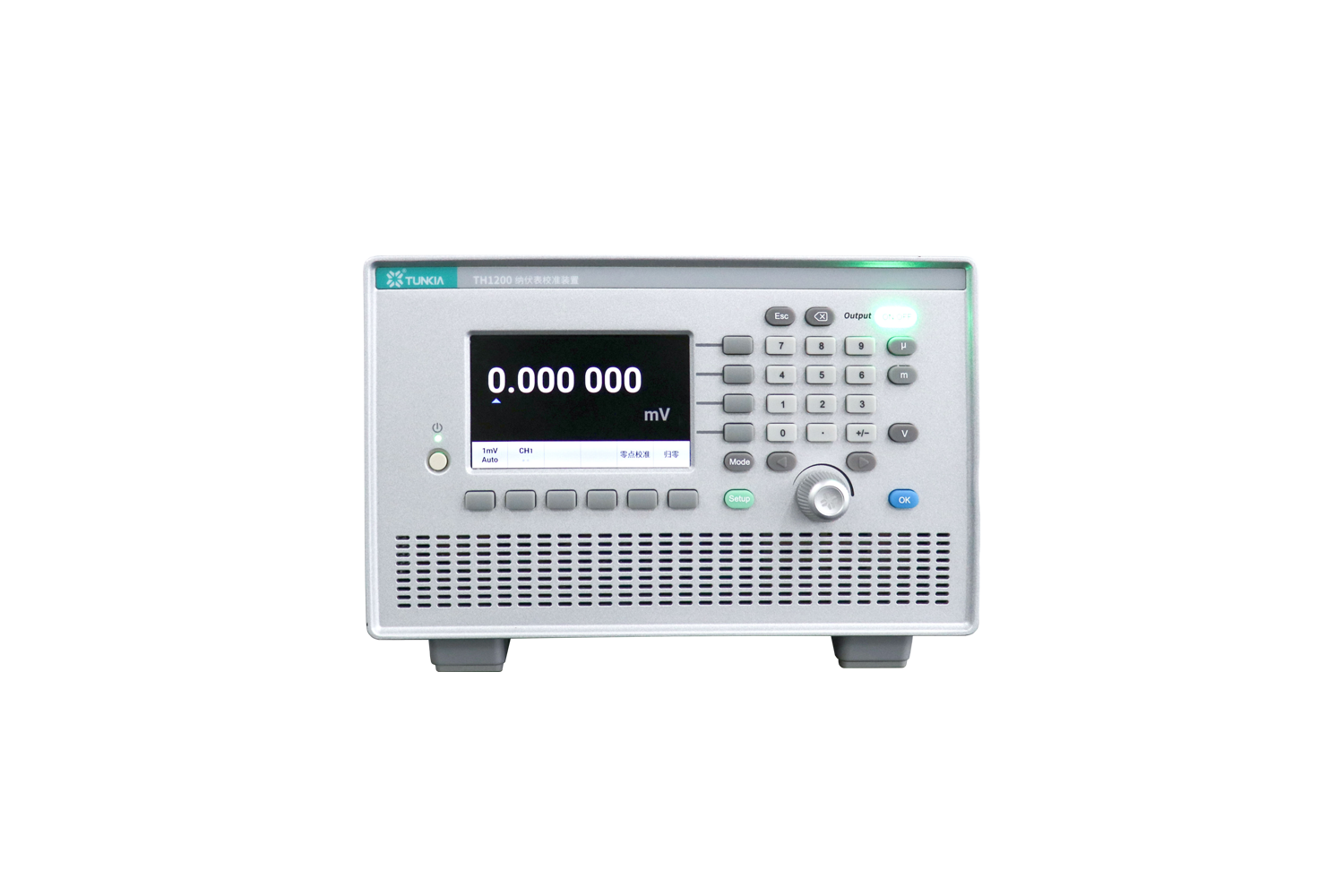

TUNKIA TH1200 Nanovoltmeters Calibration Device

Share to:

TH1200 Nanovoltmeters Calibration Device

TH1200 is an instrument that uses the standard source method to calibrate the nanovoltmeter, and is also suitable for calibrating the voltage-measurement function of DC shunt verification device, small signal voltage-measurement function of DC energy reference standard and other equipment.

Availability:

Quantity:



Inquire Add to Basket

Model:
TH1200
Brand:
TUNKIA

TH1200 Nanovoltmeters Calibration Device

TH1200 Calibration Apparatus for Nanovoltmeters

1. Summary

TH1200 is an instrument that uses the standard source method to calibrate the nanovoltmeter, and is also suitable for calibrating the voltage-measurement function of DC shunt verification device, small signal voltage-measurement function of DC energy reference standard and other equipment.

2. Features

• Standard voltage output：1 μV～110 V

• Uncertainty of measurement 6 ppm@10 V.

• Typical stability at mV output：10 nV/min.

• 8-digital，minimun resolution：1 nV.

• LEMO interface for 2-channel voltage output.

• Constant temperature control technology to reduce the environmental fator

• Specific test wire

• Specific automatic calibration software（optional）

3. Application

☆ Standard source method to calibrate the nanovoltmeter

TH1200 Standard source method to calibrate the nanovoltmeter

• Calibrate 2-chanel voltage simultaneously：1 μV～110 V（CH1）& 1 mV～11 V（CH2）.

• Meet Calibration requirements of nanovoltmeter（such as Agilent 34420A、Keithley 2182A）

☆ Interface and Automatic Calibration Software

TH1200 Interface and Automatic Calibration Software

• support RS232、LAN、USB，and accept customer requirements for software function customization.

TH1000 Ultra Stable Precision Current Source

TD4550 Portable Tester for Three-phase Energy Meter

TD2010 DC High Current Standard Source

TD1600 Precision AC Calibrator

TD1545 DC Energy Meters Verification Device

Range	Resolution	Short Term Stability	Accuracy (k=2)			Temperature Coefficient (/°C)	Maximum Burden Current
		24H Tcal±1°C	24H Tcal±5°C	90 day Tcal±5°C	1year Tcal±5°C	0°C～18°C 28°C～50°C	Maximum Burden Current
		ppm of reading + ppm of range [1]					mA
CH1
1 mV	1 nV	10 + 10	10 + 10	13 + 10	13 + 10	2 + 0.5	50
10 mV	1 nV	10 + 2	10 + 2	13 + 2	15 + 2	1 + 0.5	50
100 mV	10 nV	3 + 2	3 + 2	6 + 2	8 + 2	1 + 0.2	50
1 V	100 nV	2 + 1	2 + 2	4 + 2	6 + 2	1 + 0.1	50
10 V	1 μV	1 + 0.5	1 + 1	3 + 2	4 + 2	1 + 0.1	50
100 V	10 μV	2 + 1	3 + 2	4 + 2	6 + 2	1 + 0.5	10
CH2
100 mV	10 nV	3 + 2	3 + 2	6 + 2	8 + 2	1 + 0.2	50
1 V	100 nV	2 + 1	2 + 2	4 + 2	6 + 2	1 + 0.1	50
10 V	1 μV	1 + 0.5	1 + 1	3 + 2	4 + 2	1 + 0.1	50
Note [1] : (ppm = parts per million) (e.g: 10ppm = 0.001%).

Power Supply	AC 220 V / 50 Hz
Working Environment	Temperature：20±5°C humidity：30%R·H～80%R·H，non-condensing。 others：No electromagnetic interference
Storage Environment	Temperature：0°C～50°C humidity：10%R·H～90%R·H，non-condensing。
Interface	RS2321, LAN1, USB*1

Range	Resolution	Short Term Stability	Accuracy (k=2)			Temperature Coefficient (/°C)	Maximum Burden Current
		24H Tcal±1°C	24H Tcal±5°C	90 day Tcal±5°C	1year Tcal±5°C	0°C～18°C 28°C～50°C	Maximum Burden Current
		ppm of reading + ppm of range [1]					mA
CH1
1 mV	1 nV	10 + 10	10 + 10	13 + 10	13 + 10	2 + 0.5	50
10 mV	1 nV	10 + 2	10 + 2	13 + 2	15 + 2	1 + 0.5	50
100 mV	10 nV	3 + 2	3 + 2	6 + 2	8 + 2	1 + 0.2	50
1 V	100 nV	2 + 1	2 + 2	4 + 2	6 + 2	1 + 0.1	50
10 V	1 μV	1 + 0.5	1 + 1	3 + 2	4 + 2	1 + 0.1	50
100 V	10 μV	2 + 1	3 + 2	4 + 2	6 + 2	1 + 0.5	10
CH2
100 mV	10 nV	3 + 2	3 + 2	6 + 2	8 + 2	1 + 0.2	50
1 V	100 nV	2 + 1	2 + 2	4 + 2	6 + 2	1 + 0.1	50
10 V	1 μV	1 + 0.5	1 + 1	3 + 2	4 + 2	1 + 0.1	50
Note [1] : (ppm = parts per million) (e.g: 10ppm = 0.001%).

Power Supply	AC 220 V / 50 Hz
Working Environment	Temperature：20±5°C humidity：30%R·H～80%R·H，non-condensing。 others：No electromagnetic interference
Storage Environment	Temperature：0°C～50°C humidity：10%R·H～90%R·H，non-condensing。
Interface	RS2321, LAN1, USB*1
