TUNKIA TH0630 Precision Through-core AC Ammeter

Share to:

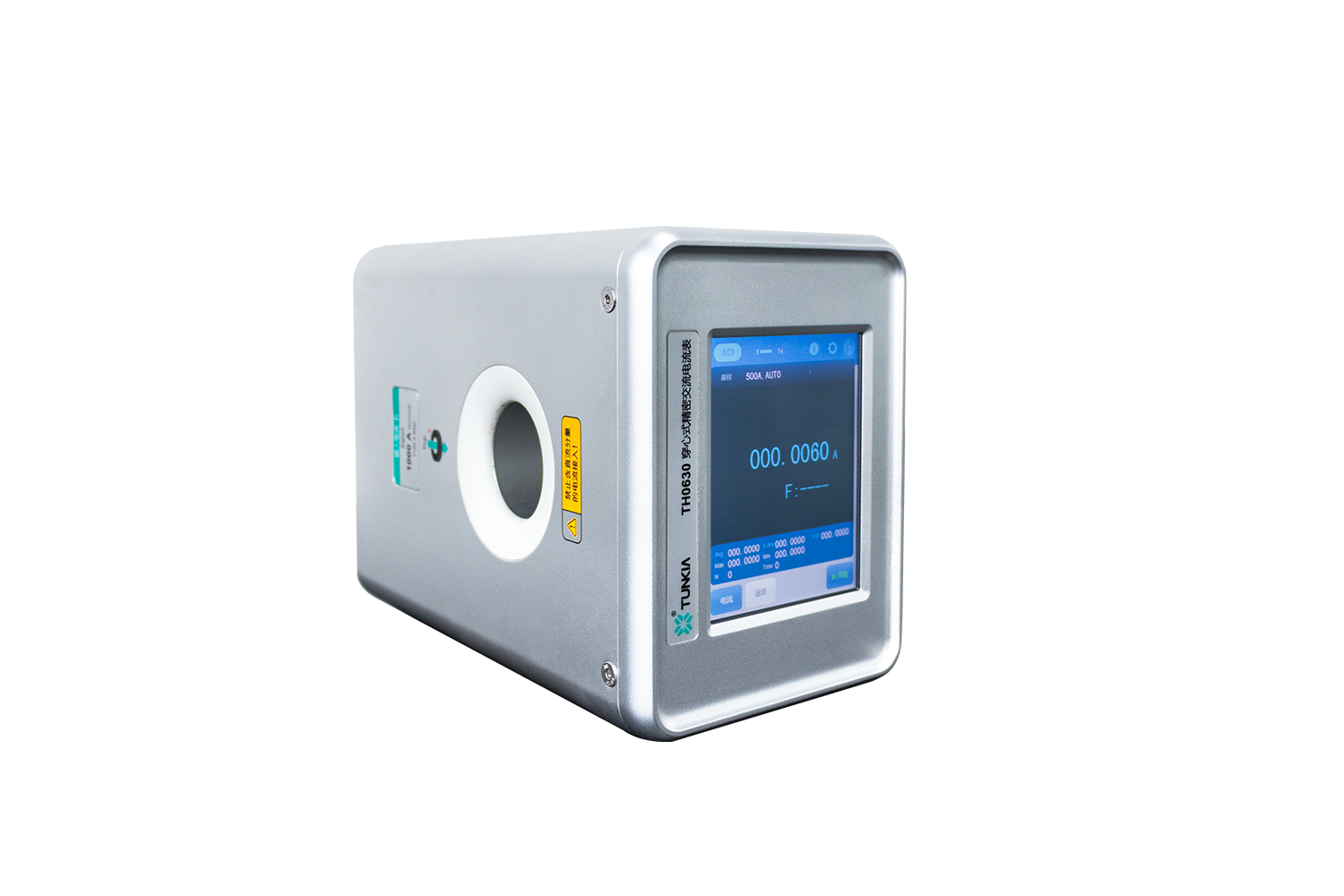

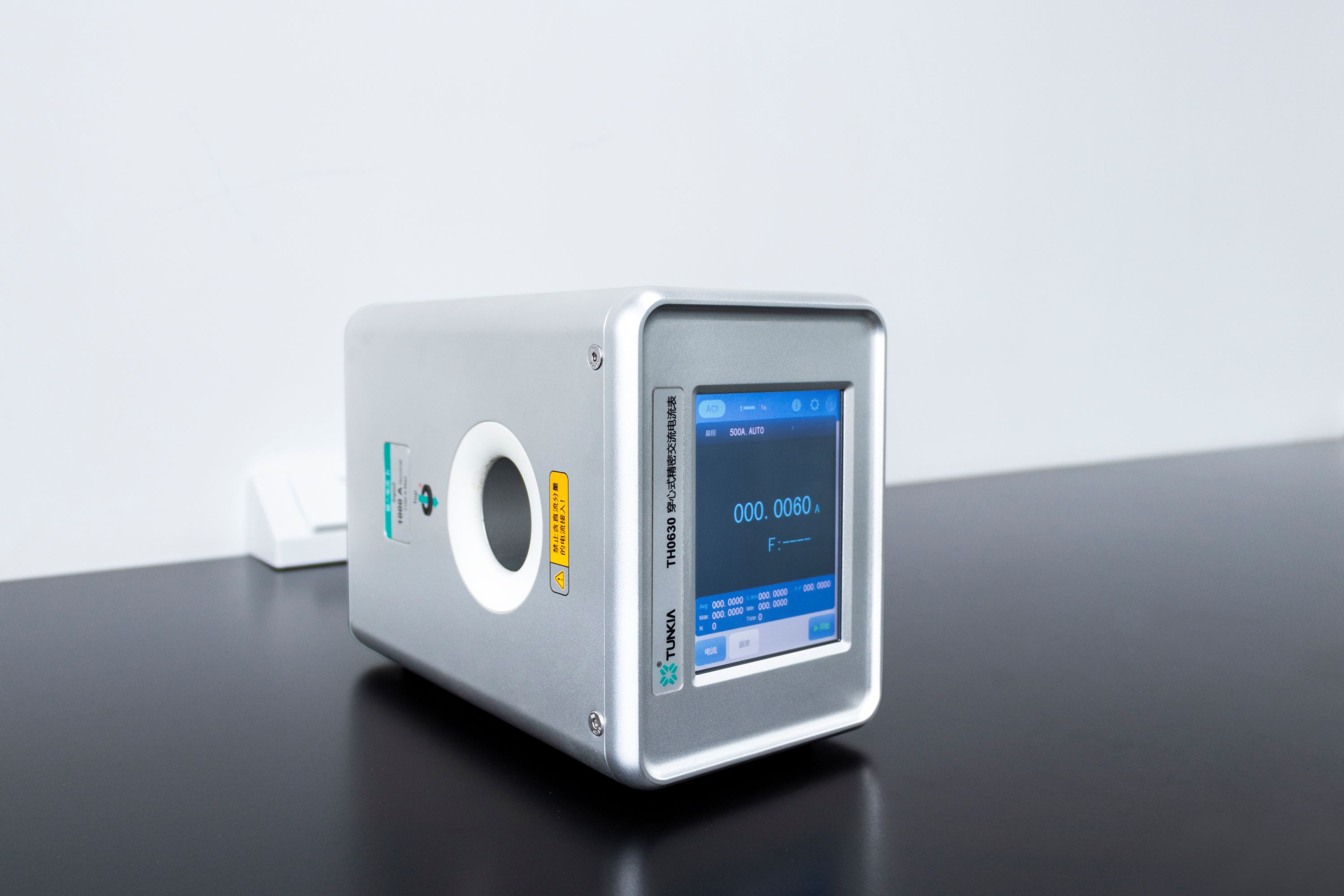

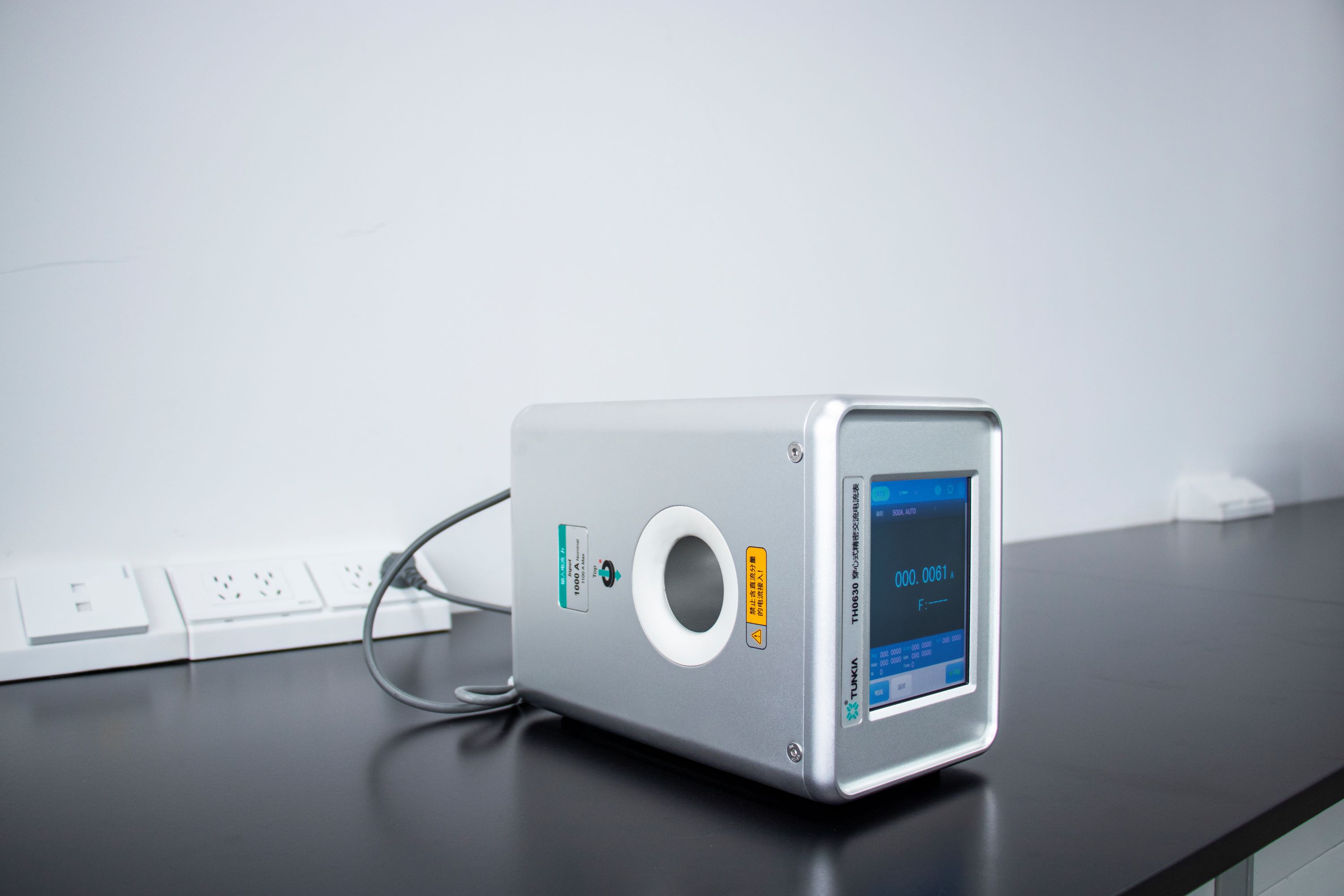

TH0630 Precision Through-core AC Ammeter

TH0630 is a wide measurement range, high measurement accuracy, small and portable AC ammeter, using wideband current transformer technology, suitable for measuring AC high current in the field, or for calibrating AC current sources and ammeters.

Availability:

Quantity:



Inquire Add to Basket

Model:
TH0630
Brand:
TUNKIA

TH0630 Precision Through-core AC Ammeter

TH0630 Through-Core Precision AC Ammeter

1. Summary

TH0630 is a wide measurement range, high measurement accuracy, small and portable AC ammeter, using wideband current transformer technology, suitable for measuring AC high current in the field, or for calibrating AC current sources and ammeters.

2. Features

• Available in 1 kA and 2 kA current specifications

• Supports manual or automatic range switching

• Measurement frequency: 40 H z ~ 400 Hz

• Accuracy: class 0.005 or class 0.01

• Through-core measurement.

• Supports measurement of AC harmonics and distortion

• Supports display of current waveforms and spectrograms

• Powered by built-in battery.

3. Applications

• Establishment of an AC current precision measurement system

• AC power test analysis

• Calibrate AC high current sources/meters

• Clamp meter calibration device traceability

☆ Set up a precision AC high current test system

TH0630 Through-Core Precision AC Ammeter Set up a precision AC high current test system

• It can be used with AC test power supply or constant current source to form a precision current test system.

• Provide accurate and stable AC current signals for test devices and loads.

☆ Calibrate AC high current source / meter

TH0630 Through-Core Precision AC Ammeter Calibrate AC high current source or meter

• It can be used as a standard ammeter, calibrate AC high current sources or high ammeter.

4. Characteristics

☆ Piercing measurement method

TH0630 Through-Core Precision AC Ammeter Piercing measurement method

• The through-core type is suitable for measuring large currents, and is configured with a large aperture to facilitate the connection of high-current test wires.

☆ Distortion measurement

TH0630 Through-Core Precision AC Ammeter Distortion measurement

• The content of each harmonic of the AC current, the total harmonic distortion, and the display of waveforms and spectrograms can be displayed.

TH0520 Precision Current and Voltage Measurement Standard

TH0530 Precision Through-core Ammeter

TA1300 AC Current Standard Source

TA1500 AC/DC Current Standard Source

TD1090 Through-Core AC I/V Converter

TH0195 AC/DC Voltage Measuring Standard

TA1200 High Frequency Transconductance Amplifier

TA1100 Transconductance Amplifier

TA1000 Transconductance Current Standard Source

Specification	Current range	Resolution	Measurement uncertainty (k=2) (23°C±5°C)		Temperature coefficient (/°C) (0°C~50°C)
			Class 0.005	Class 0.01	Class 0.005	Class 0.01
			*(ppmRD+ppmRG) [1]*
TH0630-1kA	500 A	0.1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-1kA	1000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-2kA	1000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-2kA	2000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
Note [1]: R D is the reading value, RG is the range value, the same below.

Power supply	Lithium battery powered, AC 220 V charging
Working environment	0°C ~ 40°C,20% R·H ~ 80% R·H, no-condensing。
Storage environment	-10°C~ 50°C,10% R·H ~ 90% R·H, no-condensing。
Communication interface	RS232×1

Specification	Current range	Resolution	Measurement uncertainty (k=2) (23°C±5°C)		Temperature coefficient (/°C) (0°C~50°C)
			Class 0.005	Class 0.01	Class 0.005	Class 0.01
			*(ppmRD+ppmRG) [1]*
TH0630-1kA	500 A	0.1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-1kA	1000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-2kA	1000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
TH0630-2kA	2000 A	1 mA	30 + 20	60 + 40	3 + 2	6 + 4
Note [1]: R D is the reading value, RG is the range value, the same below.

Power supply	Lithium battery powered, AC 220 V charging
Working environment	0°C ~ 40°C,20% R·H ~ 80% R·H, no-condensing。
Storage environment	-10°C~ 50°C,10% R·H ~ 90% R·H, no-condensing。
Communication interface	RS232×1

TH0630 Precision Through-core AC Ammeter

TH0630 Precision Through-core AC Ammeter

TH0630 Precision Through-core AC Ammeter
