TUNKIA TD1220 Verification Device for DC High Voltage & High Value Resistor

Share to:

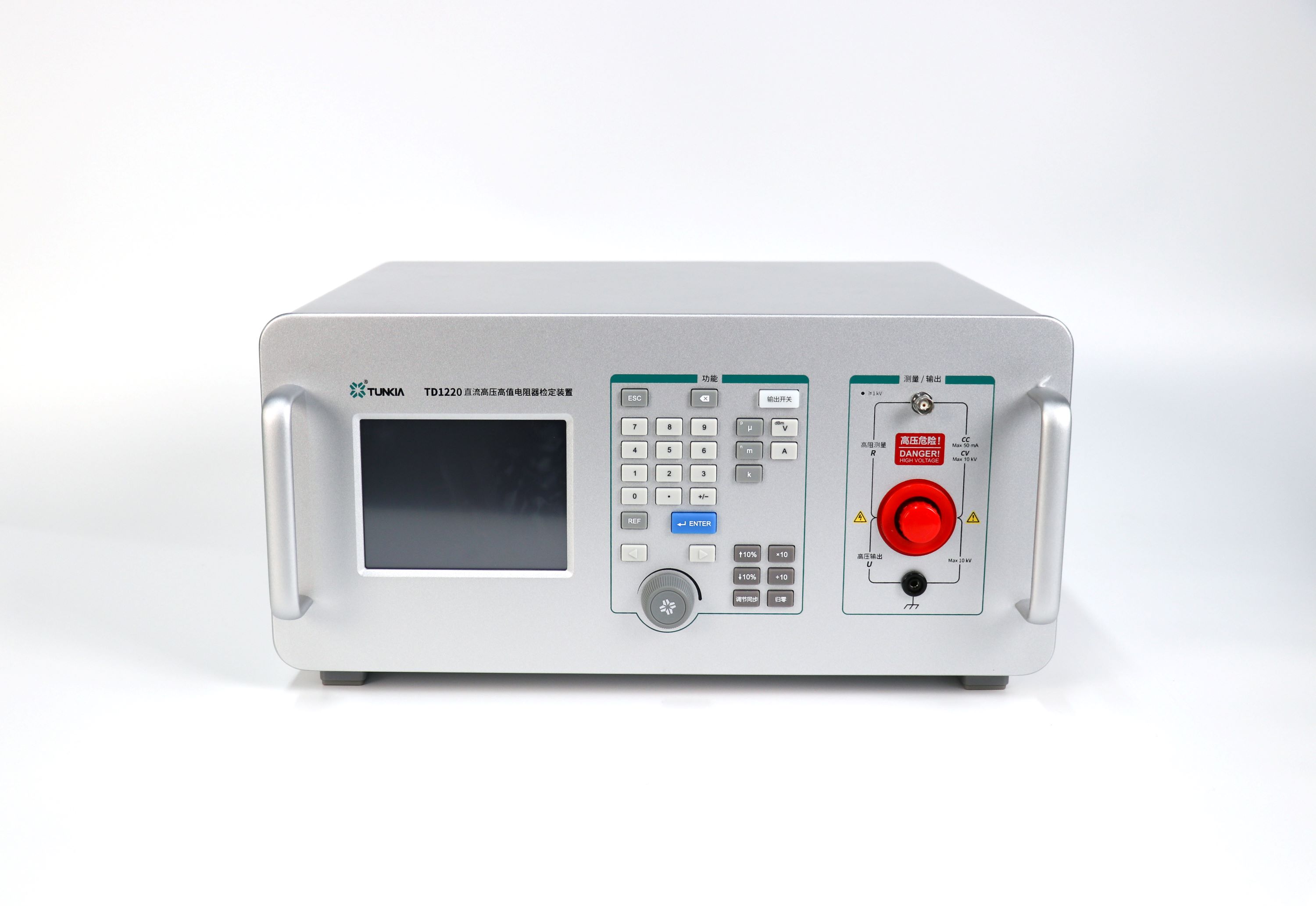

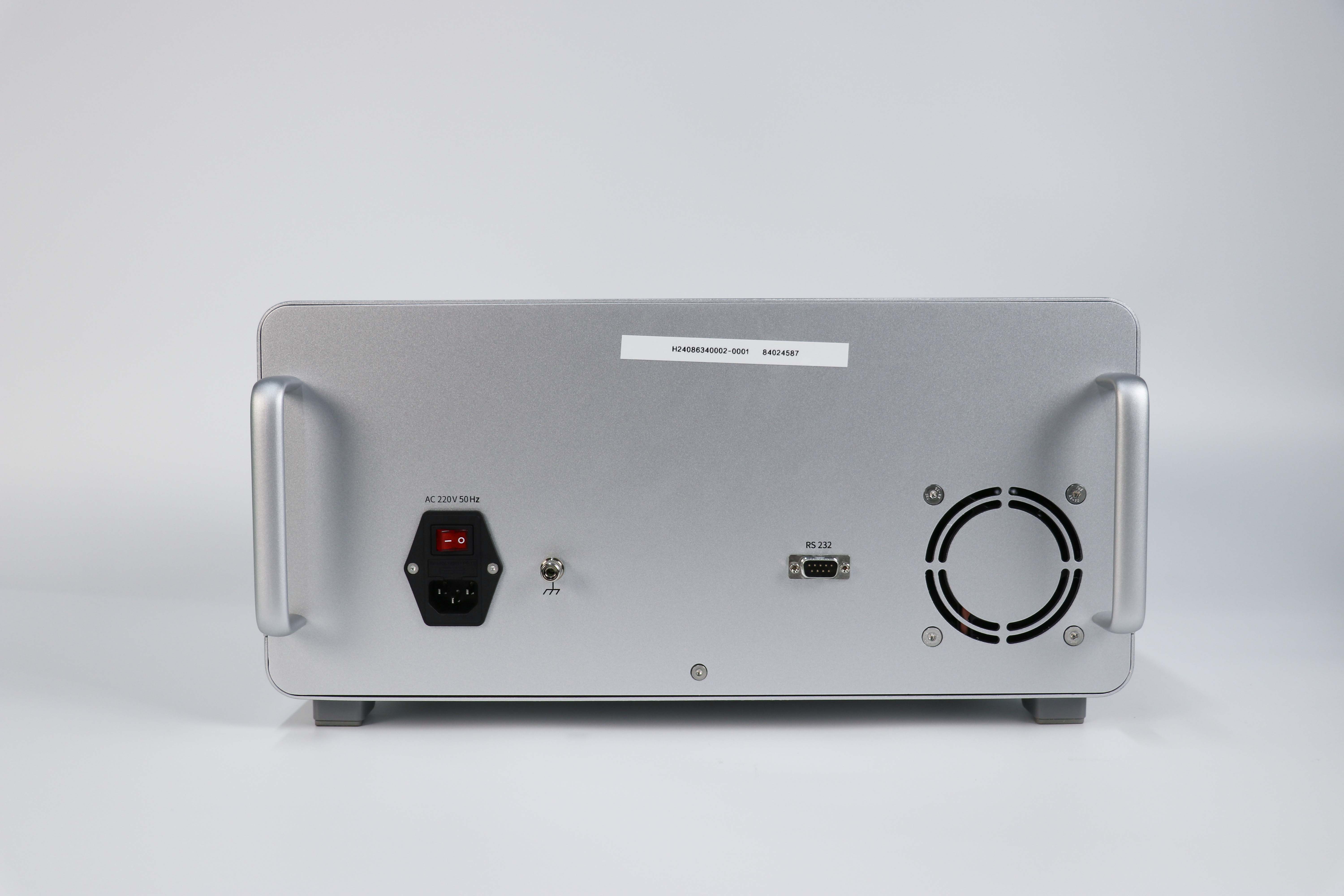

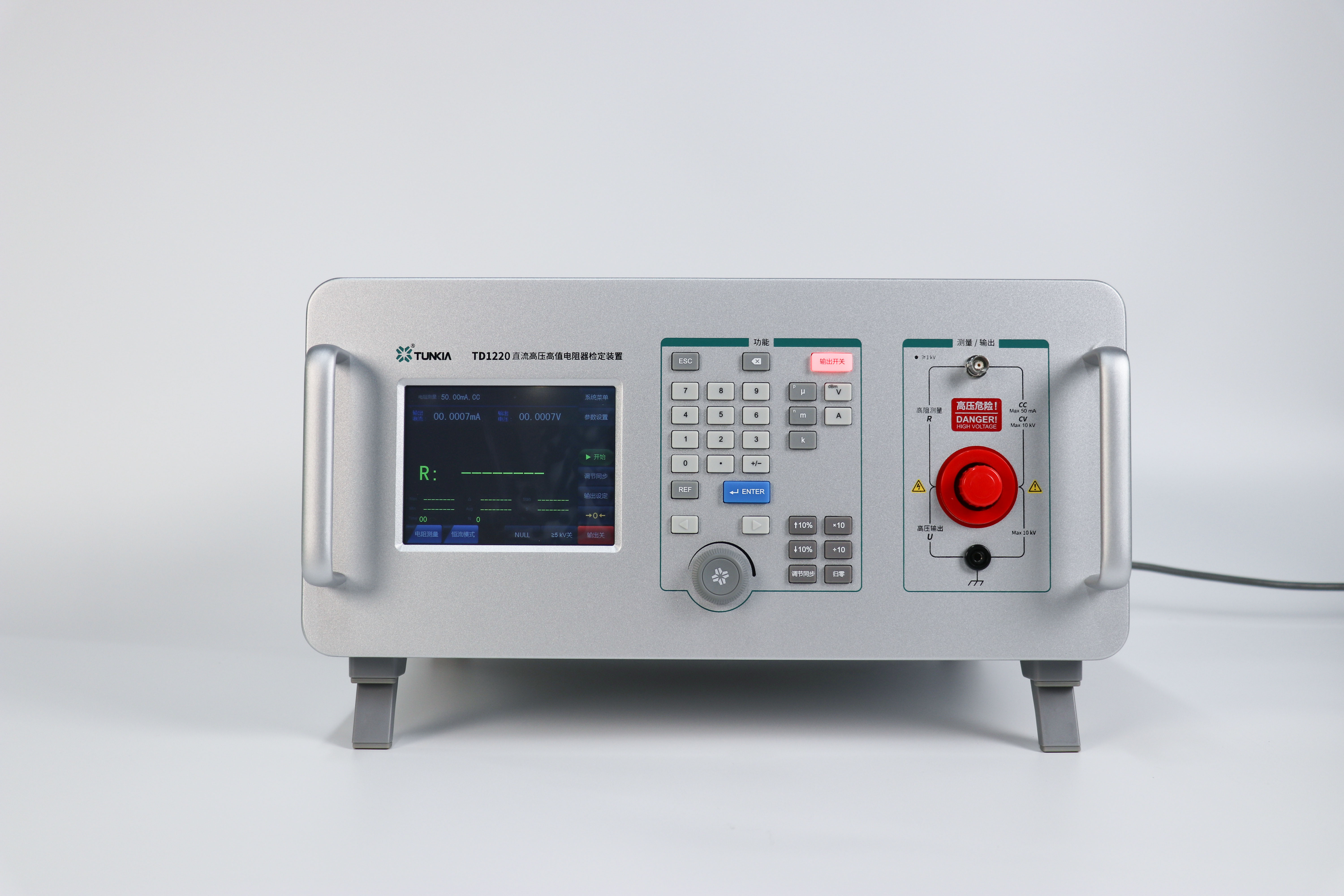

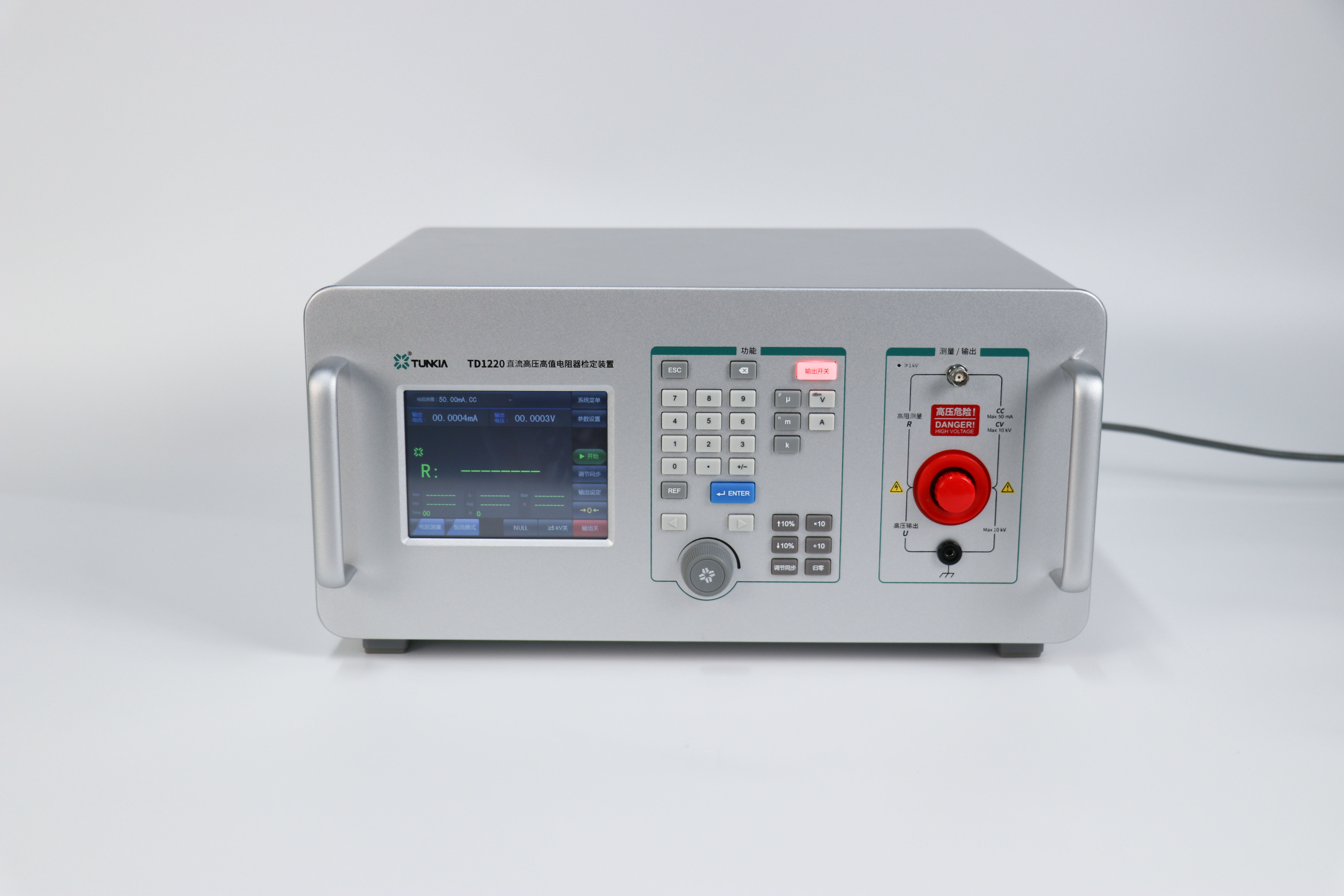

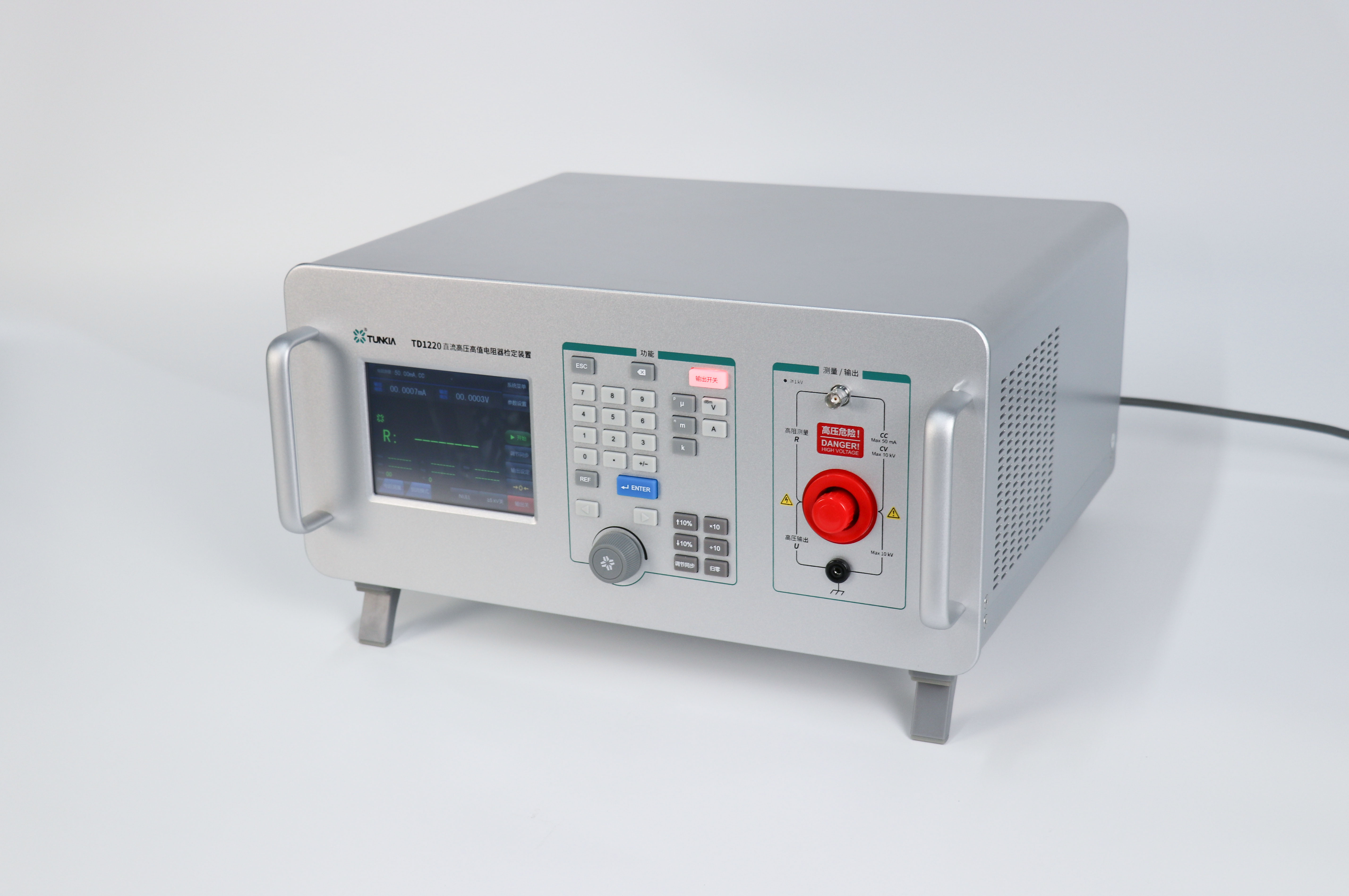

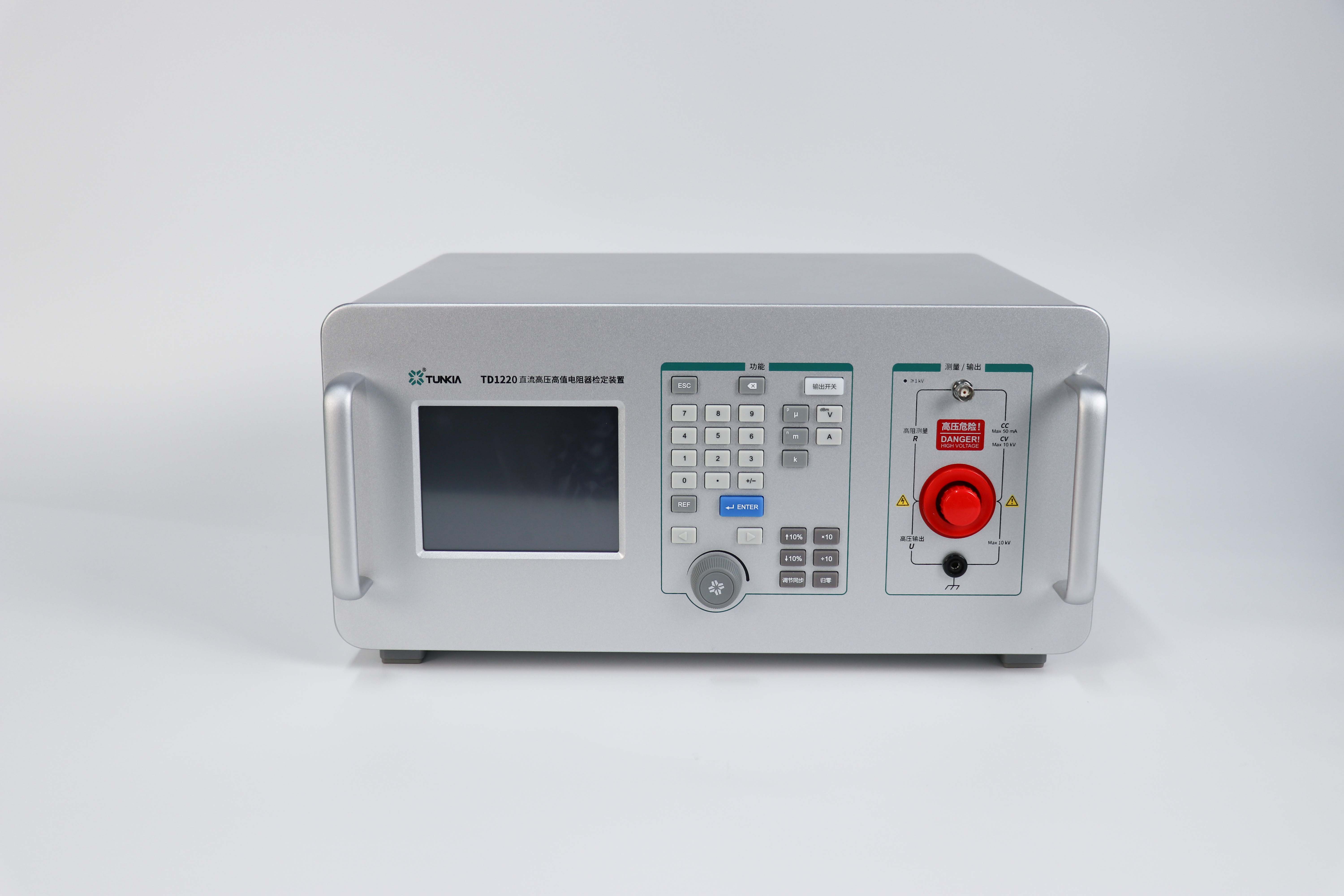

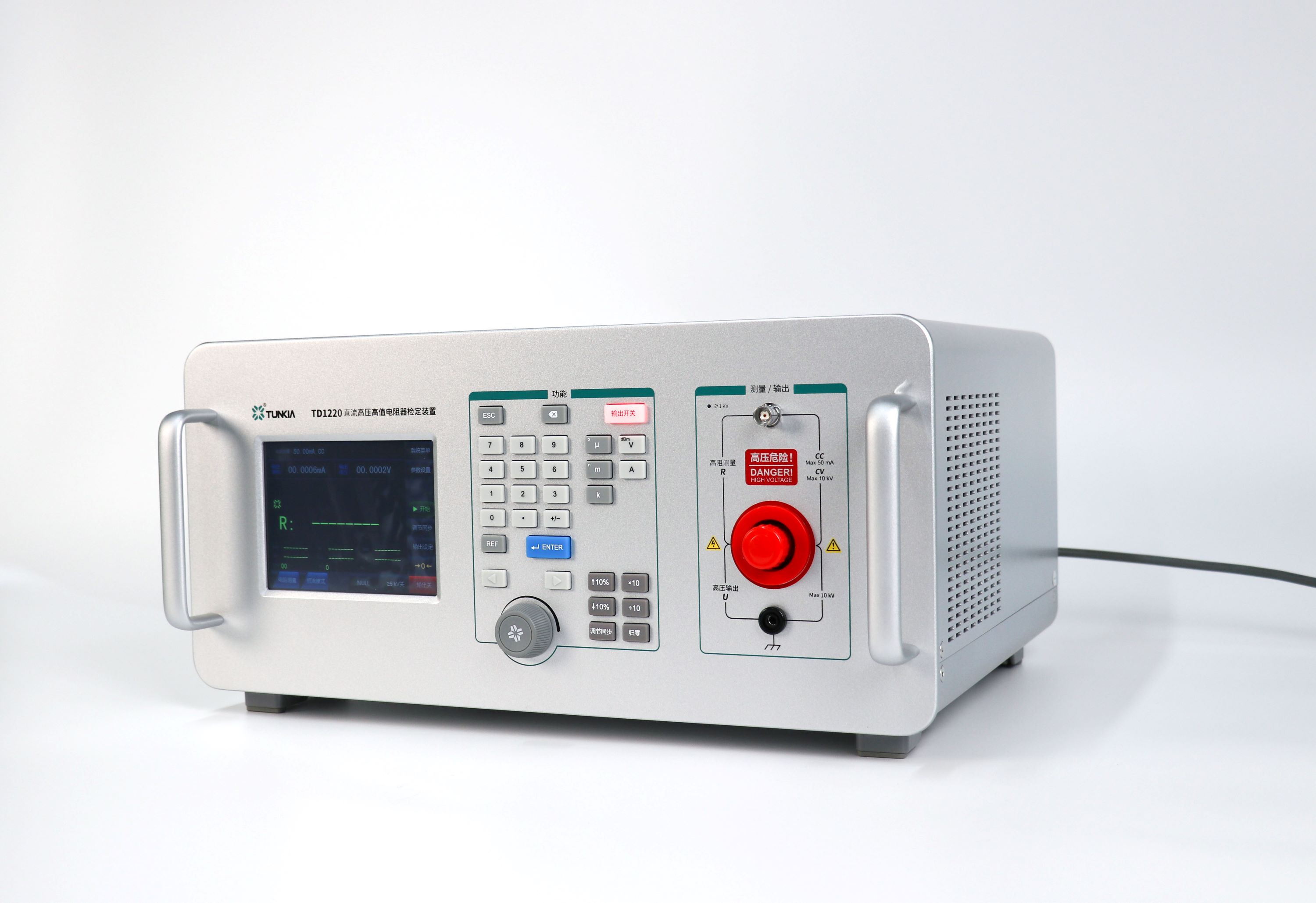

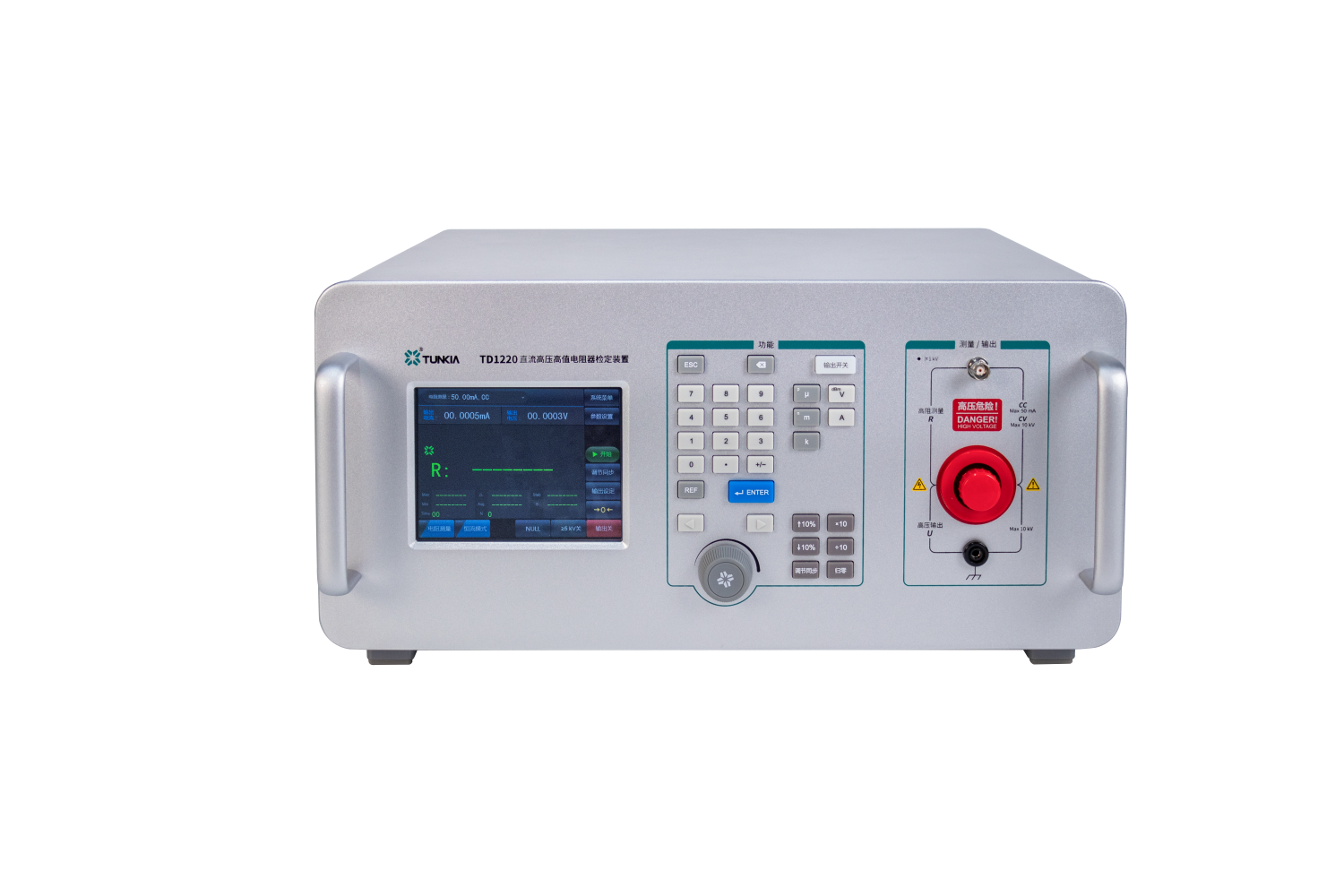

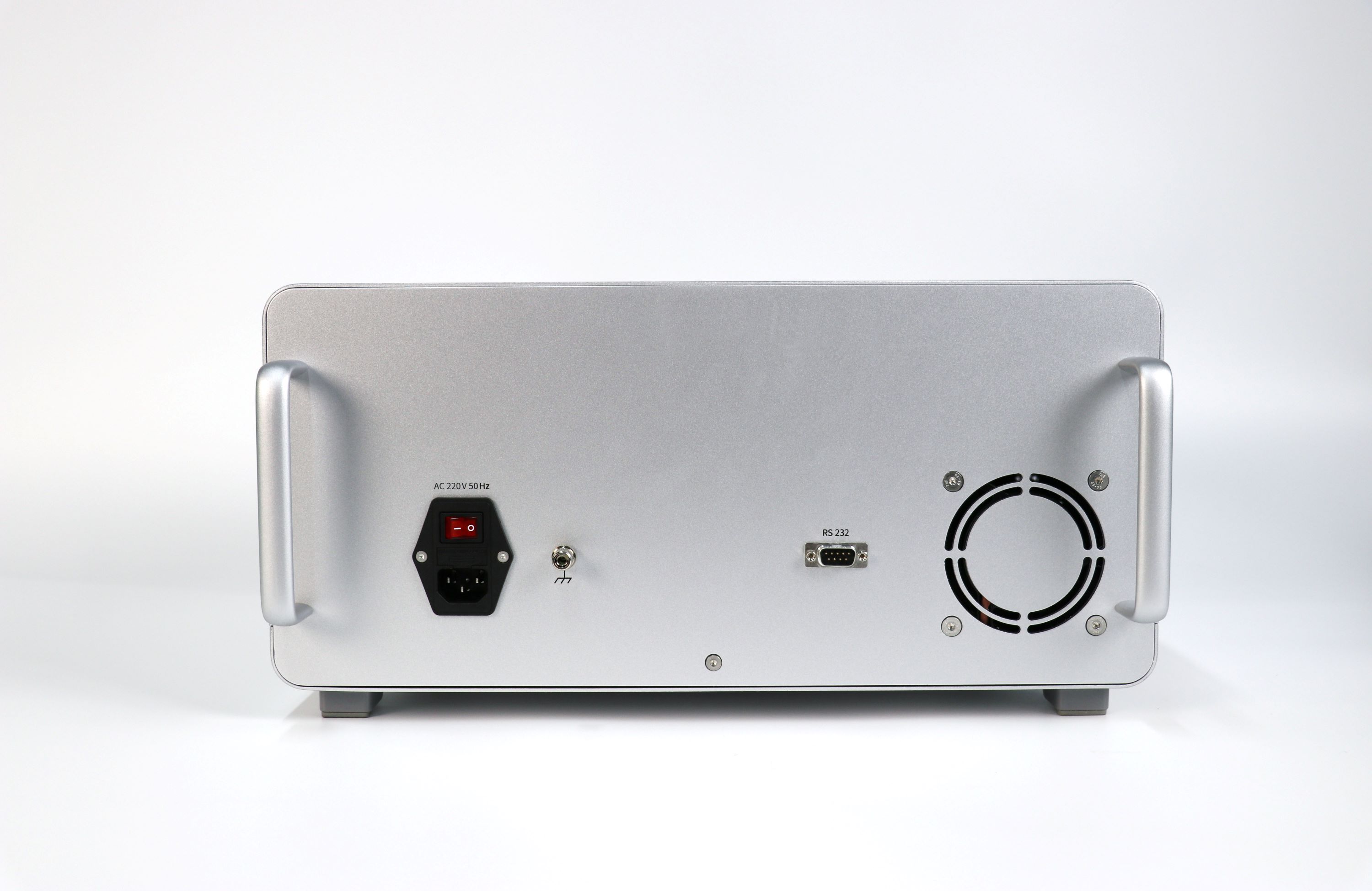

TD1220 Verification Device for DC High Voltage & High Value Resistor

Name: TD1220 Verification Device for DC High Voltage & High Value Resistor
Brand: TUNKIA
SKU: 545073967
Rating: 5.0 (24 reviews)

TD1220 applied to calibrate DC high voltage high and high resistor, high voltage resistance case, DC high voltage meter, insulation resistance tester verification device (MOHM meter verification device) etc.

Features:	DC high voltage output: 0～10 kV DC small current output: 0～50 mA DC resistance measurement: 100 Ω～2 TΩ(10 TΩ option) Accuracy class: 0.03
Availability:

Quantity:



Inquire Add to Basket

Model:
TD1220
Brand:
TUNKIA

TD1220 Verification Device for DC High Voltage & High Value Resistor

1. Summary

2. Features

• DC high voltage output：0～10 kV

• DC small current output：0～50 mA

• DC resistance measurement：100 Ω～2 TΩ(10 TΩ option)

• Accuracy class：0.03

• Constant current source (CC) and constant voltage source (CV) modes

• CV mode: suitable for high resistance measurements

• CC mode: suitable for low resistance measurements

• Excellent electrical isolation and protection

• LCD touch screen.

• Setting output values by keys.

• Test software (option)

3. Applications

TD1220 Verification Device for DC High Voltage & High Value Resistor tunkia

☆ Calibration for DC High Voltage / High Resistance Unit

TD1220 Verification Device for DC High Voltage & High Value Resistor tunkia

• Application 1: With CV and CC two modes to measure the DC resistance in the wide ranges of 100Ω~ 10 TΩ. It can measure the residual resistance, switch contact resistance variation, basic error, voltage variation and other items.

• Application 2: It can directly output 1 V to 10 kV DC voltage for calibrating DC high voltage meter.

• Application 3: With a digital voltmeter, it can calibrate V/V conversion devices such as DC high voltage dividers, high voltage probes, and voltage transformers.
