TD1210 Verification Device for Leakage Current Tester

Name: TD1210 Verification Device for Leakage Current Tester
Brand: TUNKIA
SKU: 592173967
Rating: 5.0 (86 reviews)

TD1210 integrates the DC~1MHz wideband constant current standard source, constant voltage standard source, DC ohmmeter, impedance tester, AC voltage standard meter and others. It’s applied for calibrating conventional leakage current meter, contact current tester, and medical leakage current tester.

Features:	Constant current output：50 μA～55 mA Constant voltage output：30 mV～31 V. Frequency：DC～1 MHz AC voltage input: 0~300 V. LCD touch screen.
Availability:

Quantity:



Inquire Add to Basket

Model:
TD1210
Brand:
TUNKIA

TD1210 Verification Device for Leakage Current Tester

1. Summary

2. Features

• Constant current output：50 μA～55 mA.

• Constant voltage output：30 mV～31 V.

• Frequency：DC～1 MHz

• Sweep frequency test function for measuring network.

• AC voltage input: 0~300 V.

• 1592 Hz small current source for time constant test.

• LCD touch screen.

• Setting output values by keys.

3. Application

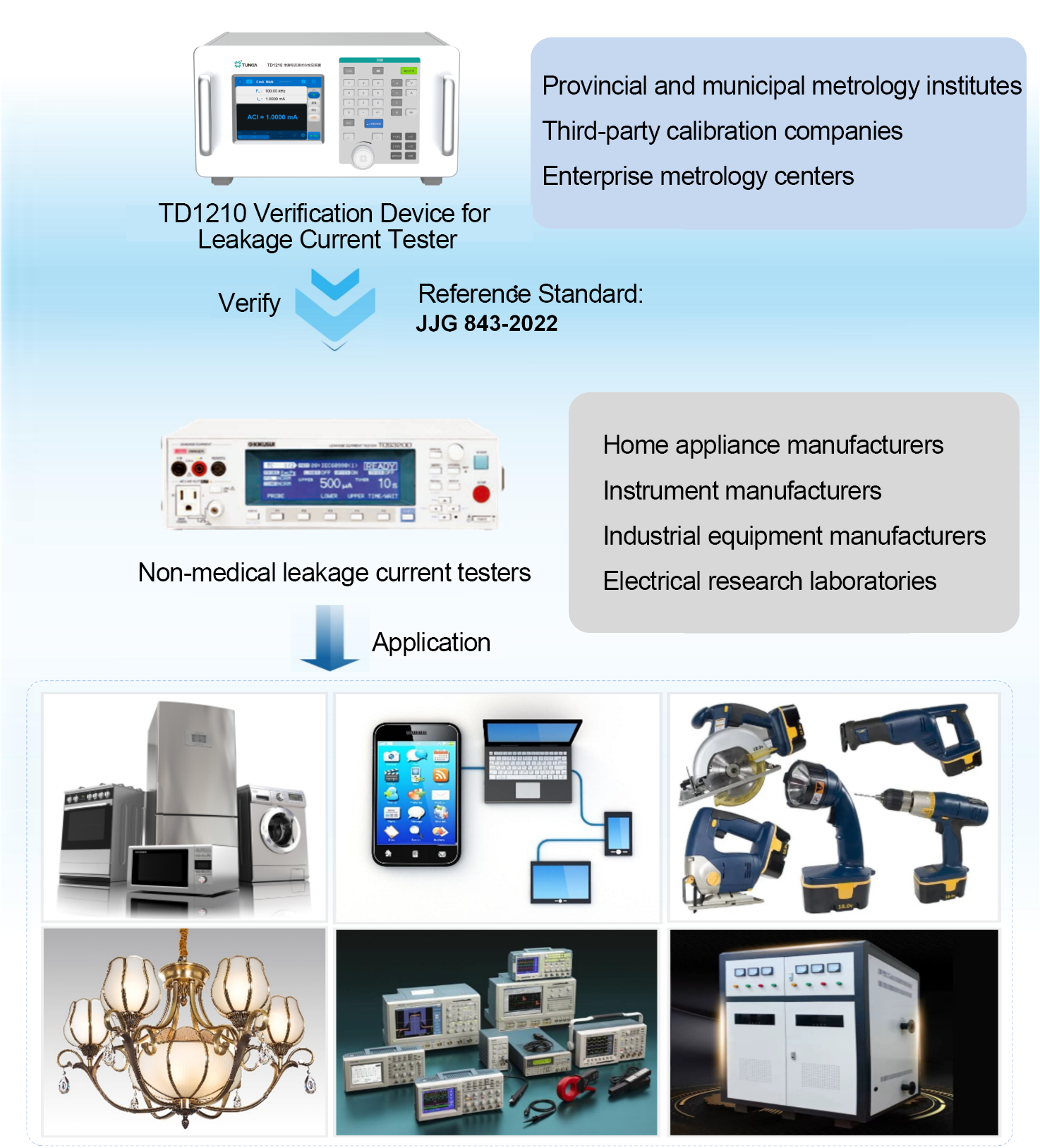

TD1210 Leakage Current Tester Calibration Device TUNKIA

5. Specifications

5.1 Wideband Constant Current Source

Range	Resolution	Frequency ( Hz )	Accuracy *±(%reading + A) [1]**	Max Burden ( V )
500 μA	1 nA	DC	0.05 + 0.25 μ	15
		10 ≤ F≤ 40	0.12 + 0.4 μ	10
		40 < F ≤ 1 k	0.06 + 0.2 μ	10
		1 k < F ≤ 10 k	0.12 + 0.4 μ	10
		10 k < F ≤ 100 k	0.2 + 1 μ	10
		100 k < F ≤ 300 k	0.5 + 2.5 μ	10
		300 k < F ≤ 1 M	1+ 4 μ	10
5 mA	10 nA	DC	0.05 + 2.5 μ	30
		10 ≤ F≤ 40	0.12 + 4 μ	30
		40 < F ≤ 1 k	0.06 + 2 μ	30
		1 k < F ≤ 10 k	0.12 + 4 μ	30
		10 k < F ≤ 100 k	0.2 + 10 μ	30
		100 k < F ≤ 300 k	0.5 + 25 μ	30
		300 k < F ≤ 1 M	1+ 40 μ	30
50 mA	0.1 mA	DC	0.05 + 25 μ	30
		10 ≤ F≤ 40	0.12 + 40 μ	30
		40 < F ≤ 1 k	0.06 + 20 μ	30
		1k < F ≤ 10 k	0.12 + 40 μ	30
		10 k < F ≤ 100 k	0.2 + 100 μ	30
		100 k < F ≤ 300 k	0.5 + 250 μ	30
		300 k < F ≤ 1 M	1 + 400 μ	30

• Output range: 50μA ～ 55 mA, adjustment fineness: 0.01% * range

• Display digits: 5/6 digits available.

5.2 Wideband Constant Voltage Source

Range	Resolution	Frequency ( Hz )	Accuracy *±(% reading + A) [1]**	Maximum burden ( mA )
0.3 V	1 μV	DC	0.06 + 0.04	20
		10 ≤ F ≤ 40	0.12 + 0.08	20
		40 < F ≤ 1 k	0.06 + 0.04	20
		1 k < F ≤ 10 k	0.12 + 0.08	20
		10 k < F ≤ 100 k	0.2 + 0.1	20
		100 k < F ≤ 300 k	0.5 + 0.2	20
		300 k < F ≤ 1 M	1 + 0.5	20
3 V	10 μV	DC	0.06 + 0.04	50
		10 ≤ F ≤ 40	0.12 + 0.08	50
		40 < F ≤ 1 k	0.06 + 0.04	50
		1 k < F ≤ 10 k	0.12 + 0.08	50
		10 k < F ≤ 100 k	0.2 + 0.1	50
		100 k < F ≤ 300 k	0.5 + 0.2	50
		300 k < F ≤ 1 M	1 + 0.5	50
30 V	0.1 mV	DC	0.06 + 0.04	50
		10 ≤ F ≤ 40	0.12 + 0.08	50
		40 < F ≤ 1 k	0.06 + 0.04	50
		1 k < F ≤ 10 k	0.12 + 0.08	50
		10 k < F ≤ 100 k	0.2 + 0.1	50
		100 k < F ≤ 300 k	0.5 + 0.2	50
		300 k < F ≤ 1 M	1 + 0.5	50

• Output range: 30 mV ～ 31 V, adjustment fineness: 0.01% * range;

• Display digits: 5/6 digits available.

5.3 Other Functions

AC Voltage Measurement	Range	30 V～300 V
	Accuracy	± (0.06%reading + 0.04%range)
	THD	< 1%
DC Resistance Measurement	Range	100 Ω～2.5 kΩ
	Accuracy	± 0.2%
	Test Current	5 mA
Input Impedance Measurement	Accuracy	± 1% @ 10 Hz～100kHz
Input Impedance Measurement	Accuracy	± 2% @ 100 kHz～1MHz
Time Constant Measurement	Test Frequency	1592 Hz
	Accuracy	± 2 μs
	Test Current	5 mA

6. General Specifications

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Temperature Performance	Working temperature：0℃~45℃; Storage temperature：-20℃~70℃
Humidity Performance	Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃ Storage humidity：(20%~80%) R·H，non-condensing
Interface	RS232
