TK4960 DC Charging-Power Calibration Adapter

TK4960 is an interface adapter equipped with two DC charging sockets that comply with the requirements of National Standard GB/T 20234.3-2015Connection set for conductive charging of electric vehicles”.Suitable for metrology laboratories to use existing high precision DC standard power sources to calibrate non-vehicle DC charger testers, such as TUNKIA TD1320, TK4810 or similar equipment from other manufacturers.

  • TK4960

  • TUNKIA

Availability:

TK4960 DC Charging-Power Calibration Adapter

TK4960 DC Charging-Power Calibration Adapter 1


1. Summary of TK4960 DC Charging-Power Calibration Adapter

TK4960 is an interface adapter equipped with two DC charging sockets, which is suitable for metrology laboratories to use existing high precision DC standard power sources to calibrate non-vehicle DC charger testers, such as TUNKIA TD1320,  or similar equipment from other manufacturers.


2.Application of TK4960 DC Charging-Power Calibration Adapter

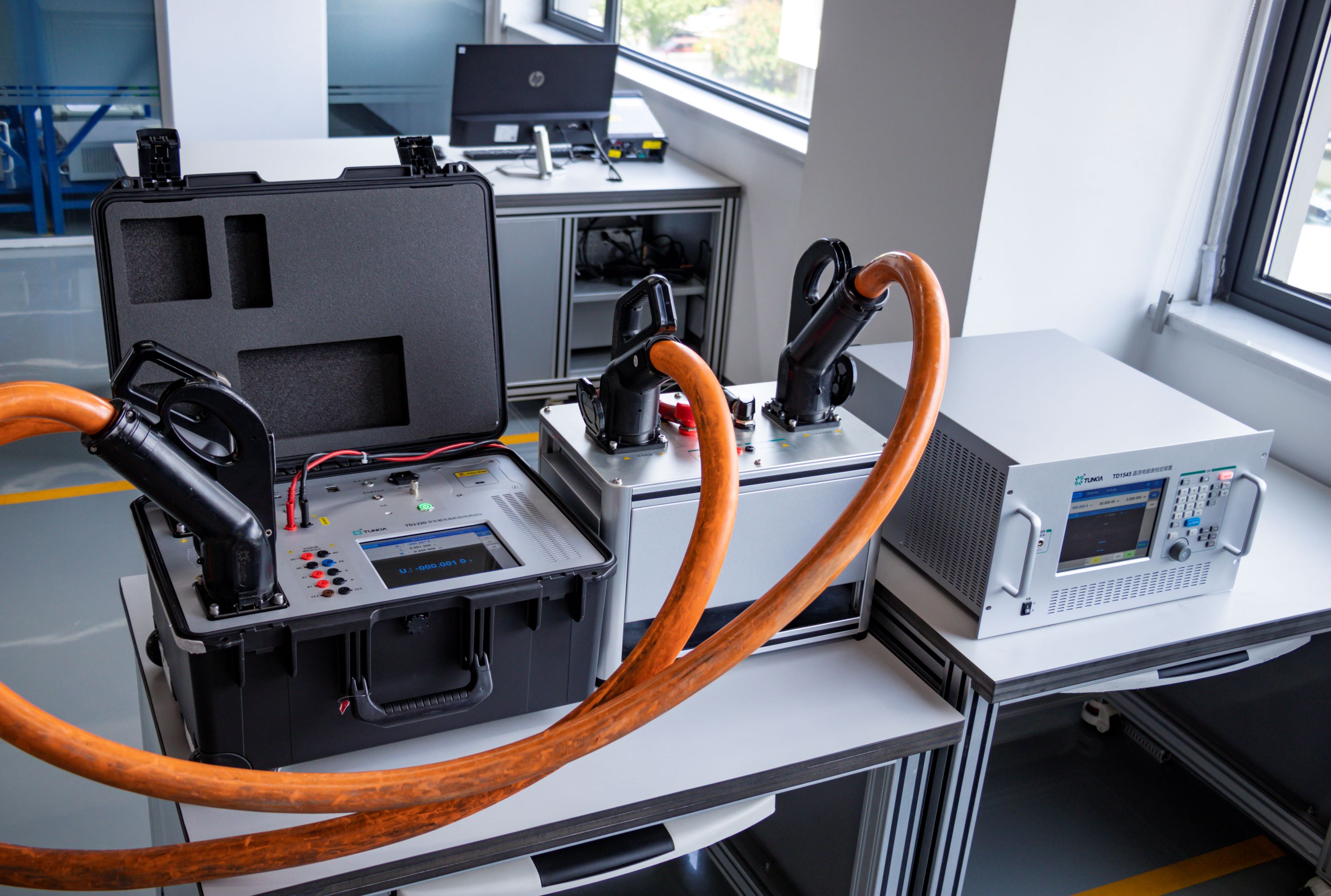

TK4960 DC Charging-Power Calibration Adapter Application

3.Specifications of TK4960 DC Charging-Power Calibration Adapter

Working Current

Rated Working Current: 250 A

Insulation Resistance

500 MΩ @1000V DC( at room temperature)

Insulation Withstand Voltage

DC+, DC- and PE > 2500V AC;DC+ and DC- > 2500V AC


4. General Specifications of TK4960 DC Charging-Power Calibration Adapter

Power Supply

——

Temperature Performance

Working Temperature:-30°C~50°C;

Storage Temperature:-30°C~70°C

Humidity Performance

Operating Humidity:< 80% @ 30°C,< 70% @ 40°C,< 40% @ 50°C

Storage Humidity:<80% R·H,non-condensing

Altitude

< 3000 m

Device Mass

About 10 kg

Size

375 mm (Width) × 265 mm (Depth) × 270 mm (Height)

TK4960 DC Charging-Power Calibration Adapter size

Communication Interface

——
