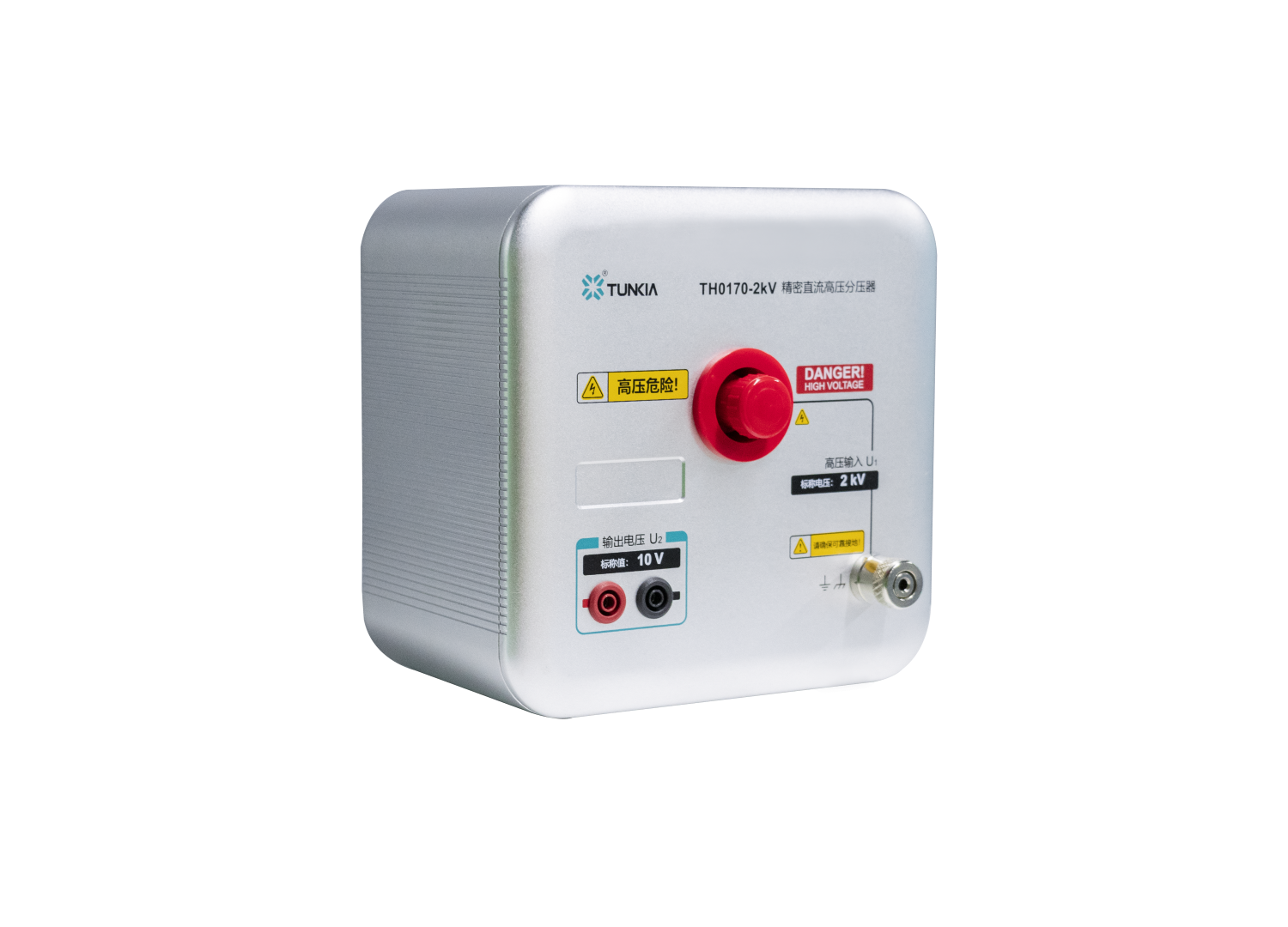

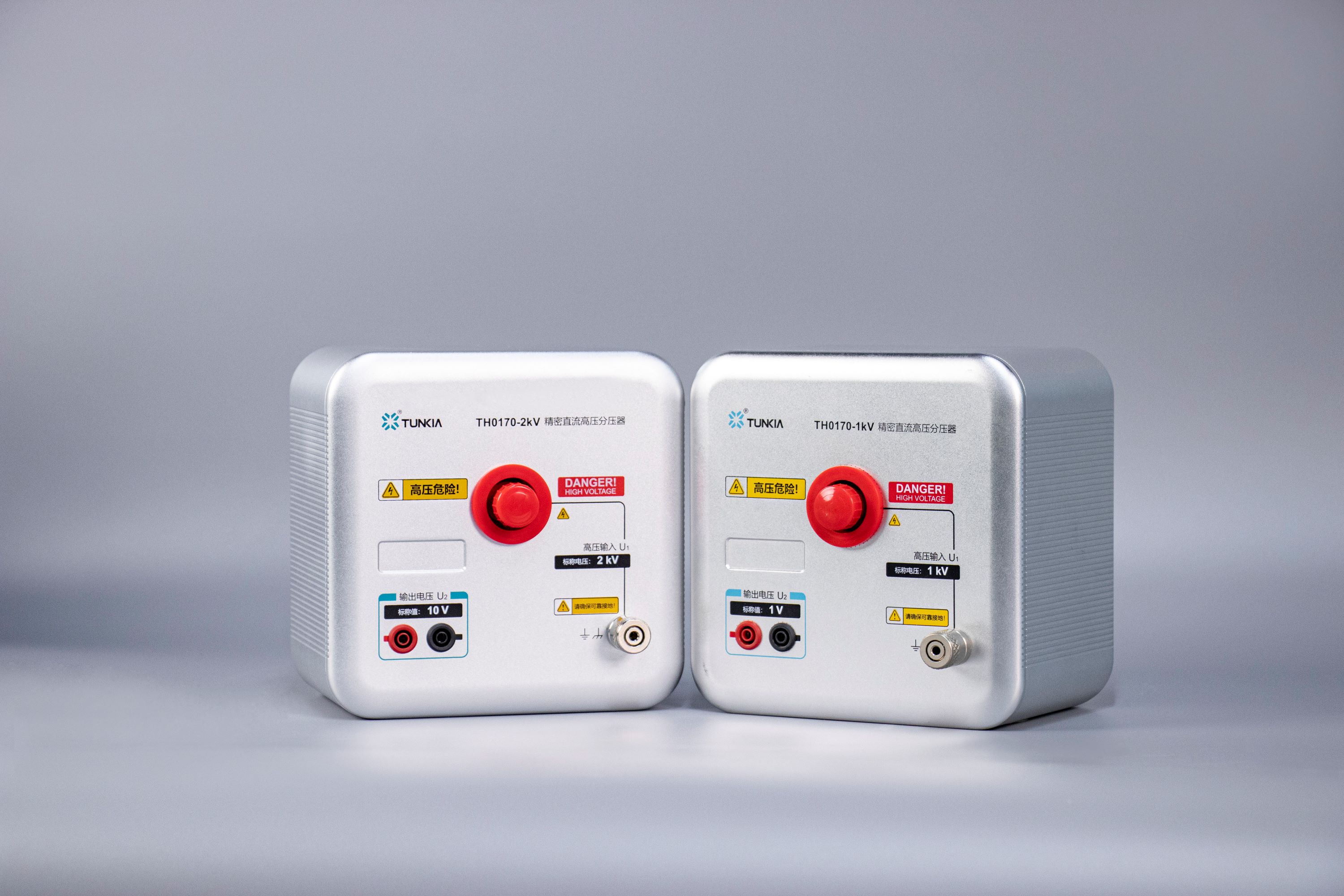

TUNKIA TH0170 Precision DC High Voltage Divider

Share to:

TH0170 Precision DC High Voltage Divider

TH0170 is a series of six precision DC high voltage dividers with different range specifications, which can convert DC high voltage to 10 V voltage output. Can be matched with high precision digital voltmeter to test DC, suitable for the power industry and metering laboratory to DC high voltage source/meter calibration, testing.

Availability:

Quantity:



Inquire Add to Basket

Model:
TH0170
Brand:
TUNKIA

TH0170 Precision DC High Voltage Divider

1. Summary

TH0170 is a series of six precision DC high voltage dividers with different range specifications, which can convert DC high voltage to 10 V voltage output. Can be matched with high precision digital voltmeter to test DC, suitable for the power industry and metering laboratory to DC high voltage source/meter calibration, testing.

2. Features

• Nominal input range: 1 kV~50 kV six specifications.

• Nominal voltage output: 10 V.

• Optimal proportional measurement uncertainty is up to 30 ppm.

3. Applications

• Establish DC high voltage measurement and control system

• Build precision DC high voltage test power supply

• Establish DC high voltage calibration system

• Calibrate DC high voltage source/meter, high voltage V/V conversion equipment

• Build DC high voltage and high current power/energy measurement system

☆ Build DC high Voltage Measurement and Control System

DC high voltage measurement and control system by using TH0170 Precision DC High Voltage Divider

Build precision DC high voltage test power supply by using TH0170 Precision DC High Voltage Divider

• With precision voltmeter, set up DC high voltage test system, measure and control the high voltage output in the power system.

• With DC high voltage source, precision voltmeter, computer software, set up precision DC high voltage test power supply.

☆ Calibrating Wide Frequency Voltage Source / Voltmeter.

DC high voltage Source Calibration by using TH0170 Precision DC High Voltage Divider

DC high voltage meter Calibration by using TH0170 Precision DC High Voltage Divider

• With high precision voltmeter, measuring DC high voltage source;

• Calibrate DC high voltage source and DC high voltmeter.

☆ Calibrate DC High Voltage V/V Conversion Equipment

Calibrate DC high voltage dividers, transformers, sensors, high voltage probes and other V/V conversion equipment using TH0170 Precision DC High Voltage Divider

• Calibrate DC high voltage dividers, transformers, sensors, high voltage probes and other V/V conversion equipment.

☆ Build DC High Voltage and High Current Power/Energy Measurement System

Build DC High Voltage and High Current Power/Energy Measurement System using TH0170 Precision DC High Voltage Divider

• With high-current I/V or I/I conversion equipment (such as TH0500), standard power watt-hour meter (such as TD1310 AC-DC standard meter, TH2000 vector voltage analyzer), to build a high-voltage and high-current power/energy measurement system. Measure the output power of the power supply, conversion efficiency of the power conversion device, high-voltage current power source, and power meter.

TH0110 Programmable DC Voltage Reference Standard

TH0150 Wideband Voltage Divider

TH0180 Precision AC DC High Voltage Divider

TH0195 AC/DC Voltage Measuring Standard

TH0190 Handheld Precision Voltmeter

Specification	Nominal input voltage ( KV )	Maximum input voltage ( KV )	Nominal output voltage ( V )	Proportional uncertainty ( k=2, ppm )
TH0170-1k	1	1.1	10	30
TH0170-2k	2	2.2	10	30
TH0170-5k	5	5.5	10	50
TH0170-10k	10	11	10	50
TH0170-20k	20	22	10	50
TH0170-50k	50	55	10	60

Specification	Input resistance ( MΩ )	Output resistance ( kΩ )	Temperature coefficient ( ppm/K )	Voltage influence factor ( ppb/V )
TH0170-1k	10	100	2	10
TH0170-2k	20	100	2	5
TH0170-5k	50	100	2	4
TH0170-10k	200	200	5	2
TH0170-20k	400	200	5	1
TH0170-50k	800	160	5	0.5

Power supply	——
Warm up time	30 minutes
Temperature performance	Operating temperature: 5°C ~ 40°C; Storage temperature: -10°C to 55°C Note: When stored in a harsh temperature environment, the resistance value may change temporarily and be restored to the original resistance value within the following 30 days.
Humidity performance	Working humidity :(30%-70%) R·H, no condensation Storage humidity :(20% ~ 80%) R·H, no condensation
Connection mode	The input connection adopts high pressure socket, and the output connection adopts a pair of ф 4 mm female socket.

Specification	*Size (mm) (W D * H) (excluding terminals)**	Weight ( kg )	Size chart
TH0170-1k TH0170-2k TH0170-5k TH0170-10k	180 x 180 x 120	2
TH0170-20k	430 x 320 x 250	13.5
TH0170-50k	430 x 320 x 300	16

Specification	Nominal input voltage ( KV )	Maximum input voltage ( KV )	Nominal output voltage ( V )	Proportional uncertainty ( k=2, ppm )
TH0170-1k	1	1.1	10	30
TH0170-2k	2	2.2	10	30
TH0170-5k	5	5.5	10	50
TH0170-10k	10	11	10	50
TH0170-20k	20	22	10	50
TH0170-50k	50	55	10	60

TH0170 Precision DC High Voltage Divider

TH0170 Precision DC High Voltage Divider

TH0170 Precision DC High Voltage Divider
