TUNKIA TD7200 Calibrator for Electrosurgical Unit Analyzer

Share to:

TD7200 Calibrator for Electrosurgical Unit Analyzer

TD7200 is an instrument applied to calibrate commercial high-frequency electrosurgical unit analyzer, which can simulate high-frequency electrosurgical generator to accurately output high-frequency voltage, current, power and other electrical parameters to achieve the calibration of high-frequency electrosurgical equipment tester.

Availability:

Quantity:



Inquire Add to Basket

Model:
TD7200
Brand:
TUNKIA

TD7200 Calibrator for Electrosurgical Unit Analyzers

1. Summary

TD7200 is an instrument applied to calibrate commercial electrosurgical unit analyzers, which can simulate high-frequency electrosurgical generator to accurately output high-frequency voltage, current, power and other electrical parameters.

2. Features

• High frequency voltage output: 10 V to 550 V

• High frequency current output: 100 mA to 3.3 A

• Frequency: 50 kHz～1 MHz

• Display multiple electrical quantities such as voltage, current, and power at the same time.

• Integrated design of meter and source

• Good electrical protection and high reliability.

• LCD touch screen, with physical buttons

• Interface: RS232, USB, LAN.

3. Applications

• Manufacturer of high-frequency electrosurgical equipment tester

• Metrological calibration department

☆ Calibrate High-Frequency Electrosurgical Analyzer

• High frequency voltage output (50 kHz to 500 kHz): 10 V to 550 V

• High frequency current output (50 kHz to 500 kHz): 100 mA to 3.3 A

• The leakage current and power of the high-frequency electrosurgical analyzer can be calibrated in constant voltage source mode, and test linearity and frequency response.

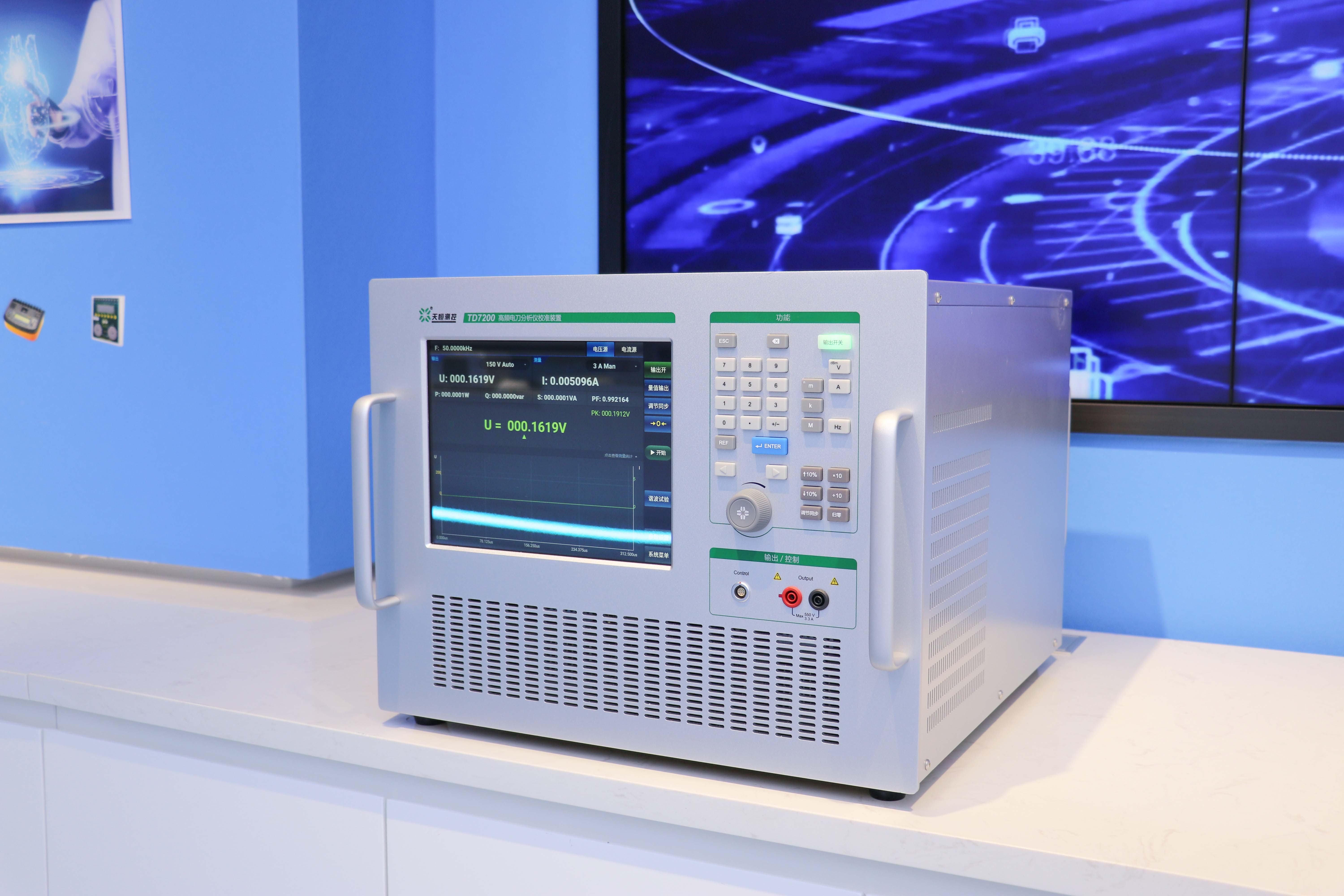

4. Instrument Appearance

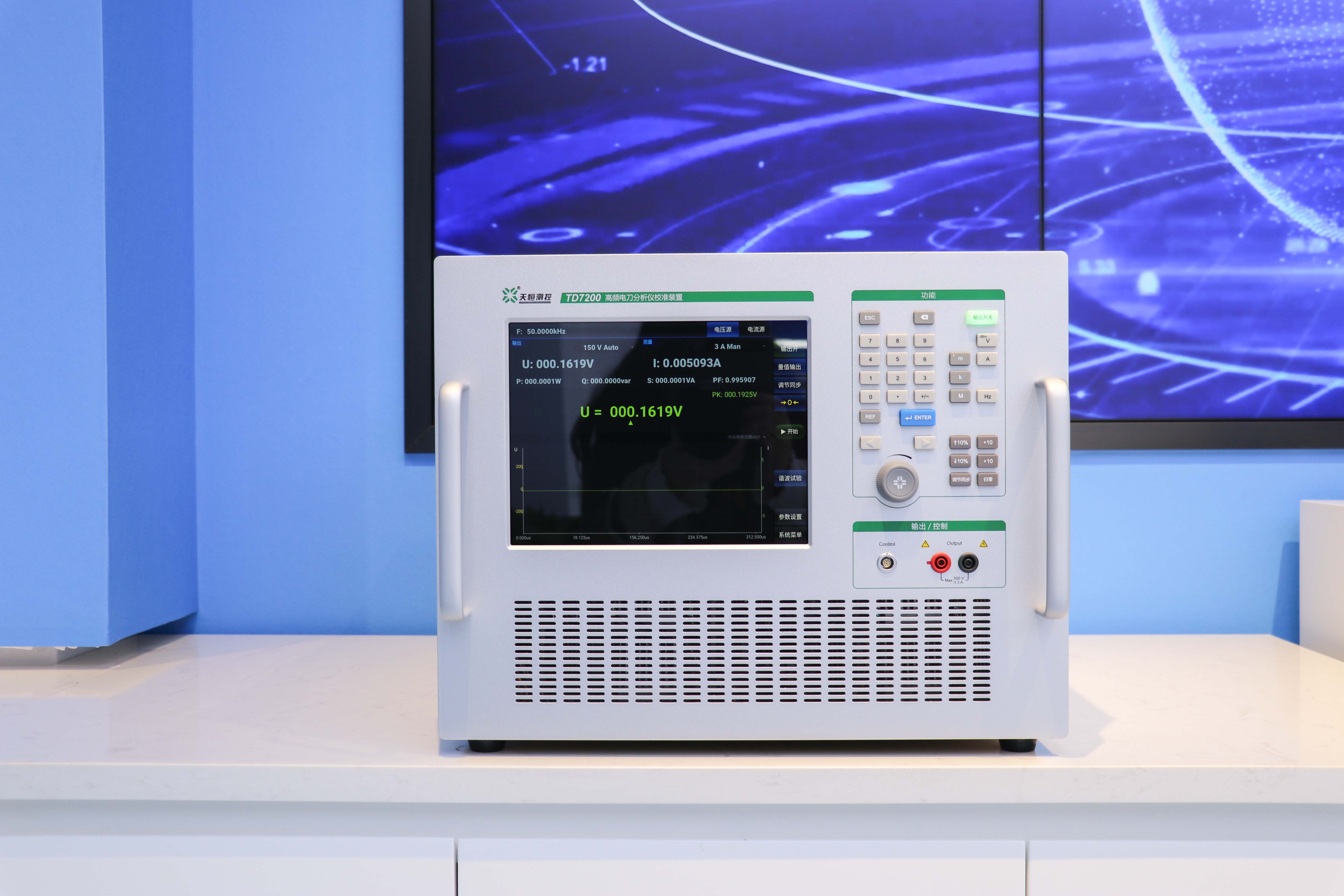

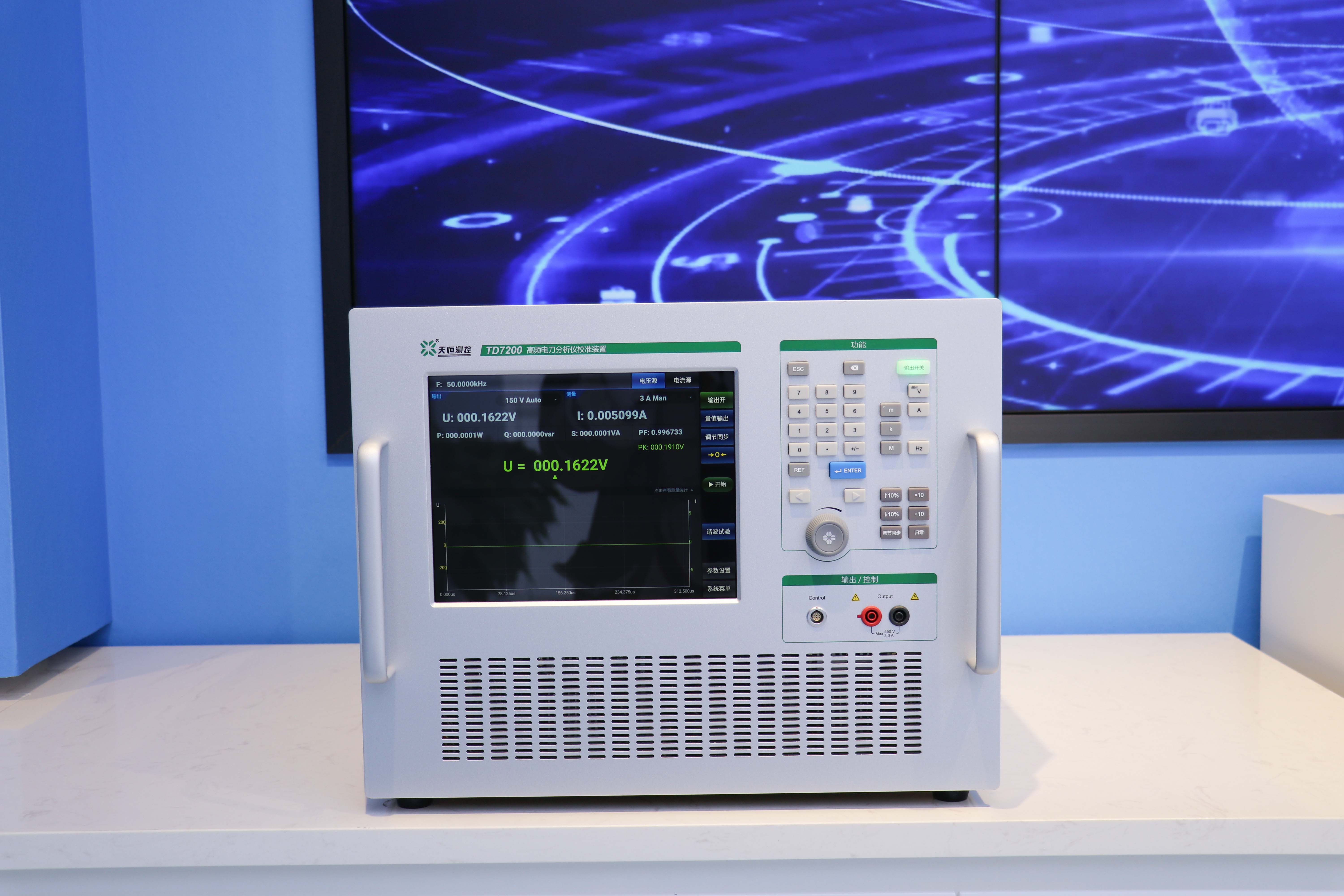

☆ Front Panel

S/N	Function
	Handle: convenient to carry the instrument.
	LCD Touch Color Screen: intuitive display of multiple electrical parameters and full touch operation, greatly improving the ease of use of the instrument.
	Button Operation Panel: a variety of value input/adjustment modes greatly improve the operational convenience of the instrument.
	Output Terminals: including double banana jack output terminals and 10-core Remo feedback control terminals
	Special Junction Box: used with the host during testing.

☆ Rear Panel

S/N	Function
	LAN Interface: realizes communication with computer and establishes a fully automatic test system.
	USB Interface: reserved, expandable data export function.
	RS232 Communication Interface: realizes communication with computer and establishes a fully automatic test system.
	Power Interface: AC 220V power input interface with switch and fuse
	Fan Heat Dissipation Outlet: The fan heat dissipation outlet inside the device ensures the stable operation of internal components.
	Chassis Ground: Before using the equipment, make sure that the chassis ground is reliably grounded.

5. Characteristics

☆ Ease of Operation

• Large LCD Screen: full color, high screen brightness, clear picture quality, supports touch operation, comprehensive functions, simple and fast.

• Programmable buttons: A variety of input methods such as fixed-point output, digital knobs, and step adjustment can be realized, and the operation is fast.

Advantage: This combined operation method effectively improves the convenience of operation to adapt to diverse application scenarios.

☆ Multiple Output Mode

• “Direct output”mode，User can set output value by physical key or touch screen.

• “Rotary Knob”mode，User can setting in clockwise direction or anticlockwise direction.

TD1880 Precision Multifunction Calibrator

TD7300 Calibrator for Defibrillator Analyzers

Test Items	Output Range	Accuracy	Frequency (Hz)	Max Load (Ω)
High Frequency Power Linearity	10 W～400 W	1%	300k～500k	200～500
High Frequency Power Frequency Response	100 W～400 W	1%	100k～1M	300
High Frequency Leakage Current Linearity	0～300 mA	0.5%	300k～500k	200
High Frequency Leakage Current Line Frequency Response	100 mA	0.5%	100k～1M	200
Vrms	>200 V	0.5%	300k～500k	200～500
Vpk	>200 V	5%	Loading at 300kHz～500kHz (1~2) MHz high frequency harmonic modulation	200～500

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Warm-up Time	30 minutes
Maximum Power Consumption	2500 VA
Temperature Performance	Working temperature: 0°C~45°C； Storage temperature: -20°C~70°C
Humidity Performance	Working humidity: < 80% @ 30°C，< 70% @ 40°C, < 40% @ 50°C Storage humidity: (20%~80%) R·H，non-condensing
Altitude	< 3000 m
Weight	About 25 kg
Interface	RS232、USB、LAN
Dimensions	450 mm (W) x 460 mm (D) x 360 mm (H) (Excluding handles and feet)
Dimensions

S/N	Picture	Name	Specification	Quantity	Note
1		Special Junction Box	Wiring Adapter for DUT	1	Standard configuration
2		Test Leads	10-core Remo Bimetal plug	1	Standard configuration
3		Test Leads	4530_C-BNC Male-Double Banana Plug	1	Standard configuration
4		Test Leads	3957-BNC Male-Double Banana Plug	1	Standard configuration
5		Power Cable	AC 220V、10A	1	Standard configuration
6		Glass Fuse	F12A-250V	3	Standard configuration

Test Items	Output Range	Accuracy	Frequency (Hz)	Max Load (Ω)
High Frequency Power Linearity	10 W～400 W	1%	300k～500k	200～500
High Frequency Power Frequency Response	100 W～400 W	1%	100k～1M	300
High Frequency Leakage Current Linearity	0～300 mA	0.5%	300k～500k	200
High Frequency Leakage Current Line Frequency Response	100 mA	0.5%	100k～1M	200
Vrms	>200 V	0.5%	300k～500k	200～500
Vpk	>200 V	5%	Loading at 300kHz～500kHz (1~2) MHz high frequency harmonic modulation	200～500

Power Supply	AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Warm-up Time	30 minutes
Maximum Power Consumption	2500 VA
Temperature Performance	Working temperature: 0°C~45°C； Storage temperature: -20°C~70°C
Humidity Performance	Working humidity: < 80% @ 30°C，< 70% @ 40°C, < 40% @ 50°C Storage humidity: (20%~80%) R·H，non-condensing
Altitude	< 3000 m
Weight	About 25 kg
Interface	RS232、USB、LAN
Dimensions	450 mm (W) x 460 mm (D) x 360 mm (H) (Excluding handles and feet)
Dimensions

TD7200 Calibrator for Electrosurgical Unit Analyzer
